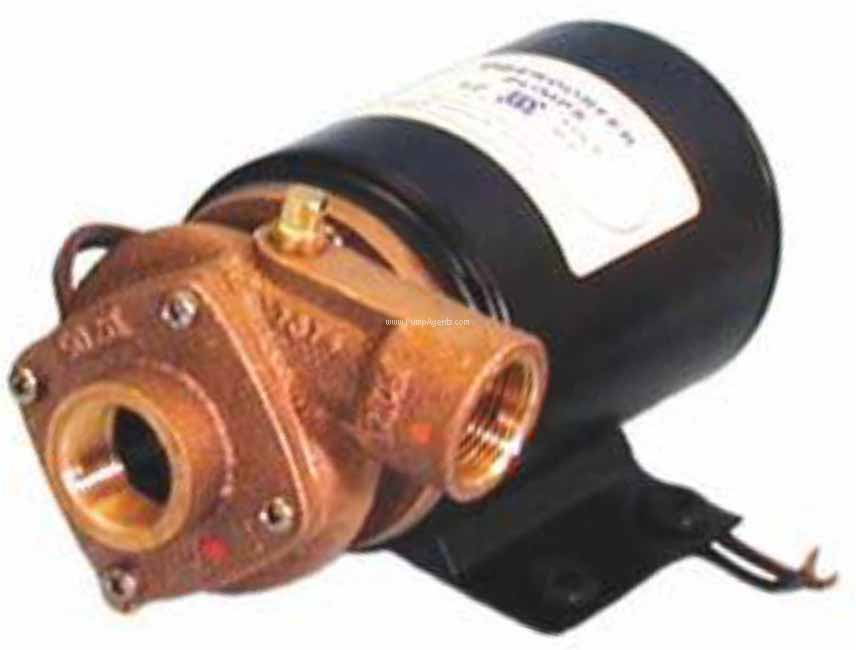

Oberdorfer 172B-08A82 Centrifugal Pump and motor unit
Oberdorfer # 172B-08A82
Oberdorfer catalog # 172B-08A82, Bronze Centrifugal Pump and motor unit, Bronze construction, Bronze impeller, Viton Mechanical Seal. Inlet Port is 3/4 Inch NPT Inlet, Discharge Port is 3/4 Inch NPT Outlet. This unit is close coupled to a 1/10 HP, 3700 RPM, 24V DC, TENV Motor.
Price : $ 1017.27
Product Information :
Parts Page (click here)The Oberdorfer 172B-08A82 is a Bronze Centrifugal Pump and motor unit, with Bronze Impeller, Viton Mechanical Seal, 3/4 Inch NPT Inlet by 3/4 Inch NPT Outlet Ports, and is close coupled to a 1/10 HP, 3700 RPM, 24V DC, TENV Motor. This long-life centrifugal pump delivers high flows up to 13 GPM with a maximum pressure of 7 psi. The pump uses a mechanical type shaft seal with a Viton rubber element. It is suitable for water, oils, and some mild solvents and is limited to 400 degrees F. Liquid enters at the center and is thrown outward radially by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient pumping action. Consequently, a relief valve is not required. This centrifugal circulation pump is designed for reliability and ease of use, and is the correct product for closed-circuit circulation systems, such as livewell circulation, washdown, central heating and other flooded suction applications. This pump is ideal for hot water circulation duties such as engine cooling and central heating systems. This pump is not self-priming. It must be installed below the liquid level so that the liquid flows to the pump by gravity (flooded suction). The pump can be mounted on any flat surface, and must be installed below the lowest fluid level to maintain flooded suction. The flow of these pumps can be conveniently controlled by a throttling valve in the discharge line. Horsepower demand will decrease as the pressure increases. Maximum horsepower occurs with a wide open discharge.
Parts and Accessories for Oberdorfer model 172B-08A82
Major Overhaul Kit / Rebuild Kit :
Catalog # 12004, Repair Kit, includes O-Ring, Impeller, Set Screw, Seal Assembly
Price: $ 232.50
Impeller :
Catalog # 7678, Impeller
Price: $ 136.00
Shaft Seal :
Catalog # 8174, SEAL HEAD 142/144
Price: $ 67.62
Motor :
Catalog # 8281, Electric Motor, motor only, 1/8 Horsepower, 1PH, 115 Volts, 3450 RPM, TEFC Enclosure
Price: $ 1572.19
Motor :
Catalog # 9949, Electric Motor, motor only, 1/10 Horsepower, 24 Volts DC, 3700 RPM, TEFC Enclosure
Price: $ 610.00
Applications
There are many applications that the Oberdorfer 172B-08A82 are used in. Typical applications are Marine Air Conditioning, Engine Block Temperature Control, Radiator and Heat Exchanger Circulation Baitwell Circulation, as well as circulation applications such as hot and cold water systems, windscreen washing, livewell and bait tank systems and liquid transfer. These circulation pumps can be used in low pressure circulation applications such as marine central heating systems where they can be used to circulate heated coolant water heater from an engines re-circulating fresh water system through radiators in the vessel living spaces. One of the outstanding features of this pump and motor unit is its compact size. Although small, adequate motor power is available for pumping water, water solutions, and a wide range of commercial chemicals. Viscous liquids with a maximum viscosity of 2000 Saybolt Seconds Universal can be pumped. However, when pumping viscous liquids (as compared with water) a reduction in flow and pressure occurs and the required horsepower increases. Liquids heavier than water require additional horsepower in direct proportion to the increase in specific gravity. To connect the pump to piping use 3/4 inch pipe fittings with PTFE pipe joint tape or compound.
