Oberdorfer Pump # 172B-08A82 Parts Order page( Click Here for the Oberdorfer Pump # 172B-08A82 Product Page ) |
|

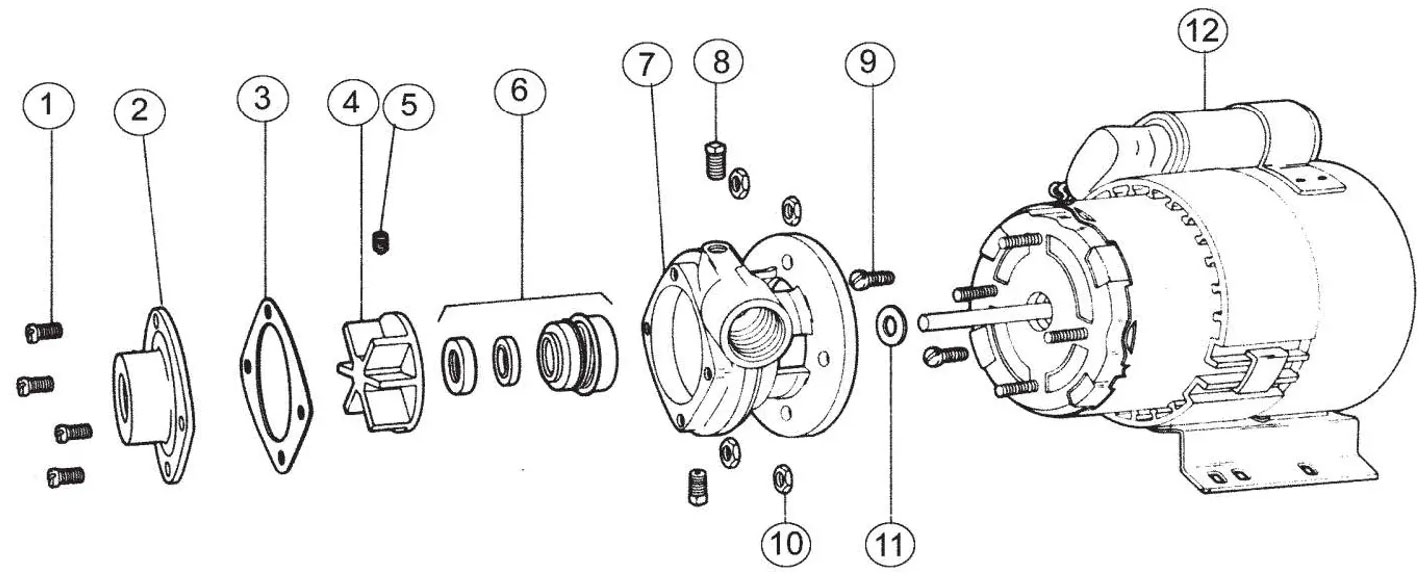

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Oberdorfer Pump model # 172B-08A82 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT | # 12004 | Repair Kit - includes O-Ring, Impeller, Set Screw, Seal Assembly | $232.50 | 0 in Stock | 1 | ||
| MOT | # 9949 | Electric Motor A82, 1/10 HP, 3700 RPM, 24V DC, TENV | $610.00 | 2 in Stock | 1 | ||
| 1 | # 5385 | Screw | $4.72 | 34 in Stock | 4 | ||
| 3 | # 9797-033 | O-Ring | $4.72 | 15 in Stock | 1 | ||
| 4 | # 7678 | Impeller | $136.00 | 0 in Stock | 1 | ||
| 5 | # 6079 | Set Screw | $36.58 | 6 in Stock | 1 | ||
| 6 | # 8174 | Seal Assembly | $67.62 | 1 in Stock | 1 | ||
| 8 | # 5395 | Plug | $3.12 | 2 in Stock | 2 | ||
| 11 | # 6651 | Slinger | $4.72 | 5 in Stock | 1 | ||
| 10a | # 7686 | Hex Nut | $18.64 | 39 in Stock | 4 | ||
| 10b | # 5656 | Lockwasher | $4.79 | 0 in Stock | 4 | ||
| 12 | # 8281 | Motor | $1572.19 | 0 in Stock | 1 | ||
