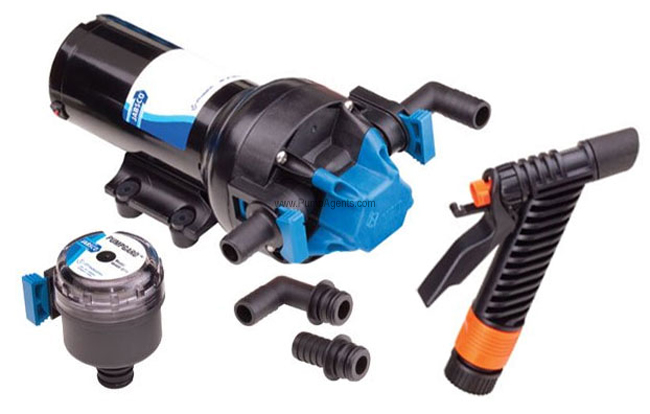

Jabsco catalog # 82505-0392, Hotshot 5 GPM Washdown Pump and Motor unit. Santoprene Diaphragm. EPDM Check Valves. Pump is Coupled to a 12 Volt DC Motor. Rated for 70 PSI Maximum Pressure. Ports are 3/4 Inch Hose Barb.
Price : $ 212.70
The Jabsco 82505-0392 is a Hotshot series 5 GPM washdown pump with a Santoprene Diaphragm, EPDM Check Valves, 3/4 Inch Hose Barb Ports, coupled to a 12 Volt DC Motor. Maximum Flow Rate 5.0 GPM (19 LPM). Maximum Pressure 70 PSI (3.3 Bar). Duty Cycle Intermittent. These washdown pumps supply a massive 70 psi (4.8 bar) of pressure for ultra-effective deck and anchor cleaning. Robust five chamber, sealed switches, patented co-injected molded diaphragm and larger heavy-duty motor brushes significantly extend pump life by up to 50 percent . The HotShot Series 5.0 GPM Washdown Pumps are self-priming up to 10 feet (3m). All models are supplied with Pumpgard strainers and trigger nozzles. Washdown pumps are a development of our Water Pressure System Pumps. Higher shut-off pressure switches prevent on/off cycling while salt water compatible trigger nozzles let you blast off mud and dirt and then rinse down.
Do not pump liquids With a flash point below 100 degrees F or use where Flammable vapors are present.
High Pressure / High capacity
Dry Running Capability
Suitable for Use in Salt Water
Long Life Sealed Motor
Ergonomically designed spray nozzle provides powerful and accurate fire power with every shot.
Quick-disconnect ports allow for adjustability and ease of installation.
Kits include spray nozzle, fitting, Pumpgard strainer and hose.
Improved noise dampening rubber feet significantly minimize vibration when mounted against hard surfaces.
Certified to EN ISO 8846 Marine .
The Jabsco HotShot Series is a selfpriming pump. It may be located several feet from the tank, above or below the liquid level. For vertical pump mounting be sure that the motor is located on top. This will prevent water from entering the motor chamber in the event of a leak. Allow pump to prime with discharge line open, to avoid airlock. Builtin pressure switch will shut off pump automatically when discharge valve is closed and will restart pump when valve is opened. When pump runs out of liquid, it will continue to operate. Running dry will not damage the pump. Turn off manually.
