Jabsco # 50900-1000 Fish Box Evacuation Pump
Jabsco # 50900-1000

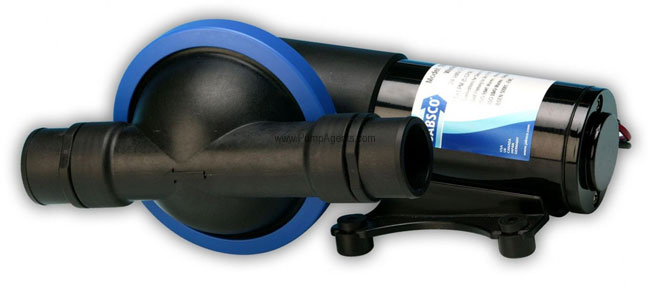

Jabsco catalog # 50900-1000, Fish Box Evacuation Pump and Motor unit. Pump is Coupled to a 12 Volt DC Motor. Ports are 1-1/2 Inch.
Price : $ 403.52
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 50900-1000 is a fish box evacuation pump with 1-1/2 Inch Ports, coupled to a 12 Volt DC Motor. The Fish Box Evacuation Pump is perfect for emptying a fishbox after a days fishing. Typically the fish box in not only used for storing the days catch but very often is used as a cooler for supplies. This means that there can be all manner of debris left in the bottom of the fish box at the end of the day. This 5GPM (19LPM) self-priming pump with 1-1/2 Inch (38mm) ports is designed for passing typical debris, such as bait residue, particles of ice, fish scales, etc. Its dry-running capabilities and the 360 degrees rotatable head allow this pump to be mounted in almost any position in the boat, allowing for total flexibility.
Features :
Product Specs :
360 degree rotating head for flexible installation
1-1/2 Inch ports allow for easy
Passage of particulates
Capable of extensive dry running
Compact and simple design
Filter-less design
Quiet running
Corrosion-resistant parts
Complies with USCG 183.410 and
ISO 8846 MARINE
Parts and Accessories for Jabsco model 50900-1000
Applications
Explanation of Fish Box Installation Fish boxes are typically mounted into the floor of the vessel and are very often below or only partially above the waterline. Bait residue, particles of ice, fish scales and anything else that could potentially be found in the FishBox will be easily passed by the Jabsco Fish Box Pump, and the selfpriming capabilities are perfect for fish box installations common to many of today's sport fishing boats. Explanation of Livewell Installation Very often the livewell tank will be above the waterline of the boat; when this is the case gravity can be used to empty the livewell tank. If not installed in this format, then it is beneficial to use the Jabsco Fish Box pump for evacuation due to its selfpriming capabilities and also its ability to pass large particles of debri, such as remains of bait or fish scales.
