Jabsco # 46010-2901 Par-Max 2 Automatic Water Pump

Jabsco Pump 46010-2901

Jabsco # 46010-2901

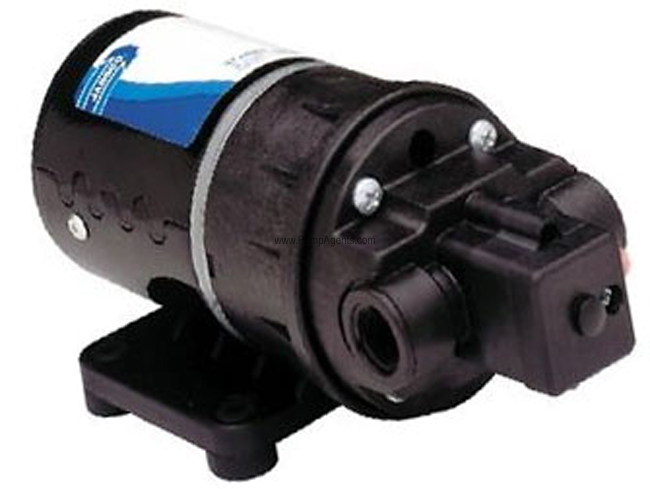

Jabsco catalog # 46010-2901, Par-Max 2 Automatic Water Pump and Motor unit. Pump is Coupled to a 24 Volt DC Motor.

Price : $ 180.98

Qty :

Same Day (3 in stock)

Click Here for PARTS



Product Information :

The Jabsco 46010-2901 is a par-max 2 automatic water pump coupled to a 24 Volt DC Motor with a 40 PSI pressure switch. The PAR-Max 2 Water System Pump is designed for vessels requiring a smooth low flow of 2.3 GPM at an attractive low price. This pump is a dual chamber diaphragm on-demand pump with the performance characteristics to match the needs of self-contained RVs and pleasure boats with multi-fixture water systems. The system is automatic when a faucet is opened, the pump instantly begins operation to provide a constant flow from tank to faucet. Closing the faucet automatically discontinues pump operation. The PAR-MAX 2 pump is self-priming and may be located above or below the fresh water tank in a dry location. To vertically mount this unit, it is best to do so with the motor on top. This will prevent water dripping on motor in the event of a leak. Place pump on a solid surface and secure with the three mounting screws being careful not to compress the rubber grommets which act as shock absorbers.

Features :

Product Specs :

Self-priming up to 4 feet

Threaded, 3/8 Inch NPT Female ports with 1/2 Inch and 1/2 Inch threaded Hose Adaptors included

Can Run Dry

Soft rubber mounts.

Corrosion resistant.

Complies with ISO 8846 MARINE .

Low noise, Super Quiet.

Less pulsation in the flow

Screw-less diaphragm design eliminates possible leak paths.

Distinctive style.

Can eliminate the requirement for an accumulator tank.

Complies with USCG Regulation 183.410 and ISO 8846 MARINE for Ignition Protection

Pumps comply with BSEN 50081-2 and 89/336/EEC Electromagnetic Compatibility requirements and are marked.


Parts and Accessories for Jabsco model 46010-2901


Other Parts :

Catalog # 18753-0644, Pressure Switch Kit, 40 Psi

Price: $ 35.18

Qty :

Can Ship : Same Day (1 in stock)

Applications

Pressure controlled diaphragm pumps provide boat owners with a fresh water system that is as easy to use as their domestic water supply with the versatility to offer full flow or a trickle. The pump is controlled by a switch which senses the pressure drop when a faucet is opened and activates the pump; it turns off when the system pressure builds to a preset limit as the faucet is closed. This system allows any type of faucet or shower valve to be fitted, from 3/8 Inch bore for minimum water use to 1/2 Inch bore for maximum flow. Choosing the pump for your needs is simple just check your system size and the number of outlets you need to operate simultaneously and select the appropriate pump. Diaphragm pumps are selfpriming, quiet in operation and can run dry for extended periods. It is always best to turn the pump off and then open a tap to depressurize the system when you are not using the boat, as this will prolong pump life.
