Jabsco # 32600-0092 Jabsco Par-Max 3.5 Water Pressure Pump

Jabsco Pump 32600-0092

Jabsco # 32600-0092

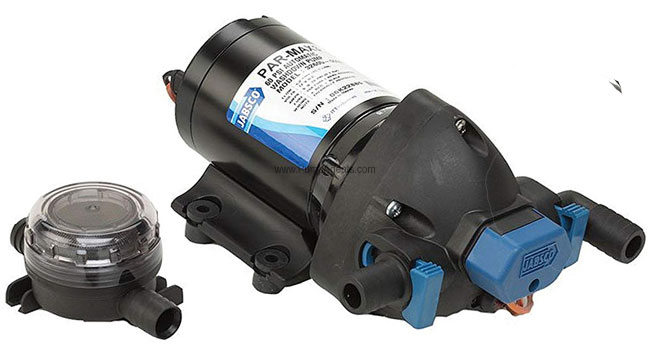

Jabsco catalog # 32600-0092, Jabsco Par-Max 3.5 Water Pressure Pump and Motor unit. Polypropylene Construction, with a Santoprene Diaphragm and EPDM Check Valves. Pump is Coupled to a 12 Volt DC Motor. Ports are 1/2 Inch Hose barb.

Price : $ 185.13

Qty :

Same Day (1 in stock)

Click Here for PARTS



Product Information :

The Jabsco 32600-0092 is a polypropylene diaphragm pump with a Santoprene Diaphragm, EPDM Check Valves, 1/2 Inch Hose barb Ports, coupled to a 12 Volt DC Motor. The PAR-Max 3.5 Water System offers a smooth flow of up to 3.5 GPM (13.2 LPM) and is self-priming from dry up to 2.4m (7.8 feet). It is suitable for complex installations on larger boats with up to four outlets, and has a heavier-duty motor for longer life. Jabsco PAR-Max 3.5 Series Water Pressure Pumps are simple, quiet, easy to maintain, and provide hot or cold water at the turn of a tap. They're also versatile enough to produce a full flow or a trickle, according to need. These diaphragm pumps provide smooth flow with good pressure. The Jabsco PAR-Max 3.5 will deliver pressurized water to the galley, lavatory, shower and toilet. Jabsco PAR-Max Water Pressure pumps have provided years of great service to many boaters. These pumps are designed for vessels requiring a quiet, smooth flow, on-demand pump.

Features :

Pump Body:
Polypropylene
Impeller:
Santoprene
Shaft Seal:
EPDM
Port Size:
Ports are 1/2 Inch Hose barb

Product Specs :

Smooth Flow

Self-Priming up to 10 feet

Dry running capability

Soft noise absorbing mounts

Snap-fit port fittings

Corrosion resistant materials

Motor rating: IP 54

ISO 8846 MARINE


Parts and Accessories for Jabsco model 32600-0092


Other Parts :

Catalog # 18916-1040, Pressure Switch, 40 PSI

Price: $ 39.09

Qty :

Can Ship : Same Day (8 in stock)

Applications

Pressure controlled diaphragm pumps provide boat owners with a fresh water system that is as easy to use as their domestic water supply with the versatility to offer full flow or a trickle. The pump is controlled by a switch which senses the pressure drop when a faucet is opened and activates the pump; it turns off when the system pressure builds to a preset limit as the faucet is closed. This system allows any type of faucet or shower valve to be fitted, from 3/8 Inch bore for minimum water use to 1/2 Inch bore for maximum flow. Diaphragm pumps are selfpriming, quiet in operation and can run dry for extended periods. It is always best to turn the pump off and then open a tap to depressurize the system when you are not using the boat, as this will prolong pump life.
