Jabsco # 32305-0092 Par-Max 3.0 GPM Washdown Pump

Jabsco Pump 32305-0092

Jabsco # 32305-0092

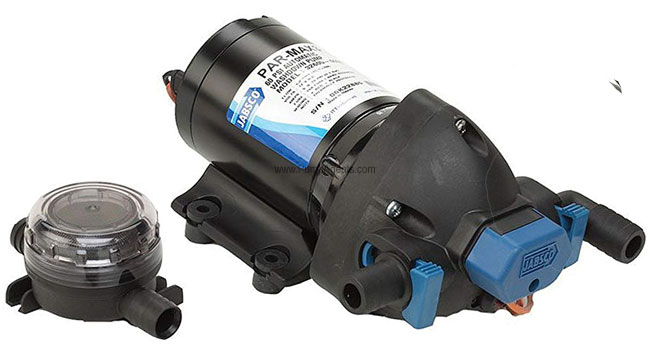

Jabsco catalog # 32305-0092, Par-Max 3.0 GPM Washdown Pump and Motor unit. Polypropylene Construction. Pump is Coupled to a 12 Volt DC Motor. Ports are 3/4 Inch Hose Barb.

Price : $ 155.75

Qty :

Same Day (1 in stock)

Click Here for PARTS


Product Information :

The Jabsco 32305-0092 is a polypropylene diaphragm pump with 3/4 Inch Hose Barb Ports, coupled to a 12 Volt DC Motor. This Jabsco pump has an ideal flow and pressure for washdown. Washdown pumps are ideal for cleaning decks, cockpits and anchors on yachts of a range of sizes and can be connected to sea or fresh water. This unit comes with an intake strainer, spray nozzle and quick connect 3/4 Inch (19mm) hose barb fittings. For many years, Jabsco PAR-Max washdown pumps have been the preferred system for cleaning marine vessels, making it an industry standard. That's because all Jabsco products are specifically designed to fit the expressed needs of boat builders and enthusiasts alike. These Washdown pumps are a development of our Water Pressure System Pumps. Higher shut-off pressure switches prevent on/off cycling while salt water compatible trigger nozzles let you blast off mud and dirt and then rinse down. Jabsco 3.0 GPM washdown pumps are self-priming and may be located above or below the water supply in a dry location.

Installation site must be well vented and free of all flammable materials and fluids from area.

Features :

Pump Body:
Port Size:
Ports are 3/4 Inch Hose Barb

Product Specs :

High pressure jet blasts mud and silt from anchor chain and decks.

Suitable for Use with Salt Water

Waterproof with sealed motor and sealed pressure switch for mounting in exposed positions.

Thermal overload protection automatically stops the motor if it overheats.

Dry running capability

Pump Design 3 Chamber Diaphragm

Suction Lift Self Priming to 8 ft.

Ports 3/4 Inch Hose Barb Fittings

Motor Permanent Magnet

Soft rubber mounts.

Corrosion resistant.

Complies with USCG 183.410 and ISO 8846 MARINE .

Supplied complete with Pumpgard and trigger nozzle.

Parts and Accessories for Jabsco model 32305-0092

Other Parts :

Catalog # 18916-1050, Pressure Switch, 50 PSI

Price: $ 39.09

Qty :

Can Ship : Same Day (15 in stock)


Designed for cleaning decks, cockpits, and anchors on yachts in a range of sizes, this full line of pumps provides 3 GPM and up to 50 psi pressure. Thats sufficient power to blast decks and anchor lines clean. Suitable for sea or fresh water, each one comes with an intake strainer, a spray nozzle and quickconnect 3/4 Inch hose barb fittings. This pump has a corrosion resistant sealed motor for harsh environment use. Also can be used for baitwell applications. Baitwell is a full flow application.Flow rate to 3.0 GPM 11.4 LPM, Pressure up to 50 PSI 3.5 bar, Selfpriming up to 8 feet 2.5m.
