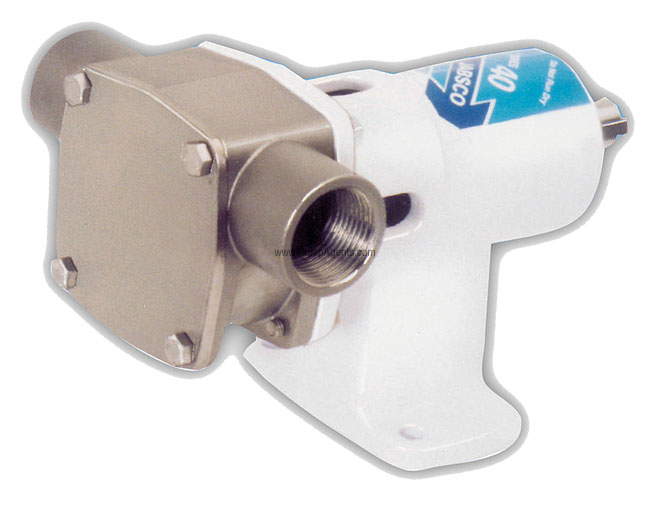

Jabsco catalog # 28330-2124, Stainless Steel Pedestal Pump, bare shafted pedestal pump end only without a Motor. Stainless Steel 316 Grade Construction, with a High Pressure Viton Impeller and Carbon/Ceramic Mechanical Seal. Ports are 1 Inch BSP internal threaded.
Price : Contact Us
The Jabsco 28330-2124 is a stainless steel 316 grade Flexible Impeller pump with a Viton Impeller, Carbon/Ceramic Mechanical Seal, 1 Inch BSP internal threaded Ports, bare shafted pedestal pump end only without a Motor. These 316L stainless steel hygienic pumps with a polished finish make up the Jabsco 28 Series. Built with a foot or flange for mounting the motor (making them monobloc), they are certified 3A and FDA. Their main applications are in the food, cosmetic and pharmaceutical fields, but they can be used in the industry for highly viscous, alcoholic, corrosive and abrasive solutions. Their delicate pumping action respects liquids fragile or sensitive to shear. Cream preparations, jams, sauces and pie preparations containing fruit pieces are easily managed. Large dry priming capacity up to five meters - enabling convenient and safe installation positions for transfers and settling. The presence of a single moving part (the impeller) greatly facilitates maintenance. There are only four screws to remove the cover for simplify the inspection and replacement of the impeller if necessary. Four additional screws allow access for maintenance of mechanical seals.
Self primes from dry up to 5.0 metres
Flows up to 80 litres per minute
Pressure up to 4.0 bar
Handles hard or soft solids - max. 6mm dia
Tolerates abrasive wear - replacable wearplate
Non pulsating flow, proportional to speed
Handles viscosities up to 4,000 centiPoise
Minimal shear to thixotropic fluids
Easy to service and maintain
These pumps are specially adapted for unloading and transfer of ingredients, tank filling and emptying, Recirculation and mixing, Filling portions and containers, Brine injection, Sampling, filtration and more. Sectors included are Agrifood and drink, Hygienic and cosmetic products, Industrial liquid products. Typical Applications include the following Acids and alkalis, compounds, copper sulphate, methyls, alcohols. Industrial chemicals, resins, oils, fatty acids, brine. Detergents, soaps, hydrogen peroxide. Paints, dyes, inks, varnishes, laquers, solvents. Transfer, filling, recirculation and agitation, spillage return, spraying, coating, filtration. Viscous, shearsensitive fluids, small hard and soft solids in suspension.
