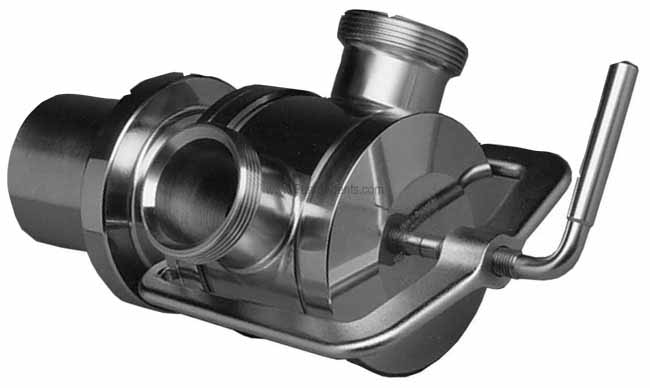

Jabsco # 23930-4115 Stainless Steel Bulkhead Mounted Pump

Jabsco Pump 23930-4115

Jabsco # 23930-4115

Jabsco catalog # 23930-4115, Stainless Steel Bulkhead Mounted Pump. 316 Stainless Steel Construction, with a 3A Food Grade Neoprene Impeller and Food Grade Nitrile/Carbon/Ceramic Mechanical Seal. Pump is Close Coupled to a Motor. Ports are 2-1/2 Inch RJT to BS1864.

Price : Contact Us

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

The Jabsco 23930-4115 is a 316 stainless steel Flexible Impeller pump with a 3A Food Grade Neoprene Impeller, Food Grade Nitrile/Carbon/Ceramic Mechanical Seal, 2-1/2 Inch RJT to BS1864 Ports, bare shafted pump only. These units are specifically designed for farm pick-up milk tanker trucks. This pump has a nominal flow rate of 185 GPM (700 LPM) at 1750 RPM, and is self-priming from dry up to 7.8 feet (2.4m) and primes at low or high speeds. Intake/Suction lines must be airtight to prevent product foaming and assure self-priming. Use noncollapsible hose. These pumps feature excellent self-priming, faster loading, more accurate metering, smooth, steady flow, long reliable life, easy servicing and hygienic design which make this pump excellent for transport service. Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pump's intake and discharge ports. Refer to dimensional drawing. Pump is normally assembled at factory for clockwise rotation looking at end cover. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components. The temperature limits for the sanitary Neoprene impeller in this pump is are 45 degrees F to 150 degrees F ( 7 degrees C to 65 degrees C).

Features :

Pump Body:
316 Stainless Steel
Impeller:
3A Food Grade Neoprene
Shaft Seal:
Food Grade Nitrile/Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 2-1/2 Inch RJT to BS1864

Product Specs :

Flow rate nominal 185 GPM at 1750 rpm.

Self-priming from dry up to 7.8' .

Pressure up to 21.7 psi .

Handles soft solids 0.7 Inch maximum diameter.

Certified to US 3A standard 02-11.

Clean-in-place or easy strip clean.

Minimal shear to thixotropic fluids.

Easy to service and maintain.


Parts and Accessories for Jabsco model 23930-4115


Impeller :

Catalog # 8713-0005, Impeller, 3A Food Grade Neoprene

Price: $ 453.75

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 22644-0000, Mechanical Seal

Price: $ 374.64

Qty :

Can Ship : Same Day (3 in stock)

Applications

These units are specially designed for use as product pickup pumps mounted on over the road fluid transports. Offered in three sizes, this pump range provides an effective pump for the smaller truck mounted 2200 U. S. gallon tanks as well as a pump for the largest 6000 U.S. gallon trailer mounted tank. Although designed to conform to the 3A equipment standard for use in transferring milk, this pump can handle a wide range of fluids. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps.
