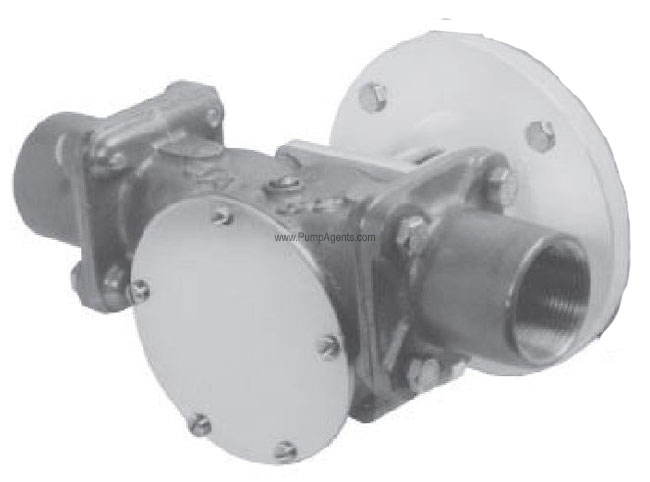

Jabsco # 22880-2203 Bronze Flexible Impeller Pump End Only

Jabsco Pump 22880-2203

Jabsco # 22880-2203

Jabsco catalog # 22880-2203, Bronze Flexible Impeller Pump End Only, replacement pump end only without a motor. Bronze Construction, with a Nitrile Impeller and Nitrile/Carbon/ceramic mechanical Seal. Ports are Flanged.

Price : $ 1583.26

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

The Jabsco 22880-2203 is a bronze Flexible Impeller pump with a Nitrile Impeller, Nitrile/Carbon/ceramic mechanical seal, Flanged Ports, replacement pump end only without a Motor. This is a Pump Head Kit only without the motor, that has an Epoxy-coated aluminium Motor adaptor, suitable for a B3/B14 D100 frame motor to IEC 71 standard. There is a choice of 1-1/2 Inch BSP Threaded, 1-1/2 Inch NPT, and 2 Inch Hose Port adaptor kits to mount on the flange ports. Temperature range with Nitrile Impeller option is 10 degrees C to 90 degrees C. These pumps have unrivalled solids handling, and are able to handle soft solids, and even unintentional hard solids such as loose screws, weld material and fruit stones. This pump has an exceptionally high flow rate compared to other pump types of the same size. It fits into smaller spaces - simplifies installation and equipment design. These pumps have very few moving parts to wear or break and spare parts are low-priced and readily available. Spares are easy to fit and most unskilled users can change an impeller.

Do not pump gasoline, solvents, thinners or other flammable liquids.

Features :

Pump Body:
Bronze
Impeller:
Nitrile
Shaft Seal:
Nitrile/Carbon/ceramic mechanical seal
Port Size:
Ports are Flanged

Product Specs :

Flows up to 52.8 gal /minute at 1500 RPM

Self primes from dry up to 9.8 feet

Handles hard or soft solids

Non pulsating flow

Gentle pump action does not damage shear sensitive products

Easy to service and maintain

Inexpensive, versatile pump; easy to install

Marine-quality bronze and stainless-steel parts suitable for seawater


Parts and Accessories for Jabsco model 22880-2203


Impeller :

Catalog # 836-0003, Impeller, Nitrile

Price: $ 62.14

Qty :

Can Ship : Same Day (44 in stock)

Applications

Widely used for Chemical processes, recirculation, filtration, Machinetool coolants, lubricants, sumpemptying, Agricultural, factory and Utility Company duties, Marine bilge pumping. Especially suited to Saltwater pumping, Mildly aggressive chemicals, Abrasives in suspension, Marine toilet waste pumpout. Typical Industrial Applications From water to the most difficult, e.g. transferring foaming solutions with entrained air or solids, such as soap, circulating abrasive and non abrasive slurries. Transferring inks, dyes, starches etc. Chemical Applications Circulating and transferring various chemicals such as ammonia, barium, copper sulphate, glycerine, nickel chloride, silver nitrate; various acids such as boric, carbonic, citric and photo processing solutions, widely used for polyelectrolyte.
