Oberdorfer Pump # 300BS-10F13 Parts Order page( Click Here for the Oberdorfer Pump # 300BS-10F13 Product Page ) |
|

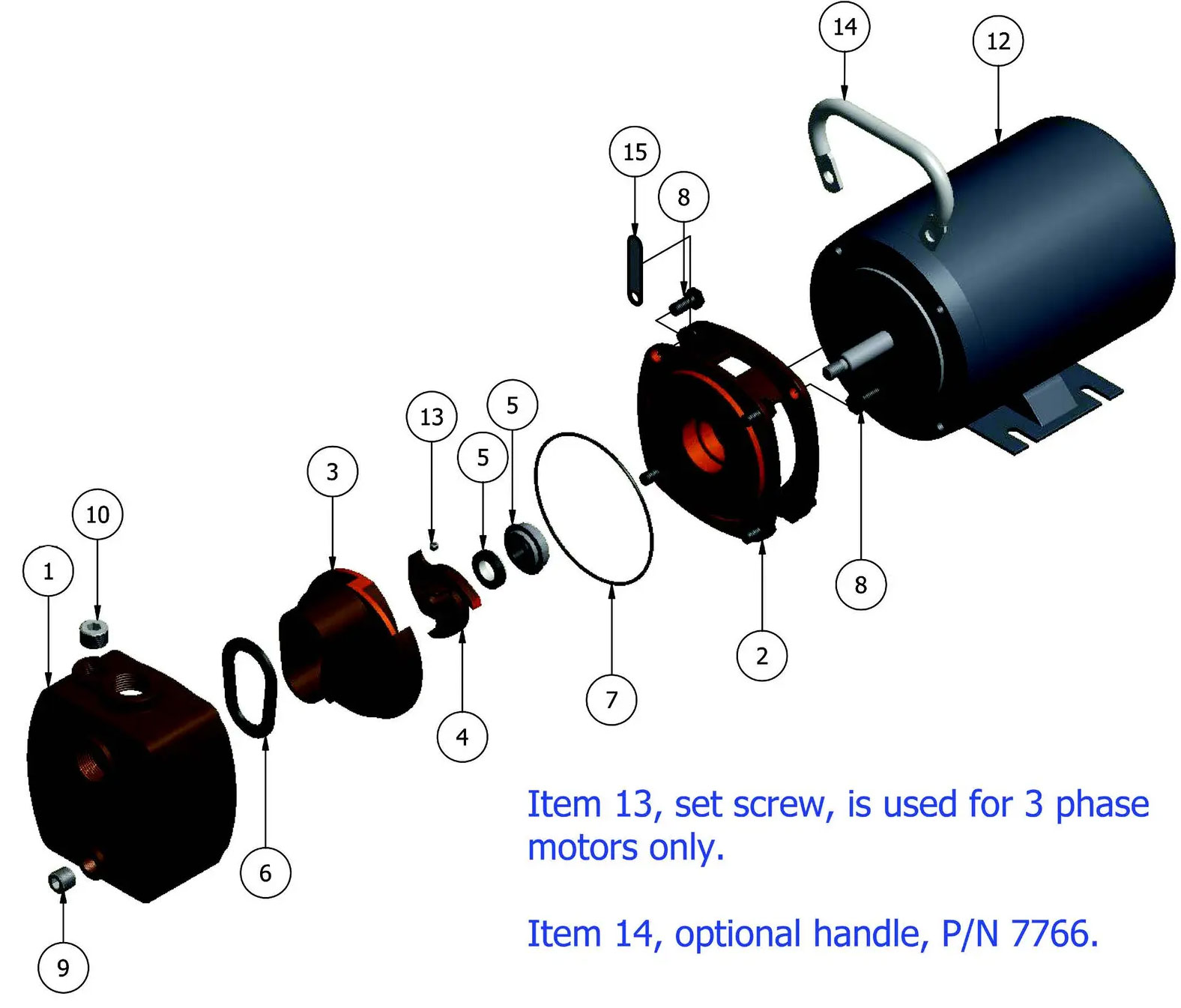

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Oberdorfer Pump model # 300BS-10F13 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT | # 11290 | Repair Kit - includes Impeller, Seal Assembly, Diffuser Gasket, O-Ring | $385.00 | 0 in Stock | 1 | ||
| MOT | # 5859 | Electric Motor F13, 1/3 HP, Single Phase, 56J Frame, 3450/2850 RPM, ODP | $686.00 | 2 in Stock | 1 | ||
| 1 | # 7190 | Body | $765.00 | 2 in Stock | 1 | ||
| 2 | # 7191 | Adapter | $571.00 | 1 in Stock | 1 | ||
| 3 | # 7192 | Diffuser | $335.00 | 3 in Stock | 1 | ||
| 4 | # 7193 | Impeller | $232.00 | 10 in Stock | 1 | ||
| 5 | # 32210 | Seal Assembly | $222.00 | 7 in Stock | 1 | ||
| 6 | # 2271 | Diffuser Gasket | $66.55 | 2 in Stock | 1 | ||
| 7 | # 9797-157 | O-Ring | $7.88 | 17 in Stock | 1 | ||
| 8 | # 5411 | Screw | $6.30 | 16 in Stock | 8 | ||
| 9 | # 7321S | Plug | $2.89 | 10 in Stock | 1 | ||
| 10 | # 7443S | Plug | $11.17 | 8 in Stock | 1 | ||
| 14 | # 7766 | Handle (Optional) | $84.12 | 18 in Stock | 1 | ||
| 15 | # 7783 | Nameplate | $25.51 | 0 in Stock | 1 | ||
