Jabsco Pump model 30560-4005 Parts

PARTS LIST for Jabsco Pump model # 30560-4005 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 30560-4005 Product Page )

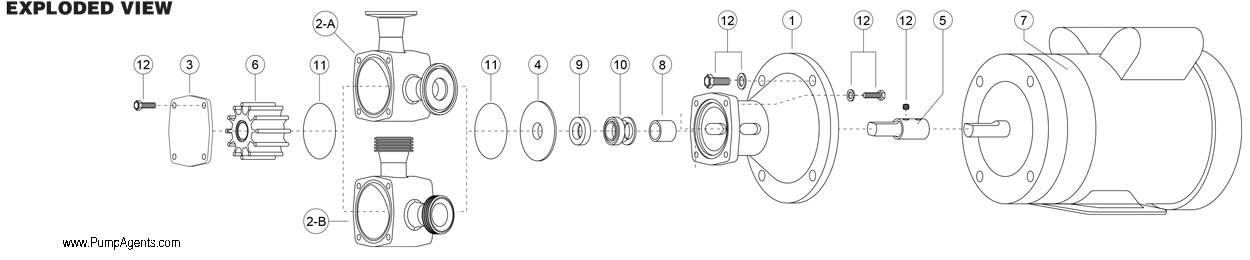

Blowup of 30560-4005


Item 1
(on image above)

Part # 18753-0216

Adapter

$ 634.64 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (28 in stock)


Item 2B
(on image above)

Part # 18753-0360

Body, ACME Ports

$ 1563.39 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 3
(on image above)

Part # 18753-0361

End Cover

$ 120.26 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (8 in stock)


Item 4
(on image above)

Part # 18753-0200

Wearplate

$ 221.86 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (36 in stock)


Item 5
(on image above)

Part # 18753-0211

Shaft

$ 772.90 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (22 in stock)


Item 6
(on image above)

Part # 8981-0005

Impeller

Impeller, Standard Pressure - Neoprene

$ 138.57 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (28 in stock)


Item 7
(on image above)

Part # 18753-0339

Motor, 1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1740 RPM, TEFC, H145tc Frame, C-Face, Overload Protected, with Capacitor Start

$ 1087.17 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 8
(on image above)

Part # 18753-0227

Spacer

$ 159.93 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (34 in stock)


Item 9
(on image above)

Part # 18753-0235

Seal Seat, Ceramic - Nitrile

$ 43.48 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (54 in stock)


Item 10
(on image above)

Part # 18753-0245

Seal

Mechanical Seal, Nitrile/Carbon/Ceramic

$ 111.40 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (98 in stock)


Item 11
(on image above)

Part # 18753-0263

O-Ring, Nitrile

$ 9.53 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (364 in stock)
