Jabsco # 30560-4005 Hygienic Flexible Impeller Pump 1-1/2 HP

Jabsco Pump 30560-4005

Jabsco # 30560-4005

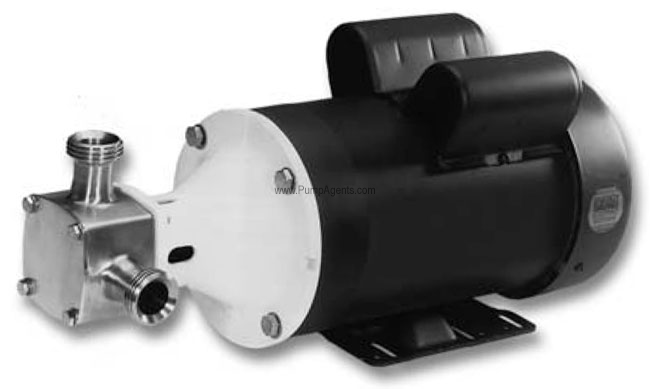

Jabsco catalog # 30560-4005, Hygienic Flexible Impeller Pump and Motor unit. 316 Stainless Steel Construction, with a Neoprene Impeller and Carbon/Ceramic/Nitrile Mechanical Seal. Pump is Close Coupled to a 1-1/2 Horsepower, 115/230 Volts, TEFC (Totally Enclosed Fan Cooled) Motor. Ports are 1 Inch ACME Threads with Bevel Seat.

Price : $ 5247.10

Qty :

Same Day (2 in stock)

Click Here for PARTS


Product Information :

The Jabsco 30560-4005 is a 316 stainless steel Flexible Impeller pump with a Neoprene Impeller, Carbon/Ceramic/Nitrile Mechanical Seal, 1 Inch ACME Threaded Ports with Bevel Seat, coupled to a 1-1/2 Horsepower, 115/230 Volts, TEFC, 60 HZ Motor. Jabsco Hygienic Flexible Impeller Pumps handle low and high-viscosity liquids, gels and pastes and can pass suspended soft and hard solids with minimal damage. Virtually any liquid with viscousity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials. The output flow is smooth, steady and totally pulsation-free and their gentle pumping action will not breakdown shear-sensitive or fragile liquids. Hygienic flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-entrained food, cosmetic and pharmaceutical products. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Designed to be cleaned in place or easily strip-deaned, Jabsco flexible impeller pumps frequently offer a more suitable and cost-effective alternative to many other pump types. Flow rate: Nominal 21.5 USgallons/min (81.4 Litres/min) at 1750rpm.

Features :

Pump Body:
316 Stainless Steel
Shaft Seal:
Carbon/Ceramic/Nitrile Mechanical Seal
Port Size:
Ports are 1 Inch ACME Threads with Bevel Seat
Motor Specs :
1-1/2 Horsepower, 115/230 Volts, TEFC (Totally Enclosed Fan Cooled).

Product Specs :

Immediate self priming

Handling a wide viscosity range

Operating equally well at low and high speeds

Capable of transferring abrasive laden or air entrained liquids

Able to transfer fluids with solids

Compact size

Pumps in either direction and can be mounted in any orientation

Can drain even the last few ounces of liquid from a container

Long-life mechanical shaft seal

All 316 grade Stainless Steel parts with high surface finish and Rugged heavy-duty construction

Hygienic Flexible Impeller leaves no taste or odor

Easy strip-to-clean

Passes even hard metal particles without stalling

Parts and Accessories for Jabsco model 30560-4005

Impeller :

Catalog # 8981-0005, Impeller, Neoprene

Price: $ 138.57

Qty :

Can Ship : Same Day (75 in stock)

Shaft Seal :

Catalog # 18753-0245, Mechanical Seal, Nitrile/Carbon/Ceramic

Price: $ 111.40

Qty :

Can Ship : Same Day (82 in stock)

Casing frozen or cracked ? New Pump Casing :

Catalog # 18753-0360, Pump Body with 1 Inch ACME Threads and Bevel Seat

Price: $ 1563.39

Qty :

Can Ship : Same Day (2 in stock)


Pumping of food pastes, sauces, dough, and other high viscosity media. High viscosity products can be moved by these pumps over large distances with a significant starting head. Cosmetics, toothpastes, shampoos, soaps and pharmaceuticals are also pumped by FIP pumps. Minimal shear on the product is exerted, making it ideal for shear sensitive beauty products. If the product is thixotropic, the shear rate will not cause additional structure build up. The beverage industry also uses FIP pumps. The application areas are; wines, beers, soft drinks, fruit juices and syrups. The FIP pump is capable of passing whole fruit berries through the pump without causing damage. This is due to its unique mode of operation; the solid particle can enter the SPACEbetween two impeller blades and be passed out the other side without having suffered any damaging effects. DAIRY Transfer and processing of raw milk, cream, milk whey, buttermilk, condensed milk. FOODS Processing of eggs, sugar liquors, brines, catsup, chocolate, glaze, gelatin, honey, jams, jellies, mayonnaise, molasses, mustard, pickle relish, vinegar, water, yeast slurries, syrups, liquids containing solids in suspension such as chopped tomatoes, nuts, peanut butter. BEVERAGE Circulating and transferring alcohols, beers, brewery slop, cider, distillery wort, extracts, flavors, juice, mash, soft drink syrups, wines. PHARMACEUTICAL Moving medicines, cosmetics, process chemicals, lotions, preparations, filtering solutions, used as a filling line supply pump. INSTALLATION Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pump's intake and discharge ports. Pump is normally assembled at factory for clockwise rotation looking at end cover. SELFPRIMING Primes at low or high speeds. For vertical dry suction lift of 10 feet neoprene, a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply Neoprene 45 degrees to 150 degrees F 7 degrees to 65 degrees C.
