Jabsco Pump model 30550-1115 Parts

PARTS LIST for Jabsco Pump model # 30550-1115 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 30550-1115 Product Page )

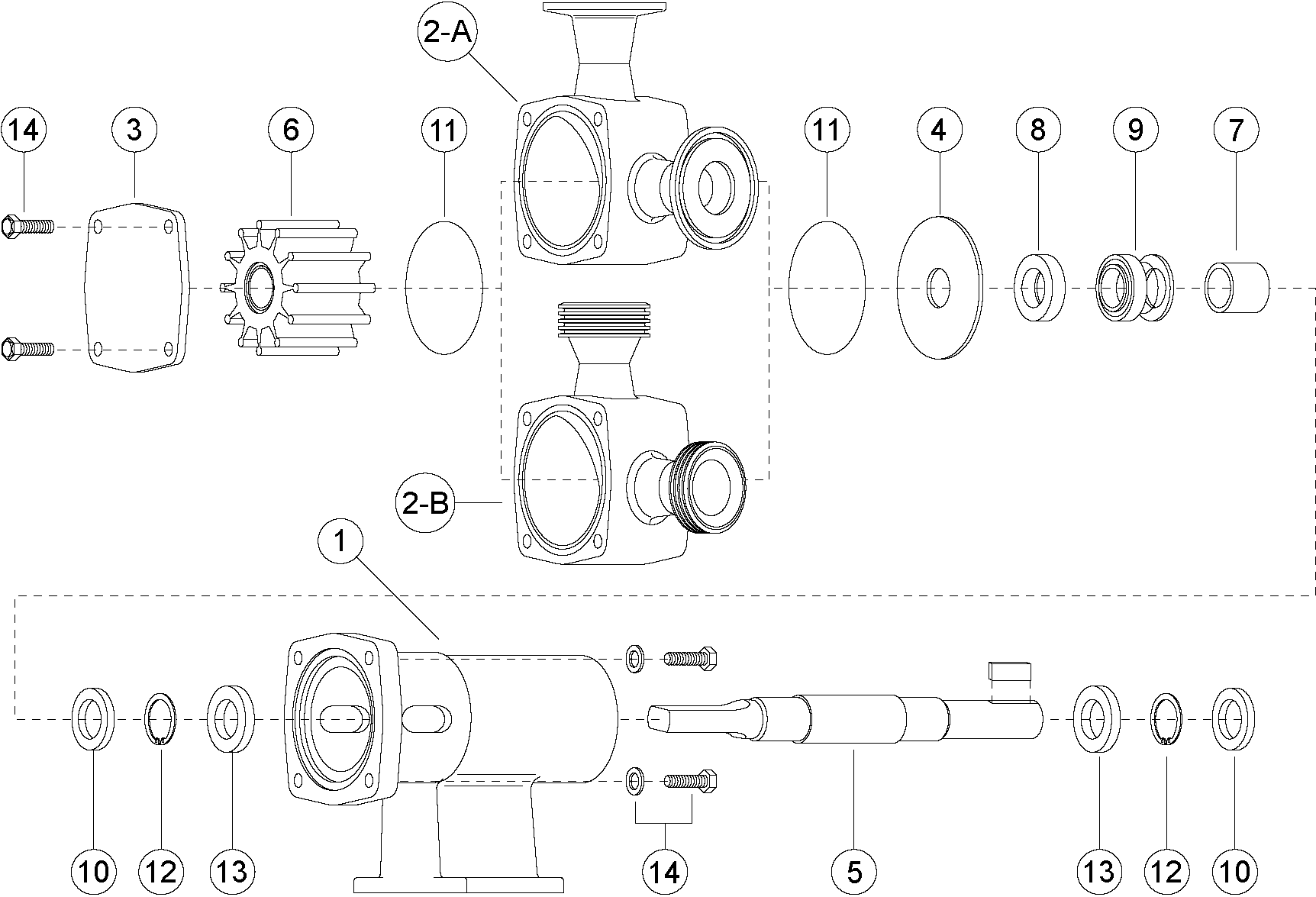

Blowup of 30550-1115


Item 1
(on image above)

Part # 18753-0183

Bearing Housing

$ 421.11 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 2A
(on image above)

Part # 18753-0353

Body, Clamp Ports

$ 1275.70 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (6 in stock)


Item 3
(on image above)

Part # 18753-0355

End Cover

$ 107.89 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 4
(on image above)

Part # 18753-0199

Wearplate

$ 247.02 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (14 in stock)


Item 5
(on image above)

Part # 18753-0203

Shaft

$ 420.78 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 6
(on image above)

Part # 8980-0005B

Impeller, High Pressure - Neoprene

$ 119.12 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (37 in stock)


Item 7
(on image above)

Part # 18753-0221

Spacer

$ 222.48 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 8
(on image above)

Part # 18753-0233

Seal Seat, Ceramic - Nitrile

$ 46.48 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (19 in stock)


Item 9
(on image above)

Part # 18753-0243

Seal

Mechanical Seal, Nitrile/Tungsten Carbide

$ 502.62 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 10
(on image above)

Part # 18753-0257

Bearing Seal

$ 27.58 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (35 in stock)


Item 11
(on image above)

Part # 18753-0261

O-Ring, Nitrile

$ 10.17 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (2501 in stock)


Item 12
(on image above)

Part # 18753-0269

Retaining Ring

$ 11.89 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (12 in stock)


Item 13
(on image above)

Part # 18753-0273

Bearing

$ 43.59 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (7 in stock)


Item 14
(on image above)

Part # 18753-0277

Screw Kit, Consists of Screw, Hex Hd. M5 x 16mm (4) Screw, Pan Hd. M5 x 16mm (4) Washer, Flat M5 (4)

$ 24.70 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (4 in stock)
