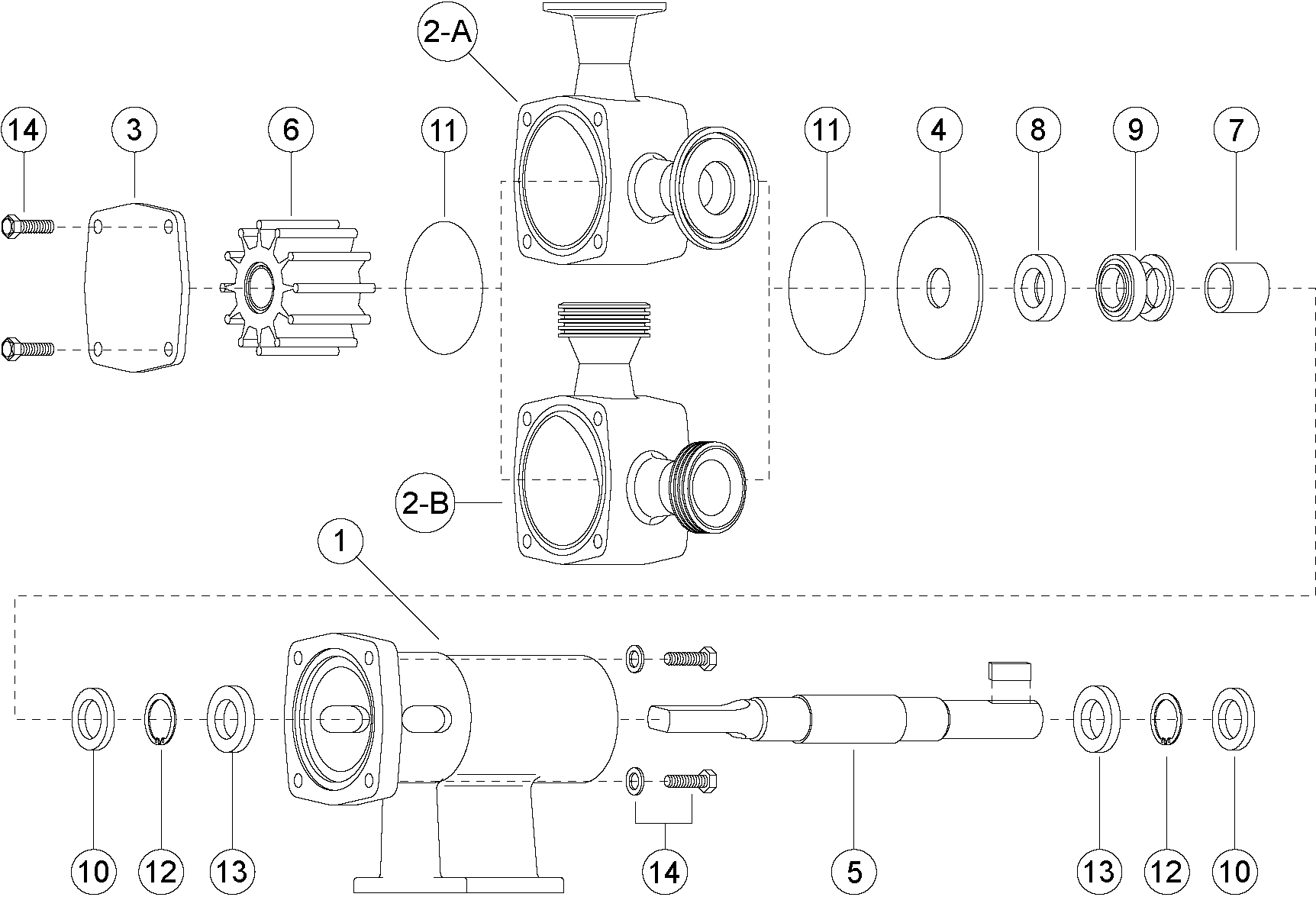

Parts List for Jabsco Pump model # 30550-1015
Key Part # Description Price Stock Required Quantity Action
1 # 18753-0183 Bearing Housing $421.11 1 in Stock 1 is Req'd
2-A # 18753-0353 Body, Clamp Ports $1275.70 6 in Stock 1 is Req'd
3 # 18753-0355 End Cover $107.89 3 in Stock 1 is Req'd
4 # 18753-0199 Wearplate $247.02 18 in Stock 1 is Req'd
5 # 18753-0203 Shaft $420.78 3 in Stock 1 is Req'd
6 # 8980-0005B Impeller, High Pressure - Neoprene $119.12 27 in Stock 1 is Req'd
7 # 18753-0221 Spacer $222.48 5 in Stock 1 is Req'd
8 # 18753-0233 Seal Seat, Ceramic - Nitrile $46.48 36 in Stock 1 is Req'd
9 # 18753-0241 Mechanical Seal, Carbon - Nitrile $95.88 37 in Stock 1 is Req'd
10 # 18753-0257 Bearing Seal $27.58 19 in Stock 2 are Req'd
11 # 18753-0261 O-Ring, Nitrile $10.17 2459 in Stock 2 are Req'd
12 # 18753-0269 Retaining Ring $11.89 3 in Stock 2 are Req'd
13 # 18753-0273 Bearing $48.65 2 in Stock 2 are Req'd
14 # 18753-0277 Screw Kit, Consists of Screw, Hex Hd. M5 x 16mm (4) Screw, Pan Hd. M5 x 16mm (4) Washer, Flat M5 (4) $37.13 2 in Stock 1 is Req'd
