AMT Pump model 4230-97 Parts
PARTS LIST for AMT Pump model # 4230-97 Pump:

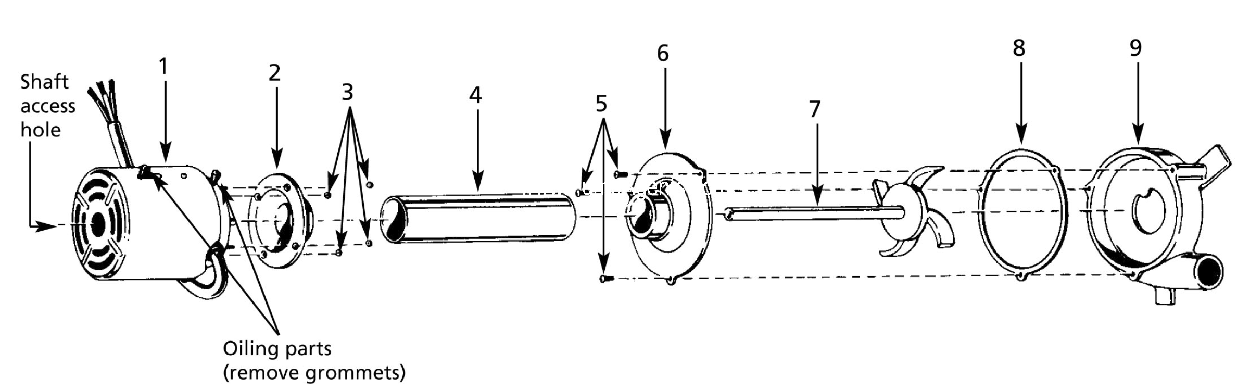

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the AMT Pump 4230-97 Product Page )
Item 1
(on image above)
Motor
Motor, 0.04 Horsepower 1PH, 115 Volts, TEFC Totally Enclosed Fan Cooled, 60 Hz, Nema 56C Frame, replacement electric motor only (pump is not included)
$ 210.60 / each
Item 2
(on image above)
Motor adapter
$ 45.36 / each
Item 4
(on image above)
Tube column
$ 30.78 / each
Item 6
(on image above)
Volute cover
$ 58.32 / each
Item 7
(on image above)
Impeller
Impeller assembly
$ 63.18 / each
Item 8
(on image above)
Volute gasket
$ 9.72 / each
Item 9
(on image above)
Volute
$ 81.00 / each
