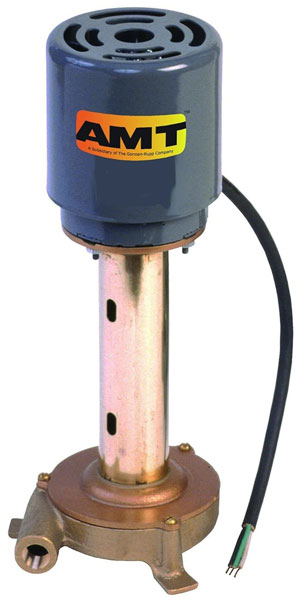

AMT # 4230-97 Bronze Coolant Recirculating Pump and Motor 1/25 HP

The AMT 4230-97 is a Bronze Coolant Recirculating Pump and Motor unit with a Bronze Impeller, Fiber Gasket Shaft Seal, 3/8 Inches NPT Ports, coupled to a 1/25 Horsepower, 115 Volts, TEFC Totally Enclosed Fan Cooled Motor. These coolant/recirculating pumps are heavy-duty units designed for a variety of applications involving evaporative coolers, fountains, laboratories, bilge pumping, etc. Each pump is equipped with motor, 36 3-conductor cord, brass tube column and bronze base and impeller. Handles liquids from 40 degrees to 200 degrees F (4 degrees to 93 degrees C). For use with non-flammable liquids compatible with pump component materials. The motor on this pump is not intended to be submersed in liquid. The liquid level should be at least 2 below motor bottom. All 115V motors are equipped with automatic thermal protection. Check motor wiring before putting unit into service (see motor nameplate for specific wiring diagram). These are manual units, no controls are supplied. All units are for use with non-flammable, non-abrasive liquids, compatible with pump component materials. Dry running will not harm pump or motor.

The motor on this pump is not intended to be submerged in liquid. The liquid level should always be at least 2 Inch below motor bottom.
