AMT Pump model 3168-95 Parts

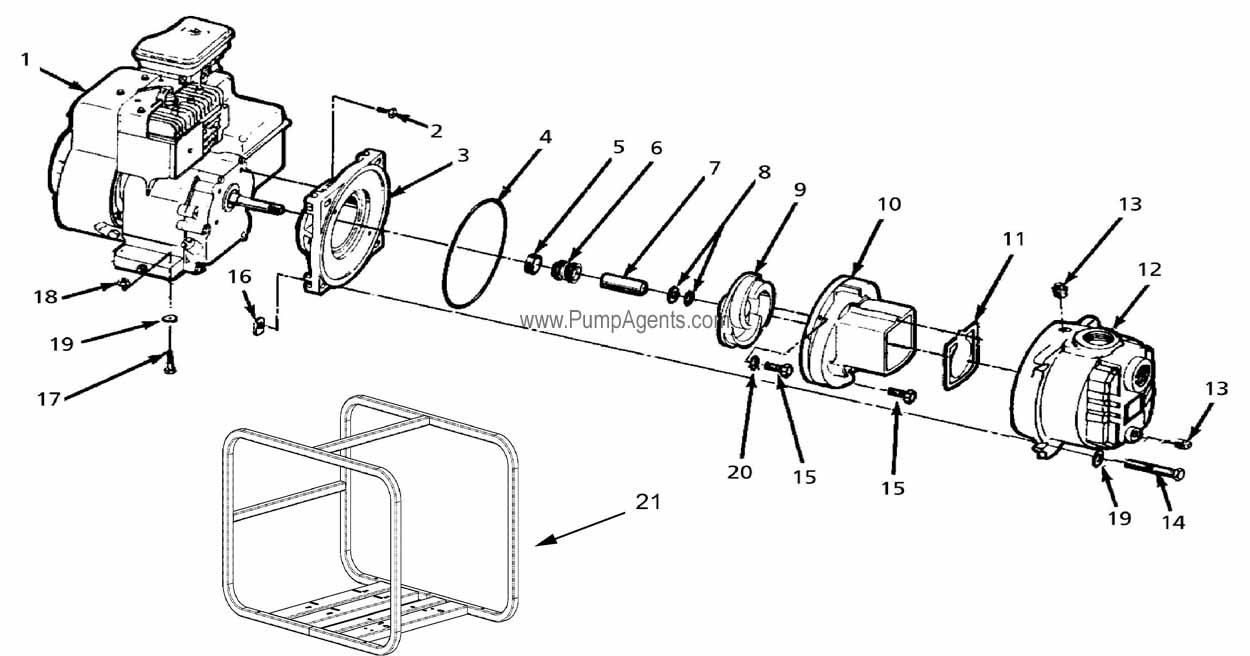

PARTS LIST for AMT Pump model # 3168-95 Pump:
( Click Here for the AMT Pump 3168-95 Product Page )
Item 1
(on image above)
Engine
$ 780.84 / each
Item 3
(on image above)
Adapter - Cast Iron
$ 215.46 / each
Item 56
(on image above)
Seal
Mechanical Seal, Buna-N/Silicon Carbide, Type 6, size 1 Inch
$ 139.32 / each
Item 56
(on image above)
Mechanical Seal, Viton/Carbon/Ceramic, Type 6, size 1 Inch
$ 58.32 / each
Item 8
(on image above)
Impeller Shim Package
$ 9.72 / each
Item 9
(on image above)
Impeller
Impeller
$ 79.38 / each
Item 10
(on image above)
Volute - Cast Iron
$ 157.14 / each
Item 12
(on image above)
Casing
Casing - Cast Iron
$ 362.88 / each
Item 20
(on image above)
Lock Washer SS
$ 9.72 / each
Item KIT
(on image above)
O-Ring/Flapper Kit - Buna N (standard). Includes : O-Ring - Buna N (Ref. 4), Flapper Valve - Buna N (Ref. 11)
$ 50.22 / each
Item KIT
(on image above)
O-Ring/Flapper Kit - Viton (optional)
$ 116.64 / each
Item r
(on image above)
2 NPT Street Elbow
$ 34.02 / each
Item A
(on image above)
NPT Suction Strainer
$ 27.54 / each
