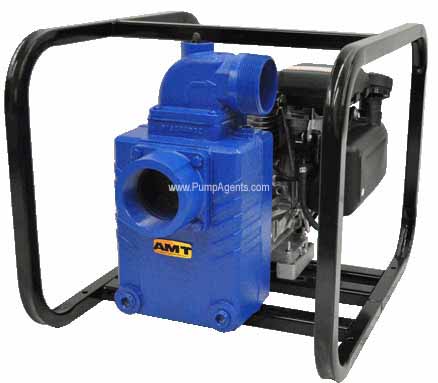

AMT # 3168-95 Cast Iron Solids Handling Pump and Engine 5 HP

AMT Pump 3168-95

AMT # 3168-95

AMT catalog # 3168-95, Solids Handling Pump and Motor unit. Cast Iron Construction with Cast Iron Impeller and Buna-N/SC-SC Shaft Seal. Pump is Close Coupled to a 5 Horsepower, Honda GC16Q Engine Motor. 2 Inch NPT Ports.

Price : $ 966.27

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 3168-95 is a Cast Iron Solids Handling Pump and Engine unit with a Cast Iron Impeller, Buna-N/SC-SC Shaft Seal, 2 Inch NPT Ports, coupled to a 5 Horsepower, Honda GC16Q Engine. These centrifugal pumps are engine-driven, self-priming (to 20 ft. lift), portable units, shipped completely assembled and mounted. Pumps include a clog resistant impeller capable of handling solids as large as 3/8 diameter (up to 25 percent by volume). A built-in check valve assists in priming and a mechanical shaft seal prevents leakage. Suction and discharge ports are 2 NPT female pipe thread. Handle liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable liquids compatible with pump component materials.

Features :

Pump Body:
Cast Iron
Impeller:
Cast Iron
Shaft Seal:
Buna-N/SC-SC Shaft Seal
Port Size:
2 Inch NPT Ports.
Motor Specs :
5 Horsepower, Honda GC16Q Engine.

Product Specs :

Heavy Duty Cast Iron Construction

Self-Priming up to 20 Ft.

Semi-Open, Clog Resistant Impeller

Heavy Duty Steel Roll Frame Included

Built-in Check Valve

Maximum Working Pressure 75 PSI

Wear Resistant Cast Iron Construction and Solids Handling Impeller


Parts and Accessories for AMT model 3168-95


Impeller :

Catalog # 1493-012-01, Impeller Machined GC Honda 375X Series, Cast Iron

Price: $ 79.38

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1641-164-00, Mechanical Seal, Buna-N/Silicon Carbide, Type 6, size 1 Inch

Price: $ 139.32

Qty :

Can Ship : 2 Weeks (0 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 2111-001-02, Casing XCI 396 Machine By Amt to 2 Inch NPT, Cast Iron

Price: $ 362.88

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 316895 Engine Driven Solids Handling pumps offer an upgraded debris handling capability in wear resistant cast iron construction. Applications include high volume liquid transfer, irrigation, commercial draining and construction. All models feature durable all cast iron construction and clogresistant impeller to ensure a long life for the complete pump. Dual volute design reduces radial load on engines.
