AMT Pump model 2G5XZCR Parts

PARTS LIST for AMT Pump model # 2G5XZCR Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the AMT Pump 2G5XZCR Product Page )

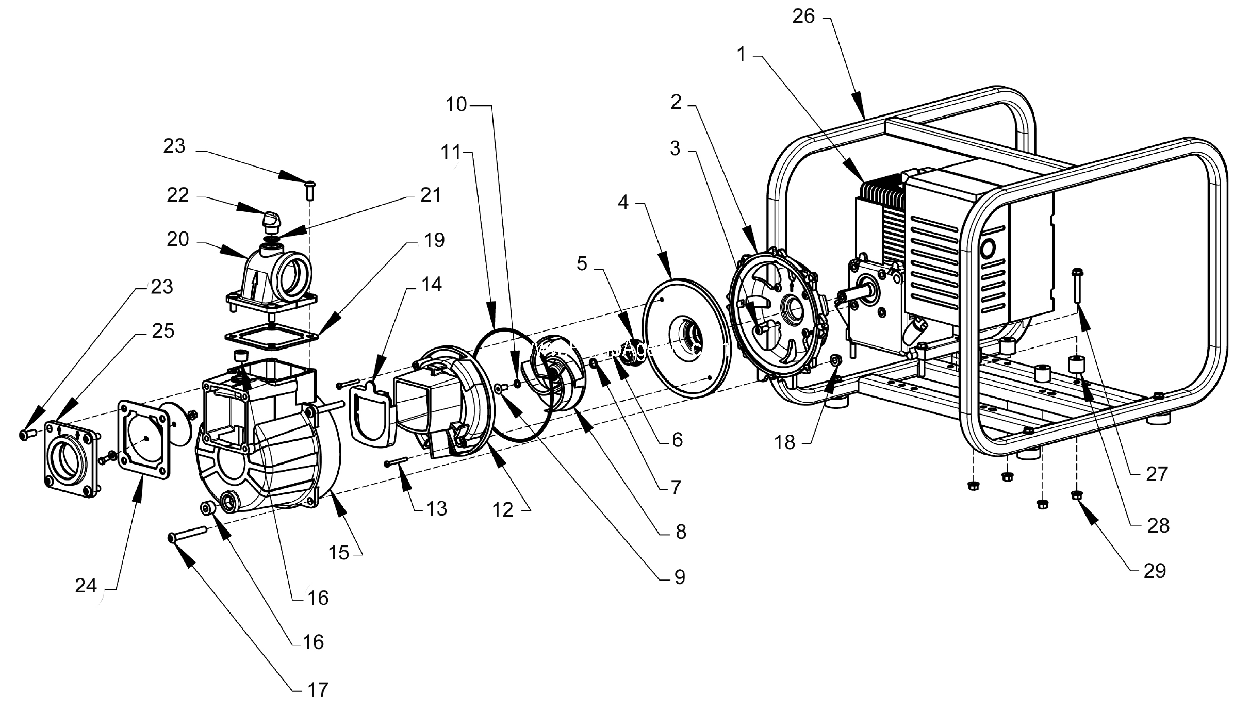

Blowup of 2G5XZCR


Item 2
(on image above)

Part # 2G4X-030-95

Bracket/Adapter Kit. Includes : Bracket/Adapter Kit (Ref. 2), 5/16-24 x 3/4 Hex Flange Screw (Ref. 3)

$ 132.84 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 4
(on image above)

Part # 2G4X-020-95

Seal Plate

$ 132.84 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 5
(on image above)

Part # 1640-162-93

Seal

Mechanical Seal, EPDM, Type 6A, size 3/4 Inch

$ 41.85 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 7
(on image above)

Part # 22-253-1

Impeller Shim Kit

$ 9.72 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 8
(on image above)

Part # 2G5X-011-95

Impeller

Impeller Kit. Includes : Shaft Key (Ref. 6), Impeller Shim Kit (Ref. 7), Impeller Kit (Ref. 8), 5/16-24 x 3/4 Flat Head Socket Screw (Ref. 9)

$ 89.10 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 15
(on image above)

Part # 2G4X-001-95

Casing

Casing Kit. Includes : Casing Kit (Ref. 15), 1/2 Pipe Plug (Ref. 16), 3/8-16 x 3 Button Head Screw (Ref. 17), 3/8-16 Flange Hex Nut (Ref. 18)

$ 314.28 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 20
(on image above)

Part # 2G4X-080-95

Discharge Manifold Kit. Includes : Discharge Manifold Kit (Ref. 20), 3/8-16 x 1 Button Head Screw (Ref. 23)

$ 124.74 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 24
(on image above)

Part # 2GXE-070-90

Flapper Valve Assembly

$ 50.22 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 25
(on image above)

Part # 2G4X-050-95

Suction Flange Kit. Includes : 3/8-16 x 1 Button Head Screw (Ref. 23), Suction Flange Kit (Ref. 25)

$ 74.52 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 30
(on image above)

Part # C400-100-92

Frame Hardware Kit

$ 27.54 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item KIT
(on image above)

Part # 2GXE-301-90

EPDM O-Ring/Gasket/Shaft Seal Kit. Includes : Shaft Seal Assembly (Ref. 5), 109 O-Ring (Ref. 10), 263 O-Ring (Ref. 11), Volute Gasket (Ref. 14), Discharge Gasket (Ref. 19), 117 O-Ring (Ref. 21), 1/2 NPT Fill Plug (Ref. 22)

$ 82.62 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item NS
(on image above)

Part # C230-170-00

Strainer (not shown)

$ 27.54 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)
