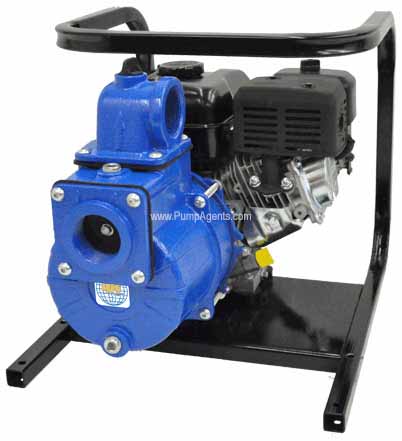

AMT # 2G5XZCR Cast Iron Solids Handling Pump and Engine 4 HP
AMT # 2G5XZCR
AMT catalog # 2G5XZCR, Solids Handling Pump and Motor unit. Cast Iron Construction with Cast Iron Impeller and EPDM/EPR Shaft Seal. Pump is Close Coupled to a 4 Horsepower, Hatz Diesel 1B20 Engine Motor..
Price : $ 3482.30
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 2G5XZCR is a Cast Iron Solids Handling Pump and Engine unit with a Cast Iron Impeller, EPDM/EPR Shaft Seal, coupled to a 4 Horsepower, Hatz Diesel 1B20 Engine. AMT engine driven pumps are commercial duty, centrifugal, self-priming (to 20 ft. vertical lift after initially filling casing with liquid), portable units. Pumps are equipped with industry standard mechanical shaft seals. Iron suction and discharge manifolds are standard NPT threads for connection to swivel hose fitting with gasket using pipe nipple provided or standard NPT pipe fittings. Discharge manifold can be rotated 180˚ (in 90˚ increments); left side discharge, front discharge or right side discharge. Pump components will handle liquids with a temperature range of 40˚ to 200˚F (4˚ to 93˚ C). Pump only nonflammable liquids compatible with pump component materials
Features :
Product Specs :
Simple Four Bolt Design for Easy Cleanout, Tool Included
EPDM/EPR Mechanical Seals, O-Rings and Gaskets
Discharge Ports Rotate in 90 degrees Increments
Heavy Duty Cast Iron Construction Ensures Durability for Severe Service Conditions
O-Ring Casing Seal for Ease of Service and Cleaning
Maximum Working Pressure 75 PSI
Maximum Temperature 200 degrees F
Dual Volute Design for Hydraulic Balance
Self-Primes to 10 Feet in 1 Minute with Maximum Suction Lift of 20 Feet
Heavy Duty Steel Roll Frame for Portability
Parts and Accessories for AMT model 2G5XZCR
Impeller :
Catalog # 2G5X-011-95, Impeller XCI 5HP Class 3/4KYD Module Subgroup/Kit, Cast Iron
Price: $ 89.10
Shaft Seal :
Catalog # 1640-162-93, Mechanical Seal, EPDM, Type 6A, size 3/4 Inch
Price: $ 41.85
Casing frozen or cracked ? New Pump Casing :
Catalog # 2G4X-001-95, Casing Xa Kit/Subgroup, Cast Iron
Price: $ 314.28
Applications
The AMT 2G5XZCR Cast Iron Engine Driven Solids Handling pumps offer an upgraded debris handling capability in wear resistant cast iron construction. Applications include high volume liquid transfer, agriculture/liquid fertilizer, irrigation, commercial draining and construction. All models feature durable all cast iron construction and clogresistant impeller to ensure a long life for the complete pump. Dual volute design reduces radial load on engines. Simple four bolt design for easy cleanout, tool included. EPDM/EPR seal and gaskets for use with many antifreeze, alcohols, ozone, freon, etc. Check your specific chemical for compatibility
