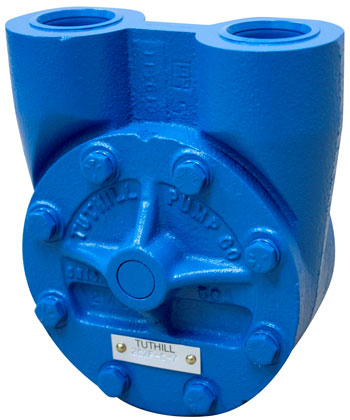

Tuthill # 4C2FV Rotary Gear Pump

Tuthill Pump 4C2FV

Tuthill # 4C2FV

Tuthill catalog # 4C2FV, Cast Iron Rotary Gear Pump, Pump End Only, no motor, Flange Mount, with Internal Relief Valve, Relief valve is set at 90 PSI (can be adjusted in field), standard shaft, and 1-1/2 Inch NPT by 1-1/2 Inch NPT ports.

Price : $ 1618.31

Qty :

Same Day (4 in stock)



Product Information :

The Tuthill 4C2FV is a Cast Iron Rotary Gear Pump, Pump End Only, no motor, Flange Mount, with Internal Relief Valve, Relief valve is set at 90 PSI (can be adjusted in field), standard shaft, and 1-1/2 Inch NPT by 1-1/2 Inch NPT ports. This pump was specifically developed for flange mounting applications and for close coupling to Tuthill's special motors to provide extremely compact close-coupled combinations. This pump is supplied with a single spring-loaded lip seal, and can handle inlet pressures to 25 PSI, and has a maximum differential capability of 100 PSI. Tuthill CF Series cast iron pumps have only two moving parts. Pumping action is based on a rotor, idler gear, and a cover cast with a crescent-shaped partition. This pump has an internal relief valve, and the adjusting screw of the relief valve is located on the suction side of the pump. The internal relief valve on this pump is designed for over-pressure protection only. It is not intended as a flow control device or for any similar use. Continuous operation of the relief valve will result in excessive heat buildup within the pump cavity that could cause serious internal damage. Make certain the adjusting screw of the relief valve is located on the suction side of the pump. Unless otherwise specified at the time of order, this pump is supplied with the standard spring, with a range of 30-225 psi, set to provide full bypass relief at 90 psi. This pump should not be used for handling plain water, corrosive or abrasive liquids or liquids not possessing adequate lubricity. Do not run the pump dry, as this could cause severe damage to the internal seal, bushings and/or metal parts.

Features :


Parts and Accessories for Tuthill model 4C2FV


Shaft Seal :

Catalog # 3CF94-7, Viton lip seal

Price: $ 188.80

Qty :

Can Ship : Same Day (5 in stock)

Applications

There are many applications that the Tuthill 4C2FV can be used in. This reliable internal gear pump is ideal for custom OEM lubricating, lowpressure hydraulic, transfer, circulating, burner oil and many other industrial pump applications, and can be used in Air Conditioning Compressors, Air Compressors, Gas Compressors, Transmissions, Engines, and Gearboxes. Many Original Equipment Manufacturers worldwide incorporate Tuthill internal gear pumps into their products for lubrication and transfer service. This widespread acceptance is a result of product performance and reliability.
