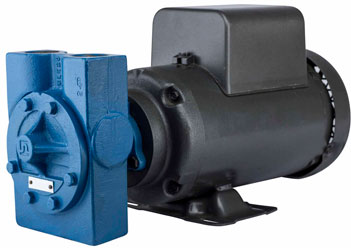

Tuthill # 4108V-C-A-88600 Rotary Gear Pump and Motor unit

Tuthill Pump 4108V-C-A-88600

Tuthill # 4108V-C-A-88600

Tuthill catalog # 4108V-C-A-88600, Cast Iron Rotary Gear Pump and Motor unit, close coupled pump and motor assembly, with a mechanical seal and carbon graphite idler and housing bushings, Internal Relief Valve, Relief valve is set at 55 PSI (can be adjusted in field), Clockwise rotation only (from shaft end view), A type Tang Shaft, 1 Inch NPT by 1 Inch NPT ports, rated for a maximum flow of 12. 9 GPM at 1750 RPM. This pump is close coupled and assembled onto a 1/4 Horsepower, 1725 RPM, 115/230 Volts, Single Phase, XP, 48YZ FRAME electric motor. Inlet Port is 1 Inch NPT, Discharge Port is 1 Inch NPT.

Price : $ 3155.24

Qty :

Same Day (2 in stock)



Product Information :

The Tuthill 4108V-C-A-88600 is a Cast Iron Rotary Gear Pump and Motor unit, close coupled pump and motor assembly, with a mechanical seal and carbon graphite idler and housing bushings, Internal Relief Valve, Relief valve is set at 55 PSI (can be adjusted in field), Clockwise rotation only (from shaft end view), A type Tang Shaft, 1 Inch NPT by 1 Inch NPT ports, rated for a maximum flow of 12. 9 GPM at 1750 RPM. This pump is close coupled and assembled onto a 1/4 Horsepower, 1725 RPM, 115/230 Volts, Single Phase, XP, 48YZ FRAME electric motor. Tuthill 4000 Series cast iron pumps employ the internal gear pumping principle. There are only two moving parts, and the pumping action is based on a rotor, idler gear, and crescent shaped partition cast integral with the cover. This pump has an internal relief valve, and the adjusting screw of the relief valve is located on the suction side of the pump. The internal relief valve on this pump is designed for over-pressure protection only. It is not intended as a flow control device or for any similar use. Continuous operation of the relief valve will result in excessive heat buildup within the pump cavity that could cause serious internal damage. Make certain the adjusting screw of the relief valve is located on the suction side of the pump. Unless otherwise specified at the time of order, this pump is supplied with the standard spring, with a range of 40-70 psi, set to provide full bypass relief at 55 psi. This pump should not be used for handling plain water, corrosive or abrasive liquids or liquids not possessing adequate lubricity. Do not run the pump dry, as this could cause severe damage to the internal seal, bushings and/or metal parts.

Features :

Port Size:
Inlet Port is 1 Inch NPT, Discharge Port is 1 Inch NPT.

Parts and Accessories for Tuthill model 4108V-C-A-88600


Pump less Motor / Replacement Pumphead :

Catalog # 4108V-C-A, Cast Iron Rotary Gear Pump. Pump End Only. 13 GPM 4108 Series. Cast Iron Construction NO motor. Has Internal Relief Valve. Relief valve is set at 55 PSI (can be adjusted in field). Clockwise rotation only (from shaft end view). Tang Shaft. Inlet Port is 1 inch NPT, Discharge Port is 1 inch NPT.

Price: $ 1672.48

Qty :

Can Ship : Same Day (4 in stock)


Motor :

Catalog # 88600, Motor with internal mod-A tang hub, spec number 34-6492-5601G1, 1/4 Horsepower, 1725 RPM, 115/230 Volts, Single Phase, XP, 48YZ FRAME, electric motor only.

Price: $ 2205.29

Qty :

Can Ship : Same Day (4 in stock)


Shaft Seal :

Catalog # 1LA9-7, Viton mechanical seal

Price: $ 155.20

Qty :

Can Ship : Same Day (22 in stock)


Other Parts :

Catalog # 1L519, 3 Piece Coupling

Price: $ 40.25

Qty :

Can Ship : Same Day (2 in stock)

Applications

There are many applications that the Tuthill 4108VCA88600 can be used in. It can be used in Air Conditioning Compressors, Air Compressors, Gas Compressors, Gearboxes, Transmissions, Engines. This reliable internal gear pump is ideal for custom OEM lubricating, lowpressure hydraulic, transfer, circulating, burner oil and many other industrial pump applications.
