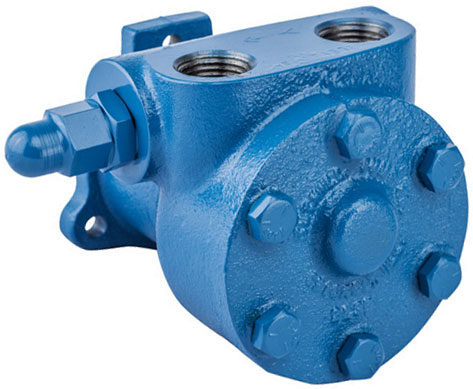

Tuthill # 2LEV Rotary Gear Pump

Tuthill Pump 2LEV

Tuthill # 2LEV

Tuthill catalog # 2LEV, Cast Iron Rotary Gear Pump, Pump End Only, no motor, with an Internal Relief Valve set to 55 PSI (can be adjusted in field), standard shaft, and 1/2 Inch NPT by 1/2 Inch NPT ports.

Price : $ 869.40

Qty :

Same Day (10 in stock)



Product Information :

The Tuthill 2LEV is a Cast Iron Rotary Gear Pump, Pump End Only, no motor, with an Internal Relief Valve set to 55 PSI (can be adjusted in field), standard shaft, and 1/2 Inch NPT by 1/2 Inch NPT ports, replacement pump end only without a Motor. This pump is suitable for equipment, motor, or adapter mounting. This pump has only two moving parts. Pumping action is based on a rotor, idler gear, and a cover cast with a crescent-shaped partition. The space between the outside diameter of the idler and the inside diameter of the rotor is sealed by the crescent. Power applied to the rotor is transmitted to the idler gear with which it meshes. The liquid fills the spaces between the teeth of the idler and the rotor and is carried past the crescent partition through the pressure side of the pump. When the teeth mesh on the pressure side, the liquid is forced from the spaces and out through the discharge port. This pump has an internal relief valve, and the adjusting screw of the relief valve is located on the suction side of the pump. The internal relief valve on this pump is designed for over-pressure protection only. It is not intended as a flow control device or for any similar use. Continuous operation of the relief valve will result in excessive heat buildup within the pump cavity that could cause serious internal damage. Make certain the adjusting screw of the relief valve is located on the suction side of the pump. Unless otherwise specified at the time of order, this pump is supplied with the standard spring, with a range of 55-120 psi, set to provide full bypass relief at 55 psi. This pump should not be used for handling plain water, corrosive or abrasive liquids or liquids not possessing adequate lubricity. Do not run the pump dry, as this could cause severe damage to the internal seal, bushings and/or metal parts.

Features :


Parts and Accessories for Tuthill model 2LEV


Shaft Seal :

Catalog # 1LA9-7, Viton mechanical seal

Price: $ 155.20

Qty :

Can Ship : Same Day (22 in stock)


Other Parts :

Catalog # 0L81-C, Mounting Foot, L Series

Price: $ 107.20

Qty :

Can Ship : Same Day (2 in stock)

Applications

There are many applications that the Tuthill 2LEV can be used in. These LubeTech Series pumps have set the industry standard for lubrication and circulation applications. This internal gear pump has been engineered to satisfy customers everchanging requirements throughout a wide range of applications. Original Equipment Manufacturers worldwide incorporate Tuthill internal gear pumps into their products for lubrication and transfer service. This widespread acceptance is a result of product performance and reliability. This reliable internal gear pump is ideal for lubricating, lowpressure hydraulic, transfer, circulating, burner oil and many other industrial pump applications. It can be used in Air Conditioning Compressors, Gas Compressors, Gearboxes, Transmissions, Air Compressors, and Engines.
