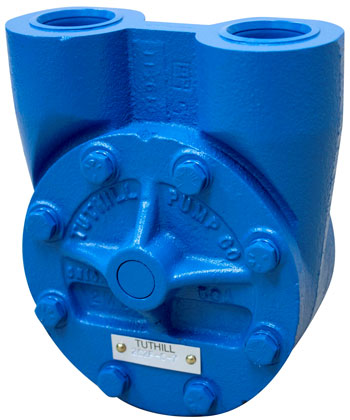

Tuthill # 2C2FN Rotary Gear Pump

Tuthill Pump 2C2FN

Tuthill # 2C2FN

Tuthill catalog # 2C2FN, Cast Iron Rotary Gear Pump, Pump End Only, no motor, Flange Mount, with Outboard Ball Bearing, standard shaft, and 1 Inch NPT by 1 Inch NPT ports.

Price : $ 950.25

Qty :

Same Day (4 in stock)



Product Information :

The Tuthill 2C2FN is a Cast Iron Rotary Gear Pump, Pump End Only, no motor, Flange Mount, with Outboard Ball Bearing, standard shaft, and 1 Inch NPT by 1 Inch NPT ports. This pump was specifically developed for flange mounting applications and for close coupling to Tuthill's special motors to provide extremely compact close-coupled combinations. This pump is supplied with a single spring-loaded lip seal, and can handle inlet pressures to 25 PSI, and has a maximum differential capability of 100 PSI. This pump has an outboard ball bearing and was specifically developed for use with belt drives or similar applications were a side load is applied to the pump shaft. Tuthill CF Series cast iron pumps employ the internal gear pumping principle. There are only two moving parts, and the pumping action is based on a rotor, idler gear, and crescent shaped partition cast integral with the cover. This pump can be driven in either direction of rotation, unless outfitted with an internal relief valve. This pump does NOT have an internal relief valve, so an external relief valve should be added somewhere on the discharge piping. Please note that this pump is a positive displacement pump and as the pump rotates, liquid is positively delivered to the discharge side of the pump. If the discharge line is closed off, pressure will increase until the drive stalls and/or fails, the pump breaks or ruptures, or the piping bursts. To prevent this from happening, the use of a pressure relief valve is required, or use of an in-line safety relief valve, pressure shutdown switch or other similar device. A relief valve that directs the flow back to the supply tank is recommended. This pump should not be used for handling plain water, corrosive or abrasive liquids or liquids not possessing adequate lubricity. Do not run the pump dry, as this could cause severe damage to the internal seal, bushings and/or metal parts.

Features :


Parts and Accessories for Tuthill model 2C2FN


Shaft Seal :

Catalog # 2CF94-7, Viton lip seal

Price: $ 188.80

Qty :

Can Ship : Same Day (5 in stock)

Applications

There are many applications that the Tuthill 2C2FN can be used in. Original Equipment Manufacturers worldwide incorporate these internal gear pumps into their products for lubrication and transfer service. It can be used in Air Conditioning Compressors, Gearboxes, Air Compressors, Gas Compressors, Engines, and Transmissions. This reliable internal gear pump is ideal for custom OEM lubricating, lowpressure hydraulic, transfer, circulating, burner oil and many other industrial pump applications.
