Tuthill model # 0LE-C-A-88604 - Cast Iron Rotary Gear Pump

Tuthill Pump 0LE-C-A-88604

Tuthill # 0LE-C-A-88604

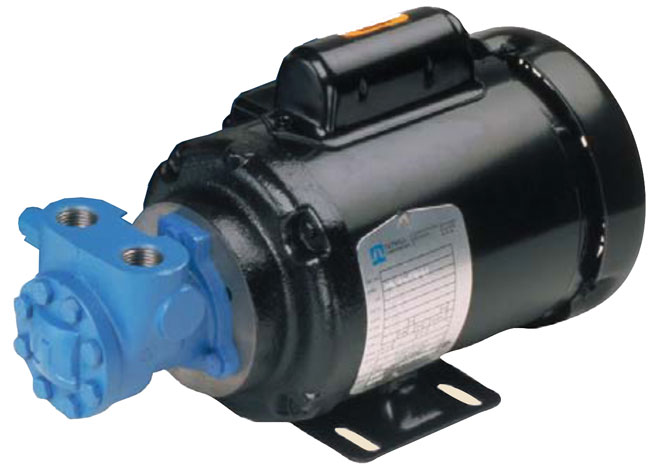

Tuthill catalog # 0LE-C-A-88604, Cast Iron Rotary Gear Pump and Motor assembly. L Series. Cast Iron Construction. Clockwise rotation only (from shaft end view). Tang Shaft. Motor is 1/2 Horsepower, 1725 RPM, 208-230/460, Three Phase, XP. Comes with 56YZ FRAME Electric Motor. Inlet Port is 1/2 inch NPT, Discharge Port is 1/2 inch NPT. *** NOTE : This catalog number has been updated by the manufacturer, and will ship as the Tuthill Pumps catalog # 0LE-C-A-7-88604.

Price : $ 2102.40

Qty :

Same Day (2 in stock)



Product Information :

Features :

Pump Body:
Cast Iron
Shaft Seal:
Mechanical Seal Viton
Port Size:
Inlet Port is 1/2 inch NPT, Discharge Port is 1/2 inch NPT.
Motor Specs :
1/2 Horsepower, 1725 RPM, 208-230/460, Three Phase, XP. 56YZ FRAME Electric Motor.

Applications

Applications Lubrication, Fluid Transfer, Filtration, Fuel Oil, Oil Burner Feed, Compressor, Refrigerators, Gear Boxes, Transmissions, Engines
