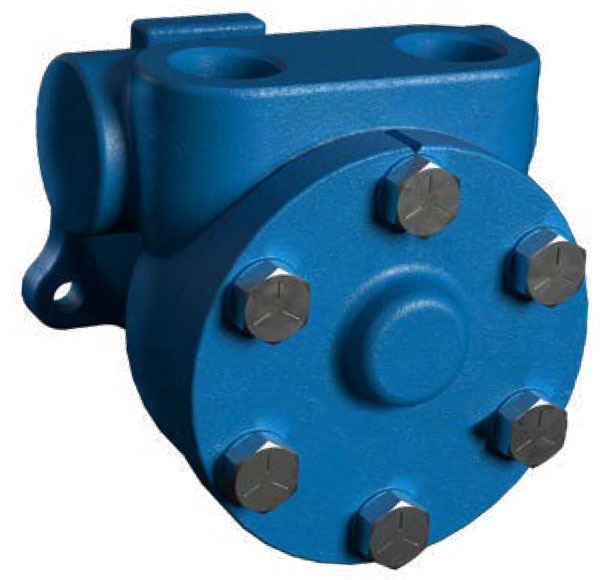

Tuthill # 0LE-C-A-7 Pump with Tang Shaft Viton seal

Tuthill Pump 0LE-C-A-7

Tuthill # 0LE-C-A-7

Tuthill catalog # 0LE-C-A-7, Cast Iron Rotary Gear Pump. Pump End Only. L Series. Cast Iron Construction NO motor. Tang Shaft. Inlet Port is 1/2 inch NPT, Discharge Port is 1/2 inch NPT.

Price : $ 462.24

Qty :

Same Day (2 in stock)

Click Here for PARTS


Product Information :

Tuthill 0LE Series are compact, highly efficient, cast iron positive displacement rotary gear pumps with a mechanical seal. Pumping action is based on a rotor, idler gear, and a cover cast with a crescent-shaped partition. They are self priming and particularly suited to handle liquids of 35 to 1000 SSU viscosity. Higher viscosities can be handled at reduced speeds. The pump has a non-pulsating flow and runs substantially quieter than other pump designs.

Features :

Pump Body:
Cast Iron
Shaft Seal:
Mechanical Seal Viton
Port Size:
Inlet Port is 1/2 inch NPT, Discharge Port is 1/2 inch NPT.

Product Specs :

Positive Displacement, Internal Rotary Gear Design

Open Flow at 1800 RPM : 1.8 GPM at 1800 RPM

Standard Discharge Pressure: up to 500 PSI

Inlet Pressure: up to 280 PSI

Maximum Differential Pressure: 300 PSI

Temperature: up to 375 F

Typical Viscosity Range: 40 to 1000 SSU

Parts and Accessories for Tuthill model 0LE-C-A-7

Shaft Seal :

Catalog # 1LA9-7, Viton Mechanical Seal

Price: $ 124.10

Qty :

Can Ship : Same Day (2 in stock)


Applications Lubrication, Fluid Transfer, Filtration, Fuel Oil, Oil Burner Feed, Compressor, Refrigerators, Gear Boxes, Transmissions, Engines
