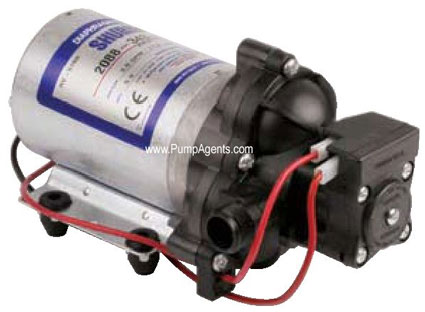

Shurflo # 2088-724-544 Diaphragm Pump with Automatic Switch - 12 VDC

Shurflo Pump 2088-724-544

Shurflo # 2088-724-544

Shurflo catalog # 2088-724-544, Diaphragm Pump with 12 Volt DC Motor and Automatic Switch. Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread.

Price : $ 460.51

Qty :

4 Weeks (out of stock)



Product Information :

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Polypropylene
Impeller:
EPDM
Shaft:
Santoprene
Port Size:
Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread.
Motor Specs :
12 Volt DC, Permanent Magnet, P/N 11-148-03, Thermally Protected.

Parts and Accessories for Shurflo model 2088-724-544

Applications

Industrial, General Purpose, Potable Water HARNESS 2Pin Trailer Connector w/6ft Leads 70018 Included DIMENSIONS
