Price Pump XT100SS-575-21266-500-36-1T6 Centrifugal Pump and motor

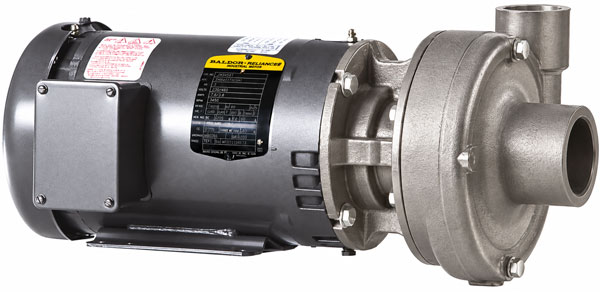

Price Pump XT100SS-575-21266-500-36-1T6

Price # XT100SS-575-21266-500-36-1T6

Price catalog # XT100SS-575-21266-500-36-1T6, Centrifugal Pump and Motor, with 316 Stainless Steel Volute, 5.75 inch 316 Stainless Steel Impeller, 316 Stainless Steel Bracket, PTFE gasket, Type 21 Viton/Silicon Carbide/Silicon Carbide Mechanical Seal, 1-1/2 Inch FNPT Suction x 1 Inch FNPT Discharge, close coupled to a 5 Horsepower, 3450 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) JM frame Motor.

Price : $ 7769.02

Qty :

Can Ship : 2 Weeks (0 in stock)

This will ship by Truck Freight LTL

Click Here for PARTS



Product Information :

XT100SS-575-21266-500-36-1T6 Parts Page Parts Page (click here)

The Price Pump XT100SS-575-21266-500-36-1T6 is a Close Coupled Centrifugal Pump and Motor unit, type XT series, with a 316 Stainless Steel volute, a 5.75 inch 316 Stainless Steel impeller, a 316 Stainless Steel bracket, Type 21 Viton/Silicon Carbide/Silicon Carbide Mechanical Seal, 1-1/2 Inch FNPT Suction x 1 Inch FNPT Discharge, and is close coupled to a 5 Horsepower, 3450 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) JM frame Motor. This pump is a compact close coupled centrifugal pump. A PTFE gasket seals the 316 Stainless Steel volute to the 316 Stainless Steel bracket. The keyed 316 Stainless Steel impeller sits on a 316 Stainless Steel shaft sleeve fitted to the shaft of a NEMA JM footed motor, held by an impeller lockdown, with no coupling and no alignment to hold. It handles liquid temperatures to 300 degrees F, with a maximum solid size of 0.120 inch. This unit is fitted with a Type 21 Viton/Silicon Carbide/Silicon Carbide Mechanical Seal and takes a 1-1/2 Inch FNPT Suction and a 1 Inch FNPT Discharge, and it must be run above its minimum flow of 10 GPM. Price Pump also offers this pump on an optional 56C frame motor or a 143TC to 184C frame motor, each with a stub shaft; ask us for a quote. It is also available with a different impeller diameter: XT100SS-598-21266-500-36-1T6 at 5.98 inch, XT100SS-550-21266-500-36-1T6 at 5.50 inch, XT100SS-500-21266-500-36-1T6 at 5.00 inch, XT100SS-450-21266-500-36-1T6 at 4.50 inch, XT100SS-400-21266-500-36-1T6 at 4.00 inch, XT100SS-350-21266-500-36-1T6 at 3.50 inch and XT100SS-300-21266-500-36-1T6 at 3.00 inch.

Parts and Accessories for Price model XT100SS-575-21266-500-36-1T6

Seal Kit :

Catalog # SKXTSS-21266, Seal Kit, Type 21 Viton/Silicon Carbide/Silicon Carbide, for Type XT pumps. Includes the mechanical seal 1008, the PTFE volute gasket 0301, and the two PTFE gaskets 0245 for the shaft sleeve and the impeller lockdown.

Price: $ 833.12

Qty :

Can Ship : Same Day (1 in stock)

Pump less Motor / Replacement Pumphead :

Catalog # XT100SS-575-21266, Centrifugal Pump End only, less motor, with 316 Stainless Steel Volute, 5.75 inch 316 Stainless Steel Impeller, 316 Stainless Steel Bracket, PTFE gasket, Type 21 Viton/Silicon Carbide/Silicon Carbide Mechanical Seal, 1-1/2 Inch FNPT Suction x 1 Inch FNPT Discharge. Replacement pump end only to be built onto an existing motor. This does not include the motor.

Price: $ 4671.95

Qty :

Can Ship : 2 Weeks (0 in stock)

Impeller :

Catalog # 2606-5.75, Impeller, 316 Stainless Steel, 5.75 Inch Diameter, trimmed to size from a larger impeller

Price: $ 1131.97

Qty :

Can Ship : 2 Weeks (0 in stock)

Shaft Seal :

Catalog # 1008, Mechanical Seal, Viton/Silicon Carbide/Silicon Carbide, single 1-1/2 Inch

Price: $ 767.55

Qty :

Can Ship : Same Day (1 in stock)

Casing frozen or cracked ? New Pump Casing :

Catalog # 2629, Volute, XT100, 316 Stainless Steel, tangential threaded

Price: $ 1675.92

Qty :

Can Ship : 2 Weeks (0 in stock)

Motor :

Catalog # 2351, Motor, 5 Horsepower, 3450 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) JM frame Motor

Price: $ 3097.07

Qty :

Can Ship : Same Day (2 in stock)

Applications

The Price Pump XT100SS-575-21266-500-36-1T6 is a type XT Close Coupled Centrifugal Pump, 1 x 1-1/2 x 6, with a 316 Stainless Steel volute, a 316 Stainless Steel impeller and a PTFE gasket.

It handles liquid temperatures up to 300 degrees F and heads to 150 feet. Minimum flow is 10 GPM and maximum flow is 120 GPM; it must be operated above the minimum flow to avoid damage. Temperature limits are based on standard seal and gasket materials, and will vary according to the liquid being pumped.

The maximum solid size is 0.120 inch, and the suction must be flooded. This unit is fitted with the Viton/Silicon Carbide/Silicon Carbide mechanical seal.

Typical Applications for the Price Pump XT100SS-575-21266-500-36-1T6 are waste water treatment, hot solvents, deionized water, chemical process, plating equipment and agricultural chemicals.

The mechanical seal is chosen for the liquid being pumped. The three digits after the seal type in the model number are its elastomer, its washer and its seat. The Price Pump manual lists chemical attack of the seal parts as a cause of a leaking seal, and temperature limits vary with the liquid and the sealing materials used. Check the materials against your liquid before ordering.

The XT100SS-575-21266-500-36-1T6 is fitted with the Type 21 Viton/Silicon Carbide/Silicon Carbide seal. The same pump is also available with these seals:

  • Type 21 Viton/Carbon/Ceramic seal: XT100SS-575-21211-500-36-1T6
  • Type 21 EPR/Carbon/Ceramic seal: XT100SS-575-21511-500-36-1T6
  • Type 21 Viton/Carbon/Tungsten Carbide seal: XT100SS-575-21214-500-36-1T6
  • Type 9 Teflon/Carbon/Ceramic seal: XT100SS-575-09311-500-36-1T6
  • Type 2 Buna/Carbon/Ceramic seal: XT100SS-575-02111-500-36-1T6
  • Type 2 Viton/Carbon/Ceramic seal: XT100SS-575-02211-500-36-1T6
  • Type 2 Neoprene/Carbon/Ceramic seal: XT100SS-575-02411-500-36-1T6
  • Type 2 EPR/Carbon/Ceramic seal: XT100SS-575-02511-500-36-1T6
  • Type 8 Viton/Carbon/Silicon Carbide seal: XT100SS-575-08216-500-36-1T6
  • Type 8 Kalrez/Carbon/Silicon Carbide seal: XT100SS-575-08616-500-36-1T6
