Price Pump XT100SF-500-21214 Centrifugal Pump less motor
Price # XT100SF-500-21214

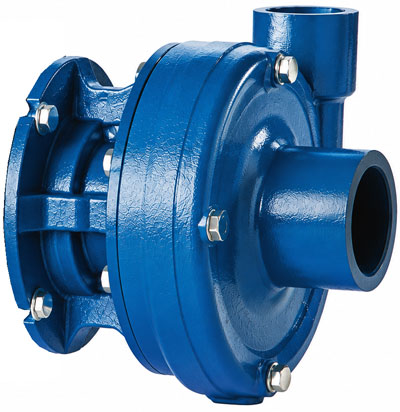

Price catalog # XT100SF-500-21214, Centrifugal Pump End only, less motor, with Cast Iron Volute, 5.00 inch 316 Stainless Steel Impeller, Cast Iron Bracket, synthetic fiber gasket, Type 21 Viton/Carbon/Tungsten Carbide Mechanical Seal, 1-1/2 Inch FNPT Suction x 1 Inch FNPT Discharge. Replacement pump end only to be built onto an existing motor. This does not include the motor.
Price : $ 3150.82
Product Information :
Parts Page (click here)The Price Pump XT100SF-500-21214 is a Close Coupled Centrifugal Pump End, type XT series, with a Cast Iron volute, a 5.00 inch 316 Stainless Steel impeller, a Cast Iron bracket, Type 21 Viton/Carbon/Tungsten Carbide Mechanical Seal, 1-1/2 Inch FNPT Suction x 1 Inch FNPT Discharge, and fits a NEMA JM footed motor. This pump end is a compact close coupled centrifugal pump end. A synthetic fiber gasket seals the Cast Iron volute to the Cast Iron bracket. The keyed 316 Stainless Steel impeller sits on a 316 Stainless Steel shaft sleeve fitted to the shaft of a NEMA JM footed motor, held by an impeller lockdown, with no coupling and no alignment to hold. It handles liquid temperatures to 300 degrees F, with a maximum solid size of 0.120 inch. This pump end is fitted with a Type 21 Viton/Carbon/Tungsten Carbide Mechanical Seal and takes a 1-1/2 Inch FNPT Suction and a 1 Inch FNPT Discharge, and it must be run above its minimum flow of 10 GPM. Price Pump also offers this pump on an optional 56C frame motor or a 143TC to 184C frame motor, each with a stub shaft; ask us for a quote. It is also available with a different impeller diameter: XT100SF-598-21214 at 5.98 inch, XT100SF-550-21214 at 5.50 inch, XT100SF-450-21214 at 4.50 inch, XT100SF-400-21214 at 4.00 inch, XT100SF-350-21214 at 3.50 inch and XT100SF-300-21214 at 3.00 inch. The impeller can also be trimmed to 5.75, 5.25, 4.75, 4.25, 3.75 and 3.25 inch, cut to order from the full size impeller, as XT100SF-575-21214, XT100SF-525-21214, XT100SF-475-21214, XT100SF-425-21214, XT100SF-375-21214 and XT100SF-325-21214. The curve does not draw these diameters; a trimmed pump takes the motor of the next larger diameter the curve does draw.
Parts and Accessories for Price model XT100SF-500-21214
Seal Kit :
Catalog # SKXT-21214, Seal Kit, Type 21 Viton/Carbon/Tungsten Carbide, for Type XT pumps. Includes the mechanical seal 0884, the synthetic fiber volute gasket 0124, and the two PTFE gaskets 0245 for the shaft sleeve and the impeller lockdown.
Price: $ 674.02
Impeller :
Catalog # 2606-5.00, Impeller, 316 Stainless Steel, 5.00 Inch Diameter, trimmed to size from a larger impeller
Price: $ 1131.97
Shaft Seal :
Catalog # 0884, Mechanical Seal, Viton/Carbon/Tungsten Carbide, single 1-1/2 Inch
Price: $ 638.55
Casing frozen or cracked ? New Pump Casing :
Catalog # 2601, Volute, XT100, Cast Iron, tangential threaded
Price: $ 553.62
Gasket/O-ring :
Catalog # 0124, Volute Gasket, Synthetic Fiber
Price: $ 20.43
Applications
The Price Pump XT100SF-500-21214 is a type XT Close Coupled Centrifugal Pump, 1 x 1-1/2 x 6, with a Cast Iron volute, a 316 Stainless Steel impeller and a synthetic fiber gasket.
It handles liquid temperatures up to 300 degrees F and heads to 150 feet. Minimum flow is 10 GPM and maximum flow is 120 GPM; it must be operated above the minimum flow to avoid damage. Temperature limits are based on standard seal and gasket materials, and will vary according to the liquid being pumped.
The maximum solid size is 0.120 inch, and the suction must be flooded. This pump end is fitted with the Viton/Carbon/Tungsten Carbide mechanical seal.
Typical Applications for the Price Pump XT100SF-500-21214 are waste water treatment, hot solvents, deionized water, chemical process, plating equipment and agricultural chemicals.
The mechanical seal is chosen for the liquid being pumped. The three digits after the seal type in the model number are its elastomer, its washer and its seat. The Price Pump manual lists chemical attack of the seal parts as a cause of a leaking seal, and temperature limits vary with the liquid and the sealing materials used. Check the materials against your liquid before ordering.
The XT100SF-500-21214 is fitted with the Type 21 Viton/Carbon/Tungsten Carbide seal. The same pump is also available with these seals:
- Type 21 Buna/Carbon/Ceramic seal: XT100SF-500-21111
- Type 21 Viton/Carbon/Ceramic seal: XT100SF-500-21211
- Type 21 EPR/Carbon/Ceramic seal: XT100SF-500-21511
- Type 21 Viton/Silicon Carbide/Silicon Carbide seal: XT100SF-500-21266
- Type 9 Teflon/Carbon/Ceramic seal: XT100SF-500-09311
- Type 2 Buna/Carbon/Ceramic seal: XT100SF-500-02111
- Type 2 Viton/Carbon/Ceramic seal: XT100SF-500-02211
- Type 2 Neoprene/Carbon/Ceramic seal: XT100SF-500-02411
- Type 2 EPR/Carbon/Ceramic seal: XT100SF-500-02511
- Type 8 Viton/Carbon/Silicon Carbide seal: XT100SF-500-08216
- Type 8 Kalrez/Carbon/Silicon Carbide seal: XT100SF-500-08616
