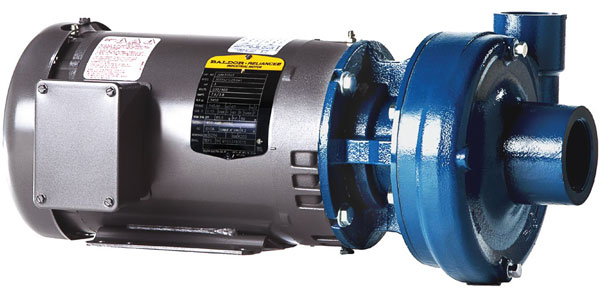

Price Pump XT100SF-375-09311-150-36-3T6 Centrifugal Pump and motor
Price # XT100SF-375-09311-150-36-3T6
Price catalog # XT100SF-375-09311-150-36-3T6, Centrifugal Pump and Motor, with Cast Iron Volute, 3.75 inch 316 Stainless Steel Impeller, Cast Iron Bracket, synthetic fiber gasket, Type 9 Teflon/Carbon/Ceramic Mechanical Seal, 1-1/2 Inch FNPT Suction x 1 Inch FNPT Discharge, close coupled to a 1-1/2 Horsepower, 3450 RPM, 60 HZ, 208-230/460 Volt, 3 Phase, TEFC (Totally Enclosed Fan Cooled) JM frame Motor.
Price : $ 4735.38
Product Information :
Parts Page (click here)The Price Pump XT100SF-375-09311-150-36-3T6 is a Close Coupled Centrifugal Pump and Motor unit, type XT series, with a Cast Iron volute, a 3.75 inch 316 Stainless Steel impeller, a Cast Iron bracket, Type 9 Teflon/Carbon/Ceramic Mechanical Seal, 1-1/2 Inch FNPT Suction x 1 Inch FNPT Discharge, and is close coupled to a 1-1/2 Horsepower, 3450 RPM, 60 HZ, 208-230/460 Volt, 3 Phase, TEFC (Totally Enclosed Fan Cooled) JM frame Motor. This pump is a compact close coupled centrifugal pump. A synthetic fiber gasket seals the Cast Iron volute to the Cast Iron bracket. The keyed 316 Stainless Steel impeller sits on a 316 Stainless Steel shaft sleeve fitted to the shaft of a NEMA JM footed motor, held by an impeller lockdown, with no coupling and no alignment to hold. It handles liquid temperatures to 300 degrees F, with a maximum solid size of 0.120 inch. This unit is fitted with a Type 9 Teflon/Carbon/Ceramic Mechanical Seal and takes a 1-1/2 Inch FNPT Suction and a 1 Inch FNPT Discharge, and it must be run above its minimum flow of 10 GPM. Price Pump also offers this pump on an optional 56C frame motor or a 143TC to 184C frame motor, each with a stub shaft; ask us for a quote. It is also available with a different impeller diameter: XT100SF-598-09311-150-36-3T6 at 5.98 inch, XT100SF-550-09311-150-36-3T6 at 5.50 inch, XT100SF-500-09311-150-36-3T6 at 5.00 inch, XT100SF-450-09311-150-36-3T6 at 4.50 inch, XT100SF-400-09311-150-36-3T6 at 4.00 inch, XT100SF-350-09311-150-36-3T6 at 3.50 inch and XT100SF-300-09311-150-36-3T6 at 3.00 inch.
Parts and Accessories for Price model XT100SF-375-09311-150-36-3T6
Seal Kit :
Catalog # SKXT-09311, Seal Kit, Type 9 Teflon/Carbon/Ceramic, for Type XT pumps. Includes the mechanical seal 0123, the synthetic fiber volute gasket 0124, the two PTFE gaskets 0245 for the shaft sleeve and the impeller lockdown, and the Type 9 seat pin 0890.
Price: $ 984.70
Pump less Motor / Replacement Pumphead :
Catalog # XT100SF-375-09311, Centrifugal Pump End only, less motor, with Cast Iron Volute, 3.75 inch 316 Stainless Steel Impeller, Cast Iron Bracket, synthetic fiber gasket, Type 9 Teflon/Carbon/Ceramic Mechanical Seal, 1-1/2 Inch FNPT Suction x 1 Inch FNPT Discharge. Replacement pump end only to be built onto an existing motor. This does not include the motor.
Price: $ 3457.20
Impeller :
Catalog # 2606-3.75, Impeller, 316 Stainless Steel, 3.75 Inch Diameter, trimmed to size from a larger impeller
Price: $ 1131.97
Shaft Seal :
Catalog # 0123, Mechanical Seal, Teflon/Carbon/Ceramic, single 1-1/2 Inch
Price: $ 944.92
Casing frozen or cracked ? New Pump Casing :
Catalog # 2601, Volute, XT100, Cast Iron, tangential threaded
Price: $ 553.62
Gasket/O-ring :
Catalog # 0124, Volute Gasket, Synthetic Fiber
Price: $ 20.43
Motor :
Catalog # 1366, Motor, 1-1/2 Horsepower, 3450 RPM, 60 HZ, 208-230/460 Volt, 3 Phase, TEFC (Totally Enclosed Fan Cooled) JM frame Motor
Price: $ 1278.17
Applications
The Price Pump XT100SF-375-09311-150-36-3T6 is a type XT Close Coupled Centrifugal Pump, 1 x 1-1/2 x 6, with a Cast Iron volute, a 316 Stainless Steel impeller and a synthetic fiber gasket.
It handles liquid temperatures up to 300 degrees F and heads to 150 feet. Minimum flow is 10 GPM and maximum flow is 120 GPM; it must be operated above the minimum flow to avoid damage. Temperature limits are based on standard seal and gasket materials, and will vary according to the liquid being pumped.
The maximum solid size is 0.120 inch, and the suction must be flooded. This unit is fitted with the Teflon/Carbon/Ceramic mechanical seal.
Typical Applications for the Price Pump XT100SF-375-09311-150-36-3T6 are waste water treatment, hot solvents, deionized water, chemical process, plating equipment and agricultural chemicals.
The mechanical seal is chosen for the liquid being pumped. The three digits after the seal type in the model number are its elastomer, its washer and its seat. The Price Pump manual lists chemical attack of the seal parts as a cause of a leaking seal, and temperature limits vary with the liquid and the sealing materials used. Check the materials against your liquid before ordering.
The XT100SF-375-09311-150-36-3T6 is fitted with the Type 9 Teflon/Carbon/Ceramic seal. The same pump is also available with these seals:
- Type 21 Buna/Carbon/Ceramic seal: XT100SF-375-21111-150-36-3T6
- Type 21 Viton/Carbon/Ceramic seal: XT100SF-375-21211-150-36-3T6
- Type 21 EPR/Carbon/Ceramic seal: XT100SF-375-21511-150-36-3T6
- Type 21 Viton/Carbon/Tungsten Carbide seal: XT100SF-375-21214-150-36-3T6
- Type 21 Viton/Silicon Carbide/Silicon Carbide seal: XT100SF-375-21266-150-36-3T6
- Type 2 Buna/Carbon/Ceramic seal: XT100SF-375-02111-150-36-3T6
- Type 2 Viton/Carbon/Ceramic seal: XT100SF-375-02211-150-36-3T6
- Type 2 Neoprene/Carbon/Ceramic seal: XT100SF-375-02411-150-36-3T6
- Type 2 EPR/Carbon/Ceramic seal: XT100SF-375-02511-150-36-3T6
- Type 8 Viton/Carbon/Silicon Carbide seal: XT100SF-375-08216-150-36-3T6
- Type 8 Kalrez/Carbon/Silicon Carbide seal: XT100SF-375-08616-150-36-3T6
