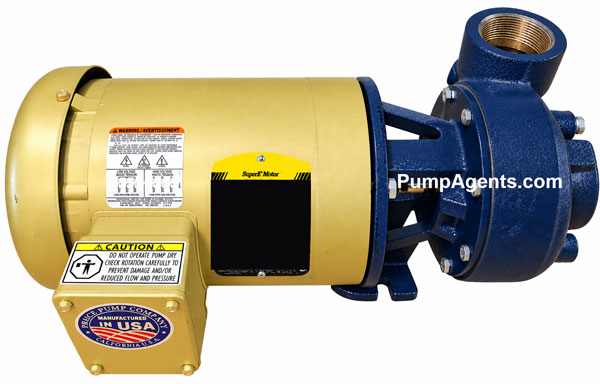

Price Pump RC200AI-400-6A211-200-36-1T6 Centrifugal Pump and motor
Price # RC200AI-400-6A211-200-36-1T6
Price catalog # RC200AI-400-6A211-200-36-1T6, Centrifugal Pump and Motor, with Cast Iron Volute, 4.00 inch Cast Iron Impeller, Cast Iron Bracket, Buna o-ring, 5/8 inch 316 stainless steel hex shaft, Type 6A Viton/Carbon/Ceramic Mechanical Seal, 2 Inch FNPT Suction x 2 Inch FNPT Discharge, close coupled to a 2 Horsepower, 3450 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) 56C frame Motor.
Price : $ 2687.50
Product Information :
Parts Page (click here)The Price Pump RC200AI-400-6A211-200-36-1T6 is a Close Coupled Centrifugal Pump and Motor unit, type RC series, with a Cast Iron volute, a 4.00 inch Cast Iron impeller, a Cast Iron bracket, a Buna o-ring, a 5/8 inch 316 stainless steel hex shaft, Type 6A Viton/Carbon/Ceramic Mechanical Seal, 2 Inch FNPT Suction x 2 Inch FNPT Discharge, and is close coupled to a 2 Horsepower, 3450 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) 56C frame Motor. This pump is a compact close coupled centrifugal pump. A Buna o-ring seals the Cast Iron volute to the Cast Iron bracket. The Cast Iron impeller is carried on a 5/8 inch 316 stainless steel hex shaft with setscrews that fits the shaft of a NEMA 56C footless motor, so the pump end mounts straight to the motor with no coupling and no alignment to hold. It handles liquid temperatures to 300 degrees F, with a maximum solid size of 0.380 inch. This unit is fitted with a Type 6A Viton/Carbon/Ceramic Mechanical Seal and takes a 2 Inch FNPT Suction and a 2 Inch FNPT Discharge, and it must be run above its minimum flow of 10 GPM. Other mechanical seals for this pump, each ordered by putting its seal code in place of 6A211 in the model number: Type 6A Buna/Carbon/Ceramic (6A111), Type 6A EPR/Carbon/Ceramic (6A511), Type 21 Viton/Carbon/Ceramic (21211), Type 21 EPR/Carbon/Ceramic (21511), Type 21 EPR/9055 Severe Duty Carbon/Silicon Carbide (21576), Type 9 Teflon/Carbon/Ceramic-Kalrez (09315), Type 6A Neoprene/Carbon/Ceramic (6A411, from Price Pump), Type 6A Buna/Carbon/Ni-Resist (6A112, from Price Pump), Type 21 Buna/Carbon/Ceramic (21111, from Price Pump), Type 21 Neoprene/Carbon/Ceramic (21411, from Price Pump), Type 21 Advantage Viton/GL Silicon Carbide/GL Silicon Carbide (21288, from Price Pump), Type 8 Viton/Carbon/Silicon Carbide (08216, from Price Pump) and Type 8 Kalrez/Carbon/Silicon Carbide (08616, from Price Pump). It is also available one size smaller, RC200AI-375-6A211-200-36-1T6 at 3.75 inch.
Parts and Accessories for Price model RC200AI-400-6A211-200-36-1T6
Seal Kit :
Catalog # SKRC-6A211, Seal Kit, Type 6A Viton/Carbon/Ceramic, for Type RC pumps. Includes the mechanical seal 0539 and the Buna volute o-ring 3074.
Price: $ 90.30
Pump less Motor / Replacement Pumphead :
Catalog # RC200AI-400-6A211, Centrifugal Pump End only, less motor, with Cast Iron Volute, 4.00 inch Cast Iron Impeller, Cast Iron Bracket, Buna o-ring, 5/8 inch 316 stainless steel hex shaft, Type 6A Viton/Carbon/Ceramic Mechanical Seal, 2 Inch FNPT Suction x 2 Inch FNPT Discharge. Replacement pump end only to be built onto an existing motor. This does not include the motor.
Price: $ 1324.40
Impeller :
Catalog # 4185-4.00, Impeller, Cast Iron, 4.00 Inch Diameter, hex bore, trimmed to size from a larger impeller
Price: $ 607.38
Shaft Seal :
Catalog # 0539, Mechanical Seal, Viton/Carbon/Ceramic, single 5/8 Inch
Price: $ 86.00
Casing frozen or cracked ? New Pump Casing :
Catalog # 0183-0, Volute, RC200, Cast Iron
Price: $ 655.75
Gasket/O-ring :
Catalog # 3074, Volute o-ring, Buna
Price: $ 4.30
Motor :
Catalog # 1254, Motor, 2 Horsepower, 3450 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) 56C frame Motor
Price: $ 1363.10
Applications
The Price Pump RC200AI-400-6A211-200-36-1T6 is a Type RC Close Coupled Centrifugal Pump, with a Cast Iron volute, a Cast Iron impeller and a Buna o-ring.
It handles liquid temperatures up to 300 degrees F. Minimum flow is 10 GPM; it must be operated above the minimum flow to avoid damage. Temperature limits are based on standard seal and gasket materials, and will vary according to the liquid being pumped.
The maximum solid size is 0.380 inch, and the suction must be flooded. This unit is fitted with the Viton/Carbon/Ceramic mechanical seal.
Typical Applications for the Price Pump RC200AI-400-6A211-200-36-1T6 are cooling towers, chemical transfer, circulating pumps, filter systems, circulating washers and machine tool coolants.
The mechanical seal is chosen for the liquid being pumped. The three digits after the seal type in the model number are its elastomer, its washer and its seat. The Price Pump manual lists chemical attack of the seal parts as a cause of a leaking seal, and temperature limits vary with the liquid and the sealing materials used. Check the materials against your liquid before ordering.
The RC200AI-400-6A211-200-36-1T6 is fitted with the Type 6A Viton/Carbon/Ceramic seal. The same pump is also available with these seals:
- Type 6A Buna/Carbon/Ceramic seal: RC200AI-400-6A111-200-36-1T6
- Type 6A Neoprene/Carbon/Ceramic seal: RC200AI-400-6A411-200-36-1T6
- Type 6A EPR/Carbon/Ceramic seal: RC200AI-400-6A511-200-36-1T6
- Type 6A Buna/Carbon/Ni-Resist seal: RC200AI-400-6A112-200-36-1T6
- Type 21 Viton/Carbon/Ceramic seal: RC200AI-400-21211-200-36-1T6
- Type 21 Buna/Carbon/Ceramic seal: RC200AI-400-21111-200-36-1T6
- Type 21 Neoprene/Carbon/Ceramic seal: RC200AI-400-21411-200-36-1T6
- Type 21 EPR/Carbon/Ceramic seal: RC200AI-400-21511-200-36-1T6
- Type 21 EPR/9055 Severe Duty Carbon/Silicon Carbide seal: RC200AI-400-21576-200-36-1T6
- Type 21 Advantage Viton/GL Silicon Carbide/GL Silicon Carbide seal: RC200AI-400-21288-200-36-1T6
- Type 9 Teflon/Carbon/Ceramic-Kalrez seal: RC200AI-400-09315-200-36-1T6
- Type 8 Viton/Carbon/Silicon Carbide seal: RC200AI-400-08216-200-36-1T6
- Type 8 Kalrez/Carbon/Silicon Carbide seal: RC200AI-400-08616-200-36-1T6
