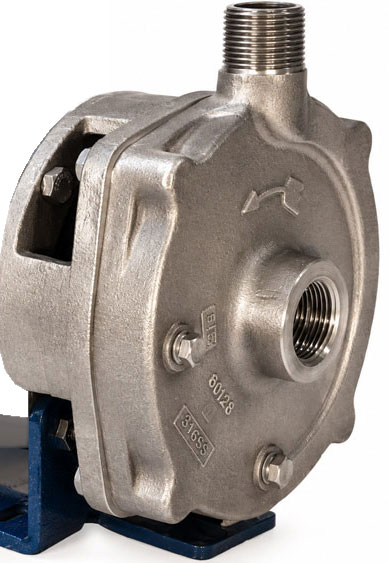

Price Pump HP75SC-600-21511 Centrifugal Pump less motor
Price # HP75SC-600-21511
Price catalog # HP75SC-600-21511, Centrifugal Pump End only, less motor, with 316 Stainless Steel Volute, 6.00 inch CPVC Impeller, 316 Stainless Steel Bracket, Viton o-ring, Type 21 EPR/Carbon/Ceramic Mechanical Seal, 3/4 Inch FNPT Suction x 3/4 Inch FNPT Discharge. Replacement pump end only to be built onto an existing motor. This does not include the motor.
Price : $ 1300.55
Product Information :
Parts Page (click here)The Price Pump HP75SC-600-21511 is a Close Coupled Centrifugal Pump End, type HP series, with a 316 Stainless Steel volute, a 6.00 inch CPVC impeller, a 316 Stainless Steel bracket, Type 21 EPR/Carbon/Ceramic Mechanical Seal, 3/4 Inch FNPT Suction x 3/4 Inch FNPT Discharge, and fits a NEMA 56J footless motor. This pump end is a compact close coupled centrifugal pump end. It has a 316 Stainless Steel bracket and a Viton volute o-ring. The CPVC impeller threads onto the motor shaft, so the pump end mounts straight to a NEMA 56J footless motor with no coupling and no alignment to hold. It handles liquid temperatures to 160 degrees F and heads to 180 feet, with a maximum solid size of 0.030 inch and a Pump Energy Index of .746 to .892. This pump end is fitted with a Type 21 EPR/Carbon/Ceramic Mechanical Seal and takes a 3/4 Inch FNPT Suction and a 3/4 Inch FNPT Discharge, and it must be run above its minimum flow of 0.5 GPM. It is also available with a different impeller diameter: HP75SC-575-21511 at 5.75 inch, HP75SC-550-21511 at 5.50 inch, HP75SC-500-21511 at 5.00 inch, HP75SC-450-21511 at 4.50 inch and HP75SC-400-21511 at 4.00 inch. The impeller can also be trimmed to 5.25, 4.75 and 4.25 inch, trimmed at the factory from the full size impeller, as HP75SC-525-21511, HP75SC-475-21511 and HP75SC-425-21511. The curve does not draw these diameters; a trimmed pump takes the motor of the next larger diameter the curve does draw.
Parts and Accessories for Price model HP75SC-600-21511
Minor Service Kit :
Catalog # 0661SC, Repair Kit for Type HP SC pumps. Includes the 6.00 inch CPVC impeller, the Viton o-ring and the slinger. Does NOT include the mechanical seal, which is ordered separately
Price: $ 222.60
Impeller :
Catalog # 0918-6.00, Impeller, CPVC, 6.00 Inch Diameter
Price: $ 225.75
Shaft Seal :
Catalog # 0663, Mechanical Seal, EPR/Carbon/Ceramic, single 5/8 Inch
Price: $ 95.55
Casing frozen or cracked ? New Pump Casing :
Catalog # 0241, Volute, HP75, 316 Stainless Steel
Price: $ 743.40
Gasket/O-ring :
Catalog # 3565, Volute o-ring, Viton
Price: $ 9.45
Applications
The Price Pump HP75SC-600-21511 is a Type HP Close Coupled Centrifugal Pump, with a 316 Stainless Steel volute, a CPVC impeller and a Viton o-ring.
It handles liquid temperatures up to 160 degrees F and develops up to 180 feet of head. Maximum flow is 20 GPM and minimum flow is 0.5 GPM; it must be operated above the minimum flow to avoid damage. Temperature limits are based on standard seal and gasket materials, and will vary according to the liquid being pumped.
The maximum solid size is 0.030 inch, and the suction must be flooded. This pump end is fitted with the EPR/Carbon/Ceramic mechanical seal.
Typical Applications for the Price Pump HP75SC-600-21511 are chillers and liquid cooling, chemical processing, booster pumps, water purification, circulation and filtration and air conditioning and heat recovery.
The mechanical seal is chosen for the liquid being pumped. The three digits after the seal type in the model number are its elastomer, its washer and its seat. The Price Pump manual lists chemical attack of the seal parts as a cause of a leaking seal, and temperature limits vary with the liquid and the sealing materials used. Check the materials against your liquid before ordering.
The HP75SC-600-21511 is fitted with the Type 21 EPR/Carbon/Ceramic seal. The same pump is also available with these seals:
- Type 21 Viton/Carbon/Ceramic seal: HP75SC-600-21211
- Type 21 Buna/Carbon/Ceramic seal: HP75SC-600-21111
- Type 21 Neoprene/Carbon/Ceramic seal: HP75SC-600-21411
- Type 21 EPR/9055 Severe Duty Carbon/Silicon Carbide seal: HP75SC-600-21576
- Type 21 Advantage Viton/GL Silicon Carbide/GL Silicon Carbide seal: HP75SC-600-21288
- Type 21 Advantage EPR/GL Silicon Carbide/GL Silicon Carbide seal: HP75SC-600-21588
