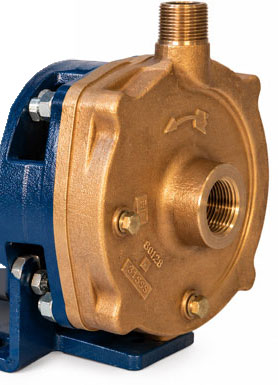

Price Pump HP75BS-400-21511 Centrifugal Pump less motor
Price # HP75BS-400-21511
Price catalog # HP75BS-400-21511, Centrifugal Pump End only, less motor, with Bronze Volute, 4.00 inch 316 Stainless Steel Impeller, Cast Iron Bracket, EPR end bell gasket, Type 21 EPR/Carbon/Ceramic Mechanical Seal, 3/4 Inch FNPT Suction x 3/4 Inch FNPT Discharge. Replacement pump end only to be built onto an existing motor. This does not include the motor.
Price : $ 1739.45
Product Information :
Parts Page (click here)The Price Pump HP75BS-400-21511 is a Close Coupled Centrifugal Pump End, type HP series, with a Bronze volute, a 4.00 inch 316 Stainless Steel impeller, a Cast Iron bracket, Type 21 EPR/Carbon/Ceramic Mechanical Seal, 3/4 Inch FNPT Suction x 3/4 Inch FNPT Discharge, and fits a NEMA 56J footless motor. This pump end is a compact close coupled centrifugal pump end. The EPR end bell gasket isolates the cast iron motor bracket from the liquid. The 316 Stainless Steel impeller threads onto the motor shaft, so the pump end mounts straight to a NEMA 56J footless motor with no coupling and no alignment to hold. It handles liquid temperatures to 300 degrees F and heads to 165 feet, with a maximum solid size of 0.030 inch and a Pump Energy Index of .746 to .892. This pump end is fitted with a Type 21 EPR/Carbon/Ceramic Mechanical Seal and takes a 3/4 Inch FNPT Suction and a 3/4 Inch FNPT Discharge, and it must be run above its minimum flow of 0.5 GPM. It is also available with a different impeller diameter: HP75BS-600-21511 at 6.00 inch, HP75BS-550-21511 at 5.50 inch, HP75BS-500-21511 at 5.00 inch and HP75BS-450-21511 at 4.50 inch. The impeller can also be trimmed to 5.75, 5.25, 4.75 and 4.25 inch, cut to order from the full size impeller, as HP75BS-575-21511, HP75BS-525-21511, HP75BS-475-21511 and HP75BS-425-21511. The curve does not draw these diameters; a trimmed pump takes the motor of the next larger diameter the curve does draw.
Parts and Accessories for Price model HP75BS-400-21511
Impeller :
Catalog # 0918SS-4.00, Impeller, 316 Stainless Steel, 4.00 Inch Diameter, trimmed to size from a larger impeller
Price: $ 668.85
Shaft Seal :
Catalog # 0663, Mechanical Seal, EPR/Carbon/Ceramic, single 5/8 Inch
Price: $ 95.55
Casing frozen or cracked ? New Pump Casing :
Catalog # 0229, Volute, HP75, Bronze
Price: $ 843.15
Gasket/O-ring :
Catalog # 0232, End Bell Gasket, EPDM
Price: $ 110.25
Applications
The Price Pump HP75BS-400-21511 is a Type HP Close Coupled Centrifugal Pump, with a Bronze volute, a 316 Stainless Steel impeller and an EPR end bell gasket.
It handles liquid temperatures up to 300 degrees F and develops up to 165 feet of head. Maximum flow is 55 GPM and minimum flow is 0.5 GPM; it must be operated above the minimum flow to avoid damage. Temperature limits are based on standard seal and gasket materials, and will vary according to the liquid being pumped.
The maximum solid size is 0.030 inch, and the suction must be flooded. This pump end is fitted with the EPR/Carbon/Ceramic mechanical seal.
Typical Applications for the Price Pump HP75BS-400-21511 are chillers and liquid cooling, chemical processing, booster pumps, water purification, circulation and filtration and air conditioning and heat recovery.
The mechanical seal is chosen for the liquid being pumped. The three digits after the seal type in the model number are its elastomer, its washer and its seat. The Price Pump manual lists chemical attack of the seal parts as a cause of a leaking seal, and temperature limits vary with the liquid and the sealing materials used. Check the materials against your liquid before ordering.
The HP75BS-400-21511 is fitted with the Type 21 EPR/Carbon/Ceramic seal. The same pump is also available with these seals:
- Type 6 Buna/Carbon/Ceramic seal: HP75BS-400-06111
- Type 21 Viton/Carbon/Ceramic seal: HP75BS-400-21211
- Type 6 Buna/Carbon/Ni-Resist seal: HP75BS-400-06112
- Type 21 Buna/Carbon/Ceramic seal: HP75BS-400-21111
- Type 21 Neoprene/Carbon/Ceramic seal: HP75BS-400-21411
- Type 21 EPR/9055 Severe Duty Carbon/Silicon Carbide seal: HP75BS-400-21576
- Type 21 Advantage Viton/GL Silicon Carbide/GL Silicon Carbide seal: HP75BS-400-21288
- Type 21 Advantage EPR/GL Silicon Carbide/GL Silicon Carbide seal: HP75BS-400-21588
