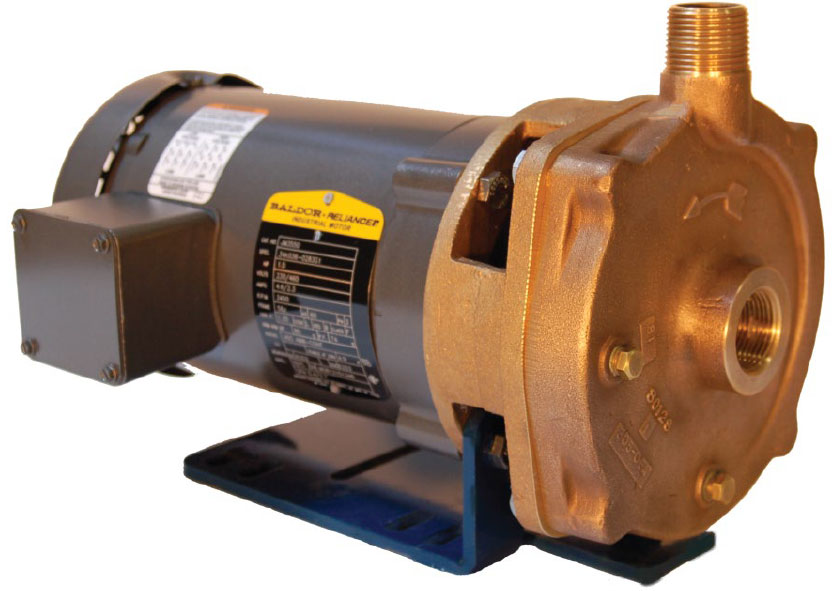

Price Pump HP75AB-525-21511-75-18-1D6 Centrifugal Pump and motor
Price # HP75AB-525-21511-75-18-1D6
Price catalog # HP75AB-525-21511-75-18-1D6, Centrifugal Pump and Motor, with Bronze Volute, 5.25 inch Bronze Impeller, Bronze Bracket, Viton o-ring, Type 21 EPR/Carbon/Ceramic Mechanical Seal, 3/4 Inch FNPT Suction x 3/4 Inch FNPT Discharge, close coupled to a 3/4 Horsepower, 1750 RPM, 60 HZ, 115/230 Volt, 1 Phase, ODP (Open Drip Proof) 56J frame Motor.
Price : $ 2916.50
Product Information :
Parts Page (click here)The Price Pump HP75AB-525-21511-75-18-1D6 is a Close Coupled Centrifugal Pump and Motor unit, type HP series, with a Bronze volute, a 5.25 inch Bronze impeller, a Bronze bracket, Type 21 EPR/Carbon/Ceramic Mechanical Seal, 3/4 Inch FNPT Suction x 3/4 Inch FNPT Discharge, and is close coupled to a 3/4 Horsepower, 1750 RPM, 60 HZ, 115/230 Volt, 1 Phase, ODP (Open Drip Proof) 56J frame Motor. This pump is a compact close coupled centrifugal pump. It has a Bronze bracket and a Viton volute o-ring. The Bronze impeller threads onto the motor shaft, so the pump end mounts straight to a NEMA 56J footless motor with no coupling and no alignment to hold. It handles liquid temperatures to 300 degrees F and heads to 180 feet, with a maximum solid size of 0.030 inch and a Pump Energy Index of .746 to .892. This unit is fitted with a Type 21 EPR/Carbon/Ceramic Mechanical Seal and takes a 3/4 Inch FNPT Suction and a 3/4 Inch FNPT Discharge, and it must be run above its minimum flow of 0.5 GPM. It is also available with a different impeller diameter: HP75AB-600-21511-75-18-1D6 at 6.00 inch, HP75AB-550-21511-75-18-1D6 at 5.50 inch, HP75AB-500-21511-75-18-1D6 at 5.00 inch, HP75AB-450-21511-75-18-1D6 at 4.50 inch and HP75AB-400-21511-75-18-1D6 at 4.00 inch.
Parts and Accessories for Price model HP75AB-525-21511-75-18-1D6
Pump less Motor / Replacement Pumphead :
Catalog # HP75AB-525-21511, Centrifugal Pump End only, less motor, with Bronze Volute, 5.25 inch Bronze Impeller, Bronze Bracket, Viton o-ring, Type 21 EPR/Carbon/Ceramic Mechanical Seal, 3/4 Inch FNPT Suction x 3/4 Inch FNPT Discharge. Replacement pump end only to be built onto an existing motor. This does not include the motor.
Price: $ 1895.25
Shaft Seal :
Catalog # 0663, Mechanical Seal, EPR/Carbon/Ceramic, single 5/8 Inch
Price: $ 95.55
Casing frozen or cracked ? New Pump Casing :
Catalog # 0229-0, Volute, HP75, Bronze
Price: $ 942.90
Gasket/O-ring :
Catalog # 3565, Volute o-ring, Viton
Price: $ 9.45
Motor :
Catalog # 3887, Motor, 3/4 Horsepower, 1750 RPM, 60 HZ, 115/230 Volt, 1 Phase, ODP (Open Drip Proof) 56J frame Motor
Price: $ 1128.75
Applications
The Price Pump HP75AB-525-21511-75-18-1D6 is a Type HP Close Coupled Centrifugal Pump, with a Bronze volute, a Bronze impeller and a Viton o-ring.
It handles liquid temperatures up to 300 degrees F and develops up to 180 feet of head. Maximum flow is 68 GPM and minimum flow is 0.5 GPM; it must be operated above the minimum flow to avoid damage. Temperature limits are based on standard seal and gasket materials, and will vary according to the liquid being pumped.
The maximum solid size is 0.030 inch, and the suction must be flooded. This unit is fitted with the EPR/Carbon/Ceramic mechanical seal.
Typical Applications for the Price Pump HP75AB-525-21511-75-18-1D6 are chillers and liquid cooling, chemical processing, booster pumps, water purification, circulation and filtration and air conditioning and heat recovery.
The mechanical seal is chosen for the liquid being pumped. The three digits after the seal type in the model number are its elastomer, its washer and its seat. The Price Pump manual lists chemical attack of the seal parts as a cause of a leaking seal, and temperature limits vary with the liquid and the sealing materials used. Check the materials against your liquid before ordering.
The HP75AB-525-21511-75-18-1D6 is fitted with the Type 21 EPR/Carbon/Ceramic seal. The same pump is also available with these seals:
- Type 21 Viton/Carbon/Ceramic seal: HP75AB-525-21211-75-18-1D6
- Type 21 Buna/Carbon/Ceramic seal: HP75AB-525-21111-75-18-1D6
- Type 21 Neoprene/Carbon/Ceramic seal: HP75AB-525-21411-75-18-1D6
- Type 21 EPR/9055 Severe Duty Carbon/Silicon Carbide seal: HP75AB-525-21576-75-18-1D6
- Type 21 Advantage Viton/GL Silicon Carbide/GL Silicon Carbide seal: HP75AB-525-21288-75-18-1D6
- Type 21 Advantage EPR/GL Silicon Carbide/GL Silicon Carbide seal: HP75AB-525-21588-75-18-1D6
