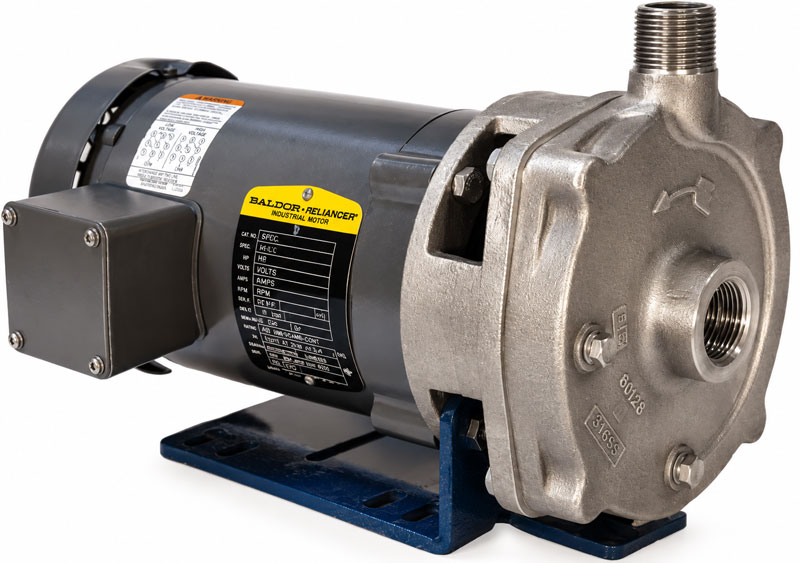

Price Pump HP100SS-600-21511-75-18-1T6 Centrifugal Pump and motor
Price # HP100SS-600-21511-75-18-1T6
Price catalog # HP100SS-600-21511-75-18-1T6, Centrifugal Pump and Motor, with 316 Stainless Steel Volute, 6.00 inch 316 Stainless Steel Impeller, 316 Stainless Steel Bracket, Viton o-ring, Type 21 EPR/Carbon/Ceramic Mechanical Seal, 1 Inch FNPT Suction x 1 Inch MNPT Discharge, close coupled to a 3/4 Horsepower, 1750 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) 56J frame Motor.
Price : $ 2770.20
Product Information :
Parts Page (click here)The Price Pump HP100SS-600-21511-75-18-1T6 is a Close Coupled Centrifugal Pump and Motor unit, type HP series, with a 316 Stainless Steel volute, a 6.00 inch 316 Stainless Steel impeller, a 316 Stainless Steel bracket, Type 21 EPR/Carbon/Ceramic Mechanical Seal, 1 Inch FNPT Suction x 1 Inch MNPT Discharge, and is close coupled to a 3/4 Horsepower, 1750 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) 56J frame Motor. This pump is a compact close coupled centrifugal pump. It has a 316 Stainless Steel bracket and a Viton volute o-ring. The 316 Stainless Steel impeller threads onto the motor shaft, so the pump end mounts straight to a NEMA 56J footless motor with no coupling and no alignment to hold. It handles liquid temperatures to 300 degrees F and heads to 180 feet, with a maximum solid size of 0.030 inch and a Pump Energy Index of .746 to .892. This unit is fitted with a Type 21 EPR/Carbon/Ceramic Mechanical Seal and takes a 1 Inch FNPT Suction and a 1 Inch MNPT Discharge, and it must be run above its minimum flow of 0.5 GPM. It is also available with a different impeller diameter: HP100SS-550-21511-75-18-1T6 at 5.50 inch, HP100SS-500-21511-75-18-1T6 at 5.00 inch, HP100SS-450-21511-75-18-1T6 at 4.50 inch and HP100SS-400-21511-75-18-1T6 at 4.00 inch. The impeller can also be trimmed to 5.75 inch, cut to order from the full size impeller, as HP100SS-575-21511-75-18-1T6 with the same motor.
Parts and Accessories for Price model HP100SS-600-21511-75-18-1T6
Pump less Motor / Replacement Pumphead :
Catalog # HP100SS-600-21511, Centrifugal Pump End only, less motor, with 316 Stainless Steel Volute, 6.00 inch 316 Stainless Steel Impeller, 316 Stainless Steel Bracket, Viton o-ring, Type 21 EPR/Carbon/Ceramic Mechanical Seal, 1 Inch FNPT Suction x 1 Inch MNPT Discharge. Replacement pump end only to be built onto an existing motor. This does not include the motor.
Price: $ 1577.95
Impeller :
Catalog # 0918SS-6.00, Impeller, 316 Stainless Steel, 6.00 Inch Diameter
Price: $ 548.10
Shaft Seal :
Catalog # 0663, Mechanical Seal, EPR/Carbon/Ceramic, single 5/8 Inch
Price: $ 95.55
Casing frozen or cracked ? New Pump Casing :
Catalog # 0241-2, Volute, HP100, 316 Stainless Steel
Price: $ 947.10
Gasket/O-ring :
Catalog # 3565, Volute o-ring, Viton
Price: $ 9.45
Motor :
Catalog # 1420, Motor, 3/4 Horsepower, 1750 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) 56J frame Motor
Price: $ 1317.75
Applications
The Price Pump HP100SS-600-21511-75-18-1T6 is a Type HP Close Coupled Centrifugal Pump, with a 316 Stainless Steel volute, a 316 Stainless Steel impeller and a Viton o-ring.
It handles liquid temperatures up to 300 degrees F and develops up to 180 feet of head. Maximum flow is 68 GPM and minimum flow is 0.5 GPM; it must be operated above the minimum flow to avoid damage. Temperature limits are based on standard seal and gasket materials, and will vary according to the liquid being pumped.
The maximum solid size is 0.030 inch, and the suction must be flooded. This unit is fitted with the EPR/Carbon/Ceramic mechanical seal.
Typical Applications for the Price Pump HP100SS-600-21511-75-18-1T6 are chillers and liquid cooling, chemical processing, booster pumps, water purification, circulation and filtration and air conditioning and heat recovery.
The mechanical seal is chosen for the liquid being pumped. The three digits after the seal type in the model number are its elastomer, its washer and its seat. The Price Pump manual lists chemical attack of the seal parts as a cause of a leaking seal, and temperature limits vary with the liquid and the sealing materials used. Check the materials against your liquid before ordering.
The HP100SS-600-21511-75-18-1T6 is fitted with the Type 21 EPR/Carbon/Ceramic seal. The same pump is also available with these seals:
- Type 21 Viton/Carbon/Ceramic seal: HP100SS-600-21211-75-18-1T6
- Type 21 Buna/Carbon/Ceramic seal: HP100SS-600-21111-75-18-1T6
- Type 21 Neoprene/Carbon/Ceramic seal: HP100SS-600-21411-75-18-1T6
- Type 21 EPR/9055 Severe Duty Carbon/Silicon Carbide seal: HP100SS-600-21576-75-18-1T6
- Type 21 Advantage Viton/GL Silicon Carbide/GL Silicon Carbide seal: HP100SS-600-21288-75-18-1T6
- Type 21 Advantage EPR/GL Silicon Carbide/GL Silicon Carbide seal: HP100SS-600-21588-75-18-1T6
