Price Pump F50AB-381-6A211-50-36-3T7 Centrifugal Pump and motor

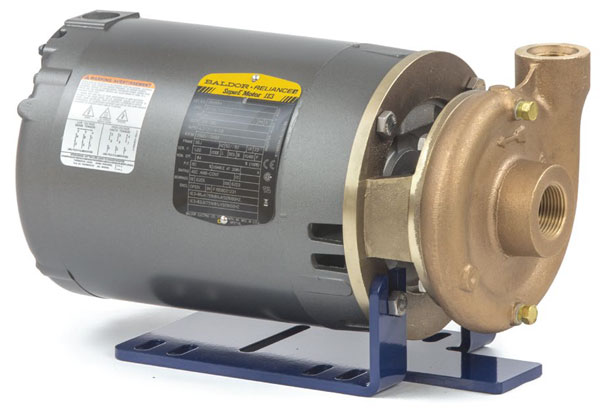

Price Pump F50AB-381-6A211-50-36-3T7

Price # F50AB-381-6A211-50-36-3T7

Price catalog # F50AB-381-6A211-50-36-3T7, Centrifugal Pump and Motor, with Bronze Volute, 3.81 inch Bronze Impeller, Bronze Bracket, vegetable fiber gasket, Type 6A Viton/Carbon/Ceramic Mechanical Seal, 3/4 Inch FNPT Suction x 1/2 Inch FNPT Discharge, close coupled to a 1/2 Horsepower, 3450 RPM, 50/60 HZ, 208-230/460 Volt, 3 Phase, TEFC (Totally Enclosed Fan Cooled) 56J frame Motor. *** NOTE : this design is intended for liquids with low Specific Gravities and may overload the motor if used with water or higher Specific Gravity liquids.

Price : $ 1802.15

Qty :

Can Ship : Next Day (2 units available)

Click Here for PARTS



Product Information :

F50AB-381-6A211-50-36-3T7 Parts Page Parts Page (click here)

The Price Pump F50AB-381-6A211-50-36-3T7 is a Close Coupled Centrifugal Pump and Motor unit, type F series, with a Bronze volute, a 3.81 inch Bronze impeller, a Bronze bracket, Type 6A Viton/Carbon/Ceramic Mechanical Seal, 3/4 Inch FNPT Suction x 1/2 Inch FNPT Discharge, and is close coupled to a 1/2 Horsepower, 3450 RPM, 50/60 HZ, 208-230/460 Volt, 3 Phase, TEFC (Totally Enclosed Fan Cooled) 56J frame Motor. *** NOTE : this design is intended for liquids with low Specific Gravities and may overload the motor if used with water or higher Specific Gravity liquids. This pump is a compact close coupled centrifugal pump. A vegetable fiber gasket seals the Bronze volute to the Bronze bracket. The Bronze impeller threads onto the motor shaft, so the pump end mounts straight to a NEMA 56J footless motor with no coupling and no alignment to hold. It handles liquid temperatures to 200 degrees F, with a maximum solid size of 0.150 inch. This unit is fitted with a Type 6A Viton/Carbon/Ceramic Mechanical Seal and takes a 3/4 Inch FNPT Suction and a 1/2 Inch FNPT Discharge, and it must be run above its minimum flow of 5 GPM. *** NOTE : this design is intended for liquids with low Specific Gravities and may overload the motor if used with water or higher Specific Gravity liquids. It is also available with a different impeller diameter: F50AB-394-6A211-50-36-3T7 at 3.94 inch and F50AB-369-6A211-50-36-3T7 at 3.69 inch.

Parts and Accessories for Price model F50AB-381-6A211-50-36-3T7

Pump less Motor / Replacement Pumphead :

Catalog # F50AB-381-6A211, Centrifugal Pump End only, less motor, with Bronze Volute, 3.81 inch Bronze Impeller, Bronze Bracket, vegetable fiber gasket, Type 6A Viton/Carbon/Ceramic Mechanical Seal, 3/4 Inch FNPT Suction x 1/2 Inch FNPT Discharge. Replacement pump end only to be built onto an existing motor. This does not include the motor.

Price: $ 1312.90

Qty :

Can Ship : Same Day (2 in stock)

Impeller :

Catalog # 0196-3.81, Impeller, Bronze, 3.81 Inch Diameter, trimmed to size from a larger impeller

Price: $ 310.80

Qty :

Can Ship : Same Day (2 in stock)

Shaft Seal :

Catalog # 0539, Mechanical Seal, Viton/Carbon/Ceramic, single 5/8 Inch

Price: $ 84.00

Qty :

Can Ship : Same Day (4 in stock)

Gasket/O-ring :

Catalog # 0508, Volute Gasket, Vegetable Fiber

Price: $ 14.70

Qty :

Can Ship : Same Day (4 in stock)

Motor :

Catalog # 1315, Motor, 1/2 Horsepower, 3450 RPM, 50/60 HZ, 208-230/460 Volt, 3 Phase, TEFC (Totally Enclosed Fan Cooled) 56J frame Motor

Price: $ 540.75

Qty :

Can Ship : Same Day (2 in stock)

Applications

The Price Pump F50AB-381-6A211-50-36-3T7 is a Type F Close Coupled Centrifugal Pump, with a Bronze volute, a Bronze impeller and a vegetable fiber gasket.

It handles liquid temperatures up to 200 degrees F. Minimum flow is 5 GPM; it must be operated above the minimum flow to avoid damage. Temperature limits are based on standard seal and gasket materials, and will vary according to the liquid being pumped.

The maximum solid size is 0.150 inch, and the suction must be flooded. This unit is fitted with the Viton/Carbon/Ceramic mechanical seal.

Typical Applications for the Price Pump F50AB-381-6A211-50-36-3T7 are street sweeper pumps, engine coolant pumps, carpet cleaners, bilge pumps, bait tank pumps, brine circulation, filtration and general purpose pumps.

The mechanical seal is chosen for the liquid being pumped. The three digits after the seal type in the model number are its elastomer, its washer and its seat. The Price Pump manual lists chemical attack of the seal parts as a cause of a leaking seal, and temperature limits vary with the liquid and the sealing materials used. Check the materials against your liquid before ordering.

The F50AB-381-6A211-50-36-3T7 is fitted with the Type 6A Viton/Carbon/Ceramic seal. The same pump is also available with these seals:

  • Type 6A Buna/Carbon/Ceramic seal: F50AB-381-6A111-50-36-3T7
  • Type 6A Neoprene/Carbon/Ceramic seal: F50AB-381-6A411-50-36-3T7
  • Type 6A EPR/Carbon/Ceramic seal: F50AB-381-6A511-50-36-3T7
  • Type 6A Buna/Carbon/Ni-Resist seal: F50AB-381-6A112-50-36-3T7
  • Type 9 Teflon/Carbon/Ceramic-Kalrez seal: F50AB-381-09315-50-36-3T7
  • Type 21 Buna/Carbon/Ceramic seal: F50AB-381-21111-50-36-3T7
  • Type 21 Viton/Carbon/Ceramic seal: F50AB-381-21211-50-36-3T7
  • Type 21 Neoprene/Carbon/Ceramic seal: F50AB-381-21411-50-36-3T7
  • Type 21 EPR/Carbon/Ceramic seal: F50AB-381-21511-50-36-3T7
