Onan # 132-0110 Engine Cooling Pump

Onan Pump 132-0110

Onan # 132-0110

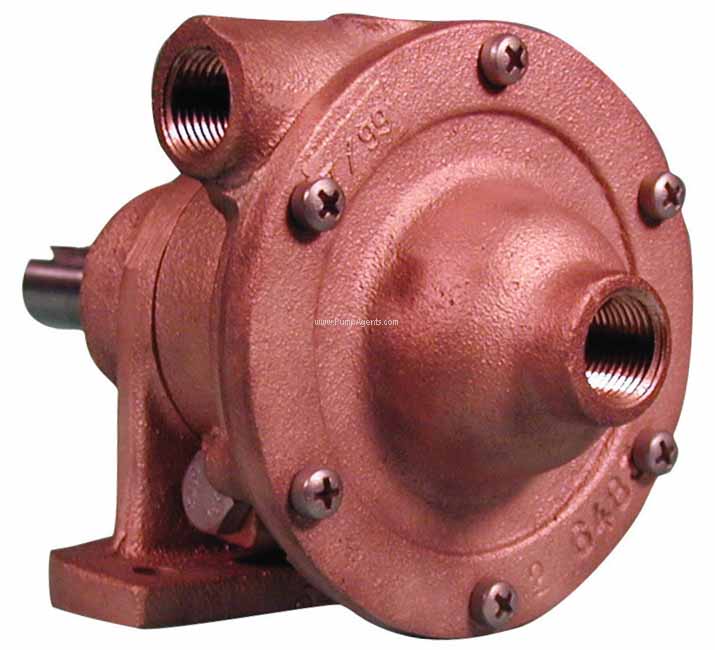

Onan catalog # 132-0110, Onan Engine Cooling Seawater Pump, Original Equipment Cummins Onan pump, Bronze Centrifugal Pedestal Pump end only, no motor, with sealed Ball bearings, Flat Shaft, Bronze construction, Bronze impeller. Inlet Port is 3/8 Inch NPT Inlet, Discharge Port is 3/8 Inch NPT Outlet.

Price : $ 700.92



Product Information :

The Onan 132-0110 is an Onan engine cooling seawater pump, original equipment Cummins Onan pump, Bronze centrifugal pedestal pump end only, no motor, with sealed ball bearings, flat shaft, Bronze construction, Bronze impeller, and 3/8 Inch NPT Inlet by 3/8 Inch NPT Outlet Ports. This pedestal centrifugal pump has external independent sealed ball bearings isolated from the liquid being pumped. The ball bearings are grease sealed for life requiring no maintenance or bearing lubrication. The pump uses a mechanical type shaft seal with a Buna rubber element. It is suitable for water, oils, and some mild solvents and it is limited to 212 degrees F. This long-life centrifugal pump delivers high flows up to 9 GPM at 3500 RPM. These centrifugal pumps are not self-priming. They must be installed below the liquid level so that the liquid flows to the pump by gravity (flooded suction). However, if a foot valve is used at the beginning of the suction line, and all air is bled from the pump by manual priming, the pump will lift on the suction side up to 15 feet. Such a system relies entirely on the non-leaking foot valve for starting capability. This pump operates by liquid entering at the center and being thrown outward radially by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines. Consequently, a relief valve is not required.

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft Seal:
Buna-N/Ceramic Mechanical Seal
Port Size:
Inlet Port is 3/8 Inch NPT Inlet, Discharge Port is 3/8 Inch NPT Outlet.

Applications

Typical Applications for the 1320110 pump are for Engine Cooling. This pump is designed for and used on the following engines Onan Cummins MCCK 4.0KW and 6.5KW MDJF 15KW, and is actually the Oberdorfer model 50P15. The bronze body and stainless steel shaft are well suited for marine environments. Liquids contaminated with small solids or abrasives can be handled, but a reduction in mechanical seal life must be expected. This pump will pump continuously, producing high flow rates under lowhead conditions. This pump is designed for continuous lowpressure circulation and transfer of nonflammable liquids, and other generalpurpose pumping compatible with pump component materials where no suction lift or no selfpriming is required.
