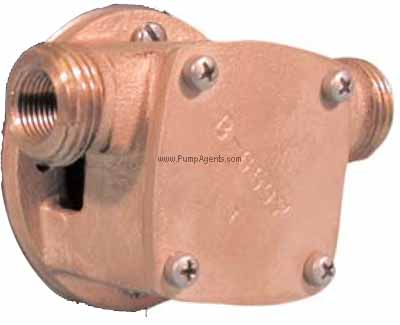

Oberdorfer # N201D-04 Bronze Rubber Impeller Pump end

Oberdorfer Pump N201D-04

Oberdorfer # N201D-04

Oberdorfer catalog # N201D-04, Bronze Flexible Impeller Pump end only, for mounting on a motor (motor is not included), Bronze construction, Buna impeller, Stainless Steel Shaft. Inlet Port is 3/8 inch FNPT and 3/4 inch male garden hose, Discharge Port is 3/8 inch FNPT and 3/4 inch male garden hose.

Price : $ 468.75

Qty :

2 Weeks (0 in stock)



Product Information :

The Oberdorfer N201D-04 is a Bronze Flexible Impeller Pump end only, for mounting on a motor (motor is not included) with a Buna Impeller, 3/8 inch FNPT and 3/4 inch male garden hose Ports, replacement pump end only without a Motor. This bronze pump is corrosion resistant, is constructed from marine quality bronze and stainless steel for ruggedness and reliability, and features a stainless steel shaft. Other features of this pump are a motor shaft slinger to protect the motor bearings, and rubber motor grommets for noise isolation. This Pump has one moving part - a tough, long-lived, wear-resistant flexible impeller lubricated by the liquid being pumped. No metal-to-metal pumping action - no gears to jam, clog or become noisy. These pumps are designed to be fully serviceable and after long use can be restored to like new condition, avoiding complete pump replacement. The impeller and cam are easily replaced. The Flexible Impeller in this pump generates high rubbing friction unless lubricated by the liquid being pumped. A lack of liquid will cause the impeller to degrade rapidly. Horizontal motor mountings, including sidewall mountings, are recommended. The pump can be mounted in any of 4 positions 90 degrees apart. Two screws attach pump to motor. Motor drive is clockwise facing pump end, and the liquid flow direction is right to left facing pump end. On initial start-up pump must be primed to prevent dry-running of the impeller. This pump is self-priming, and will self-prime at low or high speeds. It will pump instantly, and a suction lift of 3 feet is possible when impeller is wet and pump fully primed. Suction lines must be air tight in order for pump to self prime. A foot valve at the beginning of suction line is recommended.
WEIGHT : The Oberdorfer N201D-04 weighs 5 Lbs.

Features :

Pump Body:
Bronze
Impeller:
Buna
Shaft:
Stainless Steel
Port Size:
Inlet Port is 3/8 inch FNPT and 3/4 inch male garden hose, Discharge Port is 3/8 inch FNPT and 3/4 inch male garden hose.

Applications

This bronze pump is corrosion resistant, is constructed from marine quality bronze and stainless steel for ruggedness and reliability, and features a stainless steel shaft. Other features of this pump are a motor shaft slinger to protect the motor bearings, and rubber motor grommets for noise isolation. This Pump has one moving part a tough, longlived, wearresistant flexible impeller lubricated by the liquid being pumped. No metaltometal pumping action no gears to jam, clog or become noisy. These pumps are designed to be fully serviceable and after long use can be restored to like new condition, avoiding complete pump replacement. The impeller and cam are easily replaced. The rubber impeller in this pump generates high rubbing friction unless lubricated by the liquid being pumped. A lack of liquid will cause the impeller to degrade rapidly. Horizontal motor mountings, including sidewall mountings, are recommended. The pump can be mounted in any of 4 positions 90 degrees apart. Two screws attach pump to motor. Motor drive is clockwise facing pump end, and the liquid flow direction is right to left facing pump end. The correct D.C. voltage must be supplied to motor 12 volts DC as specified on the motor name plate. On initial startup pump must be primed to prevent dryrunning of the impeller. This pump is selfpriming, and will selfprime at low or high speeds. It will pump instantly, and a suction lift of 3 feet is possible when impeller is wet and pump fully primed. Suction lines must be air tight in order for pump to self prime. A foot valve at the beginning of suction line is recommended. The Temperature limits for the Neoprene impeller in this pump is 45 degrees F to 180 degrees F 7 degrees C to 82 degrees C. Pumping colder water than 45 degrees F will shorten the impeller life.
