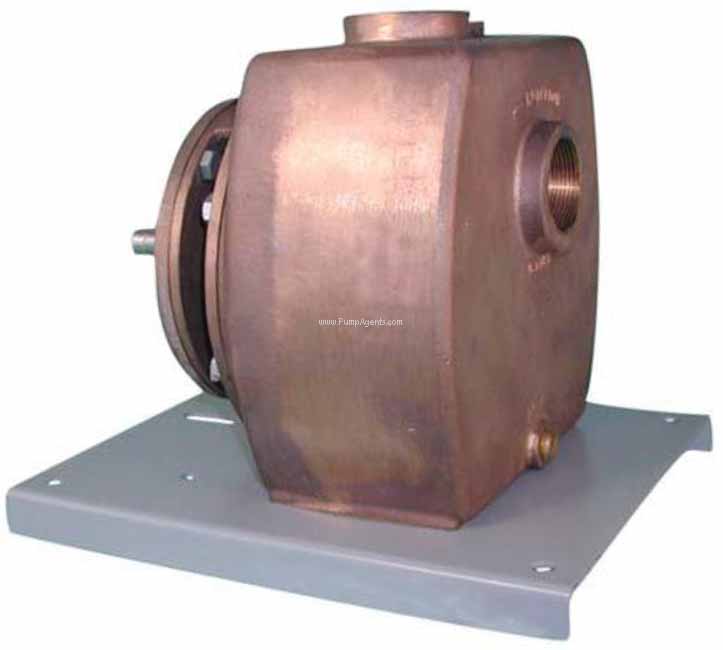

Oberdorfer # 75PBS10 Bronze Self-Priming Centrifugal pedestal Pump end

Oberdorfer Pump 75PBS10

Oberdorfer # 75PBS10

Oberdorfer catalog # 75PBS10, Bronze Centrifugal Pedestal Pump end only, no motor, with sealed Ball bearings, Bronze construction, Bronze impeller, Stainless Steel Shaft, FKM Viton/Ceramic Mechanical Seal. Inlet Port is 1-1/2 Inch NPT Inlet, Discharge Port is 1-1/2 Inch NPT Outlet.

Price : $ 2551.18

Qty :

Same Day (2 in stock)



Product Information :

The Oberdorfer 75PBS10 is a Bronze Centrifugal Pedestal Pump end only, no motor, with sealed Ball bearings with Bronze Impeller, FKM Viton/Ceramic Mechanical Seal, Stainless Steel shaft, 1-1/2 Inch NPT Inlet by 1-1/2 Inch NPT Outlet Ports, replacement pump end only without a Motor. This pump is a self priming pump with a suction lift of 15 feet without a foot or check valve (25 foot suction lift using a foot or check valve and a filled inlet line). It has a 1/2 inch pipe plug on the tank the top that is for the initial filling of the priming chamber and inlet line, and then the pump priming is automatic thereafter. This pump model is widely used for the pumping of Perchloroethylene, and is also ideal for marine service - air conditioning, bilge service, and sea water recirculating. It must be mounted in the horizontal position. This close-coupled pump end only requires a standard NEMA 56J Flange Jet Pump Motor with a weld-on base and threaded shaft end to accept the pump impeller. It requires a 3450 RPM, 1-1/2 HP motor. The pump uses a mechanical type shaft seal with a FKM Viton rubber element. It is suitable for oils, fuels, lubricants, most mineral acids, and many solvents that attack other rubbers such as Carbon Tetrachloride, toluene, benzene, and xylene. This long-life centrifugal pump delivers high flows up to 92 GPM with a maximum pressure of 35 PSI. This pump operates by liquid entering at the center and being thrown outward radially by centrifugal force. The impeller is not in contact with other pump parts resulting in quiet, efficient pumping action. The flow produced is not positive which permits the discharge line to be shut off completely without danger of overloading motors or bursting lines. Consequently, a relief valve is not required.

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft:
Stainless Steel
Shaft Seal:
FKM Viton/Ceramic Mechanical Seal
Port Size:
Inlet Port is 1-1/2 Inch NPT Inlet, Discharge Port is 1-1/2 Inch NPT Outlet.

Parts and Accessories for Oberdorfer model 75PBS10

Applications

There are many applications that the Oberdorfer 75PBS10 are used in. This pump is designed for continuous lowpressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications and other generalpurpose pumping compatible with Bronze and Viton pump component materials where suction lift or selfpriming is required. The special pump alloys used in this pump provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Viscous liquids with a maximum viscosity of 2000 Saybolt Seconds Universal can be pumped, however, when pumping viscous liquids as compared with water, a reduction in flow and pressure occurs and the required horsepower rate increases. Liquids heavier than water require additional horsepower in direct proportion to the increase in specific gravity. Liquids contaminated with small solids or abrasives can be handled, but a reduction in mechanical seal life must be expected. This pump will pump continuously, producing high flow rates under lowhead conditions.
