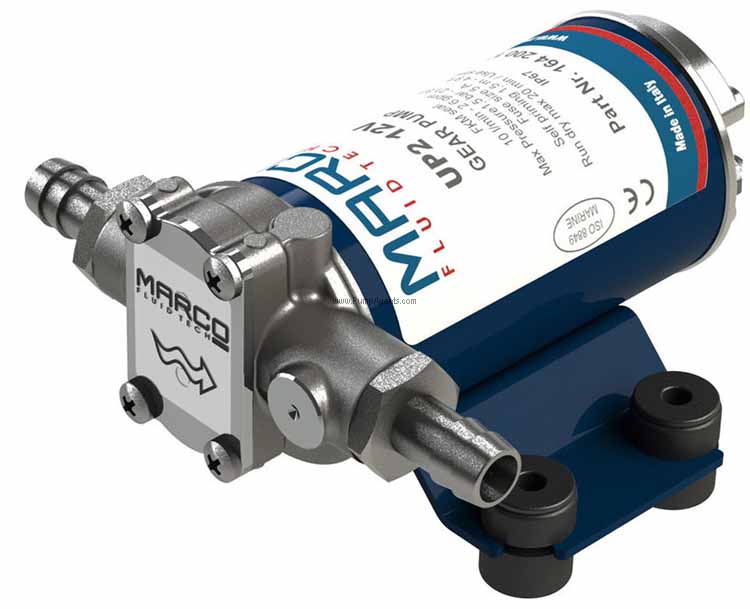

Marco # UP2-24V Bronze Gear Pump 10 L/Min
Marco # UP2-24V
Marco catalog # UP2-24V, Bronze Gear Pump, rated for 2.64 GPM (10 l/min), nickel-plated brass construction, helical bronze gears, stainless steel Shaft. Motor is 24 Volts DC. Motor has IP 67 Protection. Inlet Port is 3/8 inch BSP, Discharge Port is 3/8 inch BSP. Catalog # M164-200-13.
Price : $ 191.48
Product Information :
The Marco UP2-24V is a nickel-plated brass Bronze Gear Pump, rated for 2.64 GPM (10 l/min), with helical Bronze gears, 3/8 inch BSP Ports, coupled to a 24 Volts DC Motor. This self-priming electric pump can be used for the transfer of many different liquids of a varied nature. It is an ISO 8846 Compliant Device. The pump is self priming to 5 feet (1.5 m). The pumping elements are made up of bronze gears which can run dry for brief periods. It comes equipped with an in-line filter on the inlet side. The pump can be mounted in any position. Fix the pump with suitable diameter screws corresponding to the holes on the feet/base. There are numerous fields of applications for the pump, however DO NOT pump FLAMMABLE LIQUIDS with this pump. THE MOTOR IS NOT EXPLOSION PROOF. Do not install the pump where flammable vapors or gases may be present. The pump can operate on a continuous cycle if it does not exceed the maximum pressure and temperature limits. Always mount the anti vibration rubber fittings supplied with the pump. Their usage ensures a consistent reduction in noise and vibration levels. The pump can operate on a continuous cycle if it does not exceed the maximum pressure and temperature limits. The maximum temperature for this pump is 185 degrees F.
WEIGHT : The Marco UP2-24V weighs 2.6 Lbs.
Features :
Applications
Typical applications for the UP224V include the transfer of diesel fuel between tanks, refuelling of tractors and earth moving equipment, transfer of water, transfer of light weight lube oils, antifreeze. To ensure the correct directional flow of the fluid as indicated by the arrow on the top plate, it is necessary to connect the positive pole of the battery supply to the red wire on the motor endcap and the negative pole to the black wire. Electrical connections must be made using adequate terminal blocks and connectors ensuring a tight fit of the electrical cables. Bad wiring can cause power losses and/or over heating of the cabling it self. The IP67 rating of the motor provides complete protection against ingress of dust and airborne particles, as well as protection against water and liquids, up to and including immersion in up to one meter of water.
