Marco # 164-061-1C Gear Pump Ptfe 28 L/Min

Marco Pump 164-061-1C

Marco # 164-061-1C

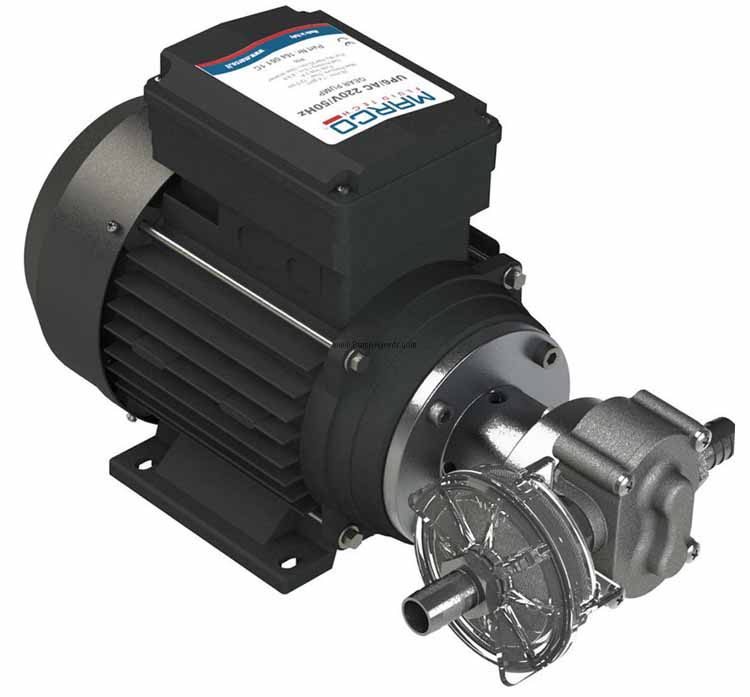

Marco catalog # 164-061-1C, Self Priming Gear Pump and Motor unit, rated for 7.40 GPM (28 l/min), nickel-plated brass construction, helical PTFE gears, stainless steel Shaft. Motor is 220 Volts AC, Single Phase. Motor has IP 55 Protection. Inlet Port is 1/2 inch BSP, Discharge Port is 1/2 inch BSP. Catalog # UP6/AC(220V).

Price : $ 652.61

Qty :

2 Weeks (0 in stock)



Product Information :

The Marco 164-061-1C is a nickel-plated brass Self Priming Gear Pump Ptfe, rated for 7.40 GPM (28 l/min), with helical PTFE gears, 1/2 inch BSP Ports, coupled to a 220 Volts AC, Single Phase Motor. This self-priming electric pump can be used for the transfer of many different liquids of a varied nature. The pump is self priming to 5 feet (1.5 m). The pumping elements are made up of bronze gears which can run dry for brief periods. It comes equipped with an in-line filter on the inlet side. The pump can be mounted in any position. Fix the pump with suitable diameter screws corresponding to the holes on the feet/base. There are numerous fields of applications for the pump, however DO NOT pump FLAMMABLE LIQUIDS with this pump. THE MOTOR IS NOT EXPLOSION PROOF. Do not install the pump where flammable vapours or gases may be present. The pump can operate on a continuous cycle if it does not exceed the maximum pressure and temperature limits. The maximum temperature for this pump is 104 degrees F.
WEIGHT : The Marco 164-061-1C weighs 17 Lbs.

Features :

Pump Body:
nickel-plated brass
Impeller:
helical PTFE gears
Shaft:
stainless steel
Port Size:
Inlet Port is 1/2 inch BSP, Discharge Port is 1/2 inch BSP.
Motor Specs :
220 Volts AC, Single Phase. Amp draw is 1,7 amps at 550 watts

Applications

Typical applications for the 1640611C include the transfer of diesel fuel between tanks, refuelling of tractors and earth moving equipment, transfer of water, transfer of light weight lube oils, antifreeze. To ensure the correct directional flow of the fluid as indicated by the arrow on the top plate, it is necessary to connect the positive pole of the battery supply to the red wire on the motor endcap and the negative pole to the black wire. Electrical connections must be made using adequate terminal blocks and connectors ensuring a tight fit of the electrical cables. Bad wiring can cause power losses and/or over heating of the cabling it self. The IP55 rating of the motor provides protection against dust ingress that could be harmful for the normal operation of the product but is not fully dust tight, as well as protection against solid objects and water jets projected by a nozzle.
