Little Giant # 1-EA-42 Submersible Industrial Pump 1/125 HP

Little Giant Pump 1-EA-42

Little Giant # 1-EA-42

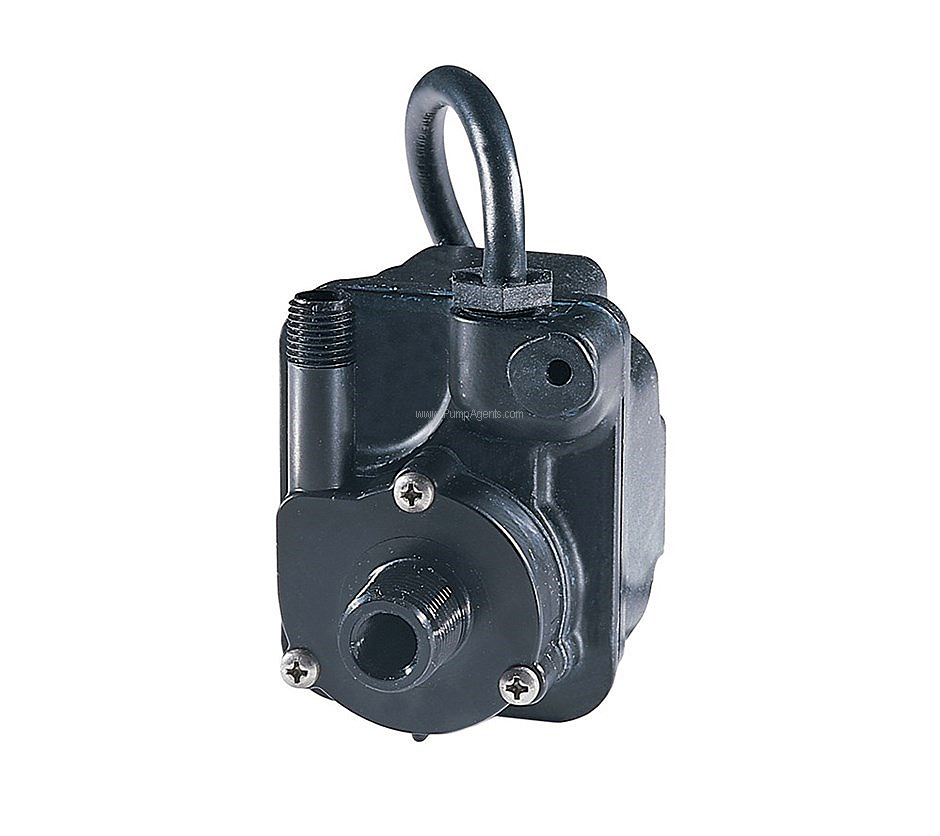

Little Giant catalog # 1-EA-42, Catalog # 518087, Small Submersible Industrial Pump, Dual purpose, oil-filled pump, for Submersible or in-line use, rated for 170 GPH gallons per hour at 1 foot of head open flow. Motor is 1/125 Horsepower, 115 Volts, Single Phase. Motor has a 10 foot cord. Inlet Port is 1/2 inch MNPT and 1/4 inch FNPT, Discharge Port is 1/4 inch MNPT.

Price : $ 142.50

Qty :

5 Days (direct from Little Giant)



Product Information :

The Little Giant 1-EA-42 is a catalog # 518087, Small Submersible Industrial Pump, Dual purpose, oil-filled pump, for Submersible or in-line use, rated for 170 GPH gallons per hour at 1 foot of head open flow, with a 1/2 inch MNPT and 1/4 inch FNPT inlet port by 1/4 inch MNPT outlet port, coupled to a 1/125 Horsepower, 115 Volt, single phase Motor that has a 10 foot cord. This is a dual purpose epoxy encapsulated pump that may be used totally submersed or in-line (fed with pipe of hose). For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants and many other applications where liquid must be transferred of recirculated. This compact 170 GPH pump features a 1/4" MNPT discharge and 7' shut-off head capability. The pump's housing is made from glass-filled polyester; its cover, epoxy coated cast aluminum; its volute and impeller, Nylon; and its shaft seal, Viton. It has a maximum flow rate of 170 GPH at 1 foot, a maximum head of 7 feet, and a maximum liquid temperature of 120 F. It uses a 1/2 inch MNPT and 1/4 inch FNPT intake, and a 1/4 inch MNPT discharge. It requires 115 V at 60 HZ, and it uses a 1/125 HP epoxy encapsulated motor. This pump is designed specially to be used in either submersible or in-line applications. It uses an epoxy-encapsulated motor and thermal overload protections. It has a 7 foot maximum lift capacity, and a 1/4 inch MNPT discharge. It requires 36 watts to operate
WEIGHT : The Little Giant 1-EA-42 weighs 3.17 Lbs.

Features :

Port Size:
Inlet Port is 1/2 inch MNPT and 1/4 inch FNPT, Discharge Port is 1/4 inch MNPT.
Motor Specs :
1/125 Horsepower, 115 Volts, Single Phase. that has a 10 foot cord.

Applications

There are many applications that the Little Giant 1EA42 are used in. Typical applications for this pump include Water transfer or recirculation, water displays, and machine tool coolants.

This pump may be used submerged or inline. It may be positioned at any attitude, but preferably with the volute located down or to the side. The weight of the pump must be supported adequately. DO NOT support the pump by the discharge connection alone. The pump may be supported by using the two mounting holes in the back of the pump. These holes accept 8 selftapping screws. Hole depth is.37" DO NOT exceed the hole depth. Do not restrict the intake side of the pump. This may cause damage to the seal and may starve the pump. For reduced flow rates, place a valve on the discharge side of the pump, or if flexible vinyl tubing is used a clamp on the tubing to restrict the flow. Do not let the unit operate dry. It is cooled by pumping fluid. You may damage the seal and the motor may fail if the pump is allowed to run dry. If the unit is going to be idle for a period of time, follow the cleaning instructions outlined in the usr manual. Do not let the unit freeze, as this may cause cracking or distortion that may destroy the unit
