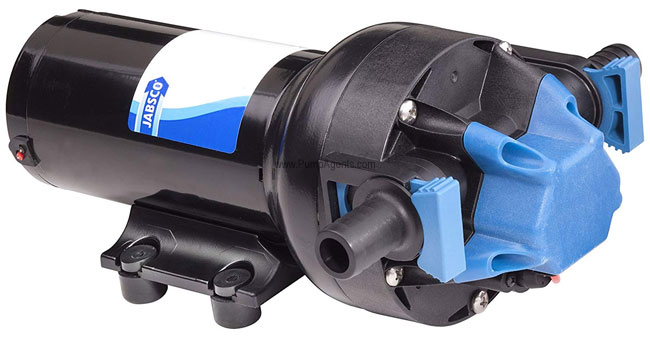

Jabsco catalog # 82400-0294, Par-Max Plus 4.0 GPM Water Pressure System Pump and Motor unit. Glass Filled Polypropylene Construction, with a Santoprene Diaphragm and EPDM Check Valves. Pump is Coupled to a 24 Volt DC Motor. Pressure switch turns off at 40 PSI. Ports are 1/2 Inch.
Price : $ 202.45
The Jabsco 82400-0294 is a 4 GPM glass filled polypropylene diaphragm pump with a Santoprene Diaphragm, EPDM Check Valves, 1/2 Inch Ports, coupled to a 24 Volt DC Motor. This PAR-Max Plus Pump has a flow rate of 4.0 GPM, is self-priming up to 10 feet (3m) and can run dry without damage. The high pressure capability of the new Jabsco PAR-Max Plus Series Water Pressure Pumps provides exceptional flow and consistent water pressure to easily handle the demand of multiple outlets at one time. All PAR-Max Plus models include soft rubber mounts and quick-connect fittings for ease of installation. It was designed with mid-sized to larger boats in mind. It provides a smooth flow, quieter running, and a longer life due to its sealed switch design and co-molded diaphragm, which eliminate leak paths. Service up to five outlets with smooth flow and hassle-free operation. The patented PAR-Max Plus co-injected molded diaphragm and larger heavier duty motor brushes significantly extend pump life up to 50 percent longer than existing Jabsco PAR-Max Series diaphragm pumps. It's manufactured from corrosion resistant materials, capable of handling the harshest marine environments. Available in both 12 or 24 volt DC versions, the PAR-Max Plus series water pressure pumps are certified to EN ISO 8846 Marine (Ignition Protection). Jabsco PAR-Max Series Water Pressure Pumps are simple, quiet, easy to maintain, and provide hot or cold water at the turn of a tap. They're also versatile enough to produce a full flow or a trickle, according to need. These diaphragm pumps provide smooth flow with good pressure. Simply choose a model suitable for the number of outlets on your boat.
This pump is not For Continuous Duty, this pump is for Intermittent Duty Only.
Automatic pressure switch, tested over 4 million cycles without failure.
Quick-disconnect ports allow for adjustability and ease of installation.
Jabsco's robust electric diaphragm pump design, proven with over 7 million units in service
Quick disconnect ports, allow for ease of installation in hard to reach places
Improved noise dampening rubber feet, significantly minimize vibration when mounted against hard surfaces
Certified to EN ISO 8846 Marine .
Other Parts :
Catalog # 18916-1040, Pressure Switch, 40 PSI
Price: $ 39.09
Pressure controlled diaphragm pumps provide boat owners with a fresh water system that is as easy to use as their domestic water supply with the versatility to offer full flow or a trickle. The pump is controlled by a switch which senses the pressure drop when a faucet is opened and activates the pump; it turns off when the system pressure builds to a preset limit as the faucet is closed. This system allows any type of faucet or shower valve to be fitted, from 3/8 Inch bore for minimum water use to 1/2 Inch bore for maximum flow. Choosing the pump for your needs is simple just check your system size and the number of outlets you need to operate simultaneously and select the appropriate pump. Diaphragm pumps are selfpriming, quiet in operation and can run dry for extended periods. It is always best to turn the pump off and then open a tap to depressurize the system when you are not using the boat, as this will prolong pump life.
