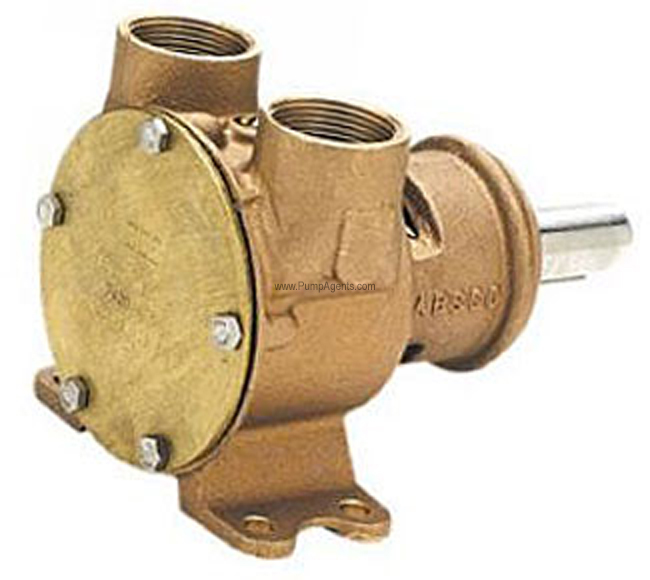

Jabsco # 7420-1001 - Rubber Impeller Pump

Jabsco Pump 7420-1001

Jabsco # 7420-1001

Jabsco catalog # 7420-1001, Rubber Impeller Pump, Caterpillar Pump, Pedestal Pump Only. 1/4" inch NPT Internal Ports.

Price : $ 701.10

Qty :

Same Day (19 in stock)

Click Here for PARTS



Product Information :

Features :

Pump Body:
Bronze
Impeller:
Neoprene Impeller
Shaft:
Carbon/ceramic face type
Port Size:
Carbon/ceramic face type
Motor / Amp Draw:
Horsepower, ,

Parts and Accessories for Jabsco model 7420-1001


Major Overhaul Kit / Rebuild Kit :

Catalog # 7420-1001MJK, Major Repair kit for Jabsco Pump # 7420-1001. Includes the following parts : (1) WEARPLATE 2574-0000, (1) ENDCOVER 12062-0000, (1) GASKET 816-0000, (1) SLINGER 3181-0000, (1) BALL BRG 92600-0040, (1) RETAINING RING 18711-0000, (1) RING 18712-0000, (1) IMPELLER 17935-0001 , (1) LIP SEAL 818-0000, (6) SCREW 91005-0040, (1) KEY 9214-0001, (1) LIP SEAL 817-0000, (1) SEAL 6407-0010, (1) CAM 1/2 01-42755, (2) 1/4" PIPE PLUG 92650-0070.

Price: $ 526.02

Qty :

Can Ship : 2 Weeks (0 in stock)


Minor Service Kit :

Catalog # 7420-1001MNK, Minor Repair kit for Jabsco Pump # 7420-1001. Includes the following parts : (1) GASKET 816-0000, (1) IMPELLER 17935-0001, (1) SEAL 6407-0010.

Price: $ 134.40

Qty :

Can Ship : 2 Weeks (0 in stock)


Impeller :

Catalog # 17935-0001-P, IMPELLER KIT, NEOPRENE

Price: $ 57.77

Qty :

Can Ship : Same Day (227 in stock)


Shaft Seal :

Catalog # 6407-0010, Seal

Price: $ 52.28

Qty :

Can Ship : Same Day (20 in stock)


Other Parts :

Catalog # 816-0000, Gasket

Price: $ 6.92

Qty :

Can Ship : Same Day (133 in stock)

Applications

Flow rate Nominal 200 Litres/min 44.4 gallons/min at 1500rpm Selfpriming from dry up to 2.4m 7.8ft

Features • Constructed from marine quality bronze and stainless steel for ruggedness and reliability. • Easy to service and maintain. • Inexpensive to buy and operate. • Will tolerate abrasive wear this may affect performance seek advice from your distributer. • Handles hard and soft solids without clogging. • Can pump in either direction. • Will not airlock. Applications MARINE Pumping bilges, Washdown, Engine Cooling.; INDUSTRIAL Circulating and Transferring liquids, Velocitymixing; Transferring soap, liquors, pastes, glues, glycerine, lotions and brine.; FARM Pumping water for stock and poultry houses and Booster Pumping.; PLUMBING & HOME Pumping out flooded basements, cesspools, sumps and many other uses.;
