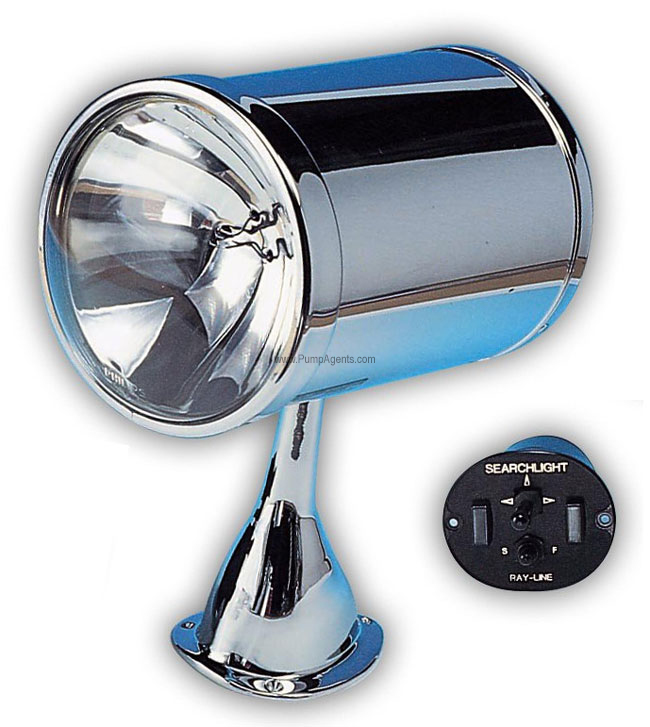

Jabsco # 62040-4006 Electric Remote Control 7 Inch Searchlight
Jabsco # 62040-4006
Jabsco catalog # 62040-4006, Electric Remote Control 7 Inch Searchlight. Searchlight is 24 Volt DC.
Price : $ 1518.40
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 62040-4006 is a 24 Volt DC, Electric Remote Control, 7 Inch Searchlight. The 7 Inch (180mm) model produces a mighty 230,000 candlepower and 1 lux at 1380' (418m). Made of heavily chromed brass for a classic look, it comes complete with a water-resistant, dual-speed control panel. This is a remote mounting searchlight electrically controlled from helm station for leisure, commercial and patrol crafts. The advantage of the remote control is that it allows you to direct the light in the best location for maximum effectiveness. They are an increasingly popular addition on power boats, helping locate buoys, moorings and channel markers. Control is by joystick or touchpad. Secondary remote control kits can be bought for most models, which allow control from either the flybridge or main helm.
Features :
Product Specs :
Complete drive unit enclosed in light housing.
Single control lever for vertical and horizontal movement.
Dual speed control for precise beam movement.
On-off Spot only on 7 Inch and 8 Inch models.
Exclusive Clutch-A-Matic feature protects drive unit against overload. Can operate for extended periods against limit stops without harm. Light head may be moved manually without damage to the drive unit.
Internal brake system holds beam firmly on target.
Includes control with on-off, dual speed control, and single control for vertical and horizontal movement.
Single joystick controls both 70 degrees vertical and 450 degrees horizontal sweep.
Variable speed control enables fast search and yet precise targeting.
Internal brake system holds beam firmly on target.
Heavily chromed all brass beam housing and base unit.
8' wiring cable, with optional extension cables.
Parts and Accessories for Jabsco model 62040-4006
Applications
A marine searchlight has to be capable of performing a range of tasks from locating buoys to illuminating a narrow channel and, occasionally, searching for a man overboard. Therefore, it needs to be designed to offer the best combination of beam spread and intensity for both shorter and longer range work. Typically, our spot beams have a 7 degree beam spread as opposed to 40 degrees on a flood beam and will consequently reach at least 3 times further. We quote performance of our searchlight range in two ways candlepower and lux. Candlepower is a useful guide to actual light produced, but does not measure the efficiency of reflector design to project that light at the target. The most relevant comparison guide is lux, which is the measurement of actual light available at a given distance. In order to be able to distinguish a reasonable level of detail, a level of one lux is generally considered to be necessary.
