Jabsco # 53080-2103 General Purpose Utility Pump
Jabsco # 53080-2103

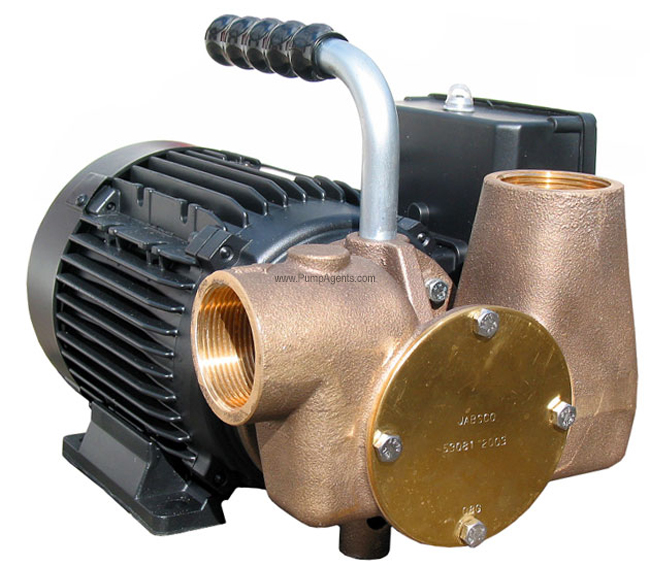

Jabsco catalog # 53080-2103, General Purpose Utility Pump and Motor unit. Bronze Construction, with a Nitrile Impeller and Nitrile/Carbon/Ceramic Mechanical Seal. Pump is Close Coupled to a 1450/1740 RPM, 100/115 Volts Motor. Ports are 1-1/2 Inch BSP threaded.
Price : $ 1312.26
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 53080-2103 is a bronze Flexible Impeller pump with a Nitrile Impeller, Nitrile/Carbon/Ceramic Mechanical Seal, 1-1/2 Inch BSP threaded Ports, coupled to a 1450/1740 RPM, 100/115 Volts, 50/60 HZ Motor. This Pump has an integral fluid reservoir to protect pump against dry running for up to 30 minutes. The motor is 4 Pole, single phase, 550 Watt, AC. Face and Foot mounting B3-B14. Enclosure IP55, Frame size 80 all IEC 72 standard. Fitted with manual reset thermal overload. Jabsco bronze bodied AC motor pumps are self-priming, portable and versatile, making them ideal for a wide range of applications wherever AC power is available.
Features :
Product Specs :
Self primes from dry up to 9.8 feet
Flows up to 21 gal per minute
Pressure up to 29 psi
Handles hard or soft solids
Tolerates abrasive wear
Non pulsating flow
Handles viscosities up to 500 centiPoise
Uses standard IEC motor
Dry running capability for 30 minutes without damage to pump
Parts and Accessories for Jabsco model 53080-2103
Impeller :
Catalog # 14282-0003, Impeller, Standard Pressure - Nitrile
Price: $ 114.15
Applications
Typical Applications for this pump are Sump emptying and cellar drainage, Sewage tank emptying, Product transfer, Mains boosting, Shallow well pumping, Water sampling, Washdown systems, Silo pumpout on farms, and Dockside pumpout of toilets.
