Jabsco # 52580-9003 Bare Shaft Pedestal Flexible Impeller Pump

Jabsco Pump 52580-9003

Jabsco # 52580-9003

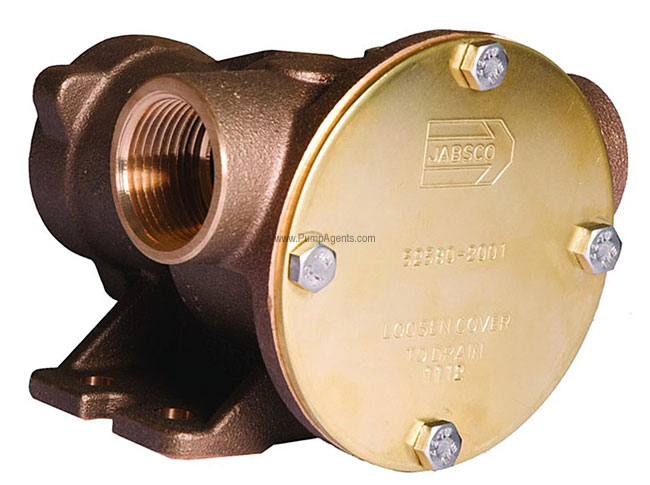

Jabsco catalog # 52580-9003, Bare Shaft Pedestal Flexible Impeller Pedestal Pump, bare shafted pedestal pump end only without a Motor. Bronze Construction, with a Nitrile Impeller and Carbon/Ceramic Mechanical Seal. Ports are 1 Inch NPT.

Price : Contact Us

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

The Jabsco 52580-9003 is a bronze Flexible Impeller pump with a Nitrile Impeller, Carbon/Ceramic Mechanical Seal, 1 Inch NPT Ports, bare shafted pedestal pump end only without a Motor. This pump has a nominal flow rate of 80 Litres/min (17.8 gallons/min) at 1500rpm, and primes at low or high speeds. For a vertical dry suction lift of 10 feet (3.0mm), a minimum of 800 RPM is required. Pump will produce suction lift of up to 22 feet (6.7m) when wetted. Be sure suction lines are airtight or pump will not self-prime. The Neoprene impeller in this pump is good for water and general-purpose pumping, if there is any oil in the water please use the Nitrile impeller - see parts list. The Temperature limits for the Nitrile impeller in this pump : 45 degrees F to 180 degrees F (7 degrees C to 82 degrees C). These Jabsco Flexible Impeller Pumps for commercial duty are fitted with proven quality mechanical seals, providing long life under exacting conditions. Bearings are spaced to allow higher speeds, without jeopardizing life, and the open design allows debris to pass through the pump without affecting flow or reliability. All Jabsco pumps are easily maintained using ordinary hand tools. Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pump's intake and discharge ports. Pump is normally assembled at factory for clockwise rotation (looking at end cover). This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components.

Features :

Pump Body:
Bronze
Impeller:
Nitrile
Shaft Seal:
Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 1 Inch NPT

Product Specs :

17.8 GPM flow at 10 foot head and 1500 rpm.

Self-priming up to 15' vertical lift.

Space sealed for life bearings.

Mechanical seal.

Constructed from marine quality bronze and stainless steel.

Easy to service and maintain.

Will tolerate abrasive wear.

Handles hard and soft solids without clogging.

Can pump in either direction.

Will not airlock.


Parts and Accessories for Jabsco model 52580-9003

Applications

These flexible impeller pumps are selfpriming and therefore, are ideal for engine cooling, washdown, circulation and many general purpose onboard or dockside applications. The bronze bodies and stainless steel shafts are well suited for marine environments. They can operate in either rotational direction. Typical Applications for this pump include Engine cooling, bilge pumping, washdown and deck flooding, ballast transfer, general purpose pump, fire fighting. Circulation and transfer of water, sump drainage, cellar drainage, emergency pumping. Waste water removal, shallow well pump, ditch drainage. This flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. It operates at low or high speeds, can be mounted at any angle and pumps in either direction with equal efficiency.
