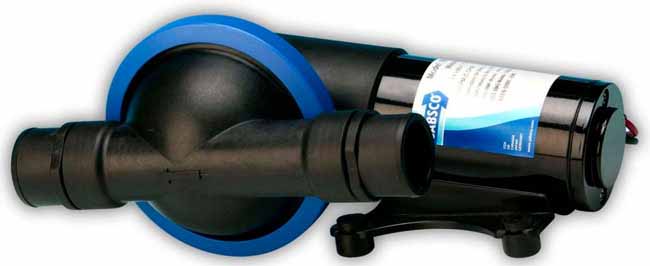

Jabsco catalog # 50890-1100, Diaphragm Waste Pump and Motor unit. Pump is Coupled to a 24 Volt DC Motor. Ports are 1-1/2 Inch ID hose barb.
Price : $ 364.41
The Jabsco 50890-1100 is a diaphragm waste pump with 1-1/2 Inch ID hose barb Ports, coupled to a 24 Volt DC Motor. This super quiet and compact pump has a straight-through waste path that easily passes solids in suspension, making it the ideal solution for emptying holding tanks. Self-priming up to 10 feet (3m) and capable of extensive dry running, it provides a 5 GPM (19 LPM) output. This robust diaphragm pump passes solids and is particularly effective in emptying holding tanks. The multi-positional pump head offers a variety of installation options. If mounted vertically the motor should be above the pump head. Use rubber grommets provided to absorb vibration. Plumbing Connections: Use 1-1/2 Inch ID, non-collapsible waste type suction hose. Connect the hose to inlet and outlet of pump using two stainless steel hose clamps at both ends. All suction connections must be airtight and free of sharp bends or restrictions. The dc motor on this pump unit is suitable for intermittent duty and should not be run for more than 30 minutes continuously.
Do not use this pump for petrol, petroleum products or any products with a flash point below 37 degrees C .
The Jabsco Waste Pump is self priming up to 3m .
5 GPM output.
Capable of extensive dry running.
Uses multi positional ports for easy mounting of the pump.
Compact and simple design.
Complies with USCG 183.410 and ISO 8846 MARINE .
ISO 8849 MARINE .
Meets BSEN 50081 .
Major Overhaul Kit / Rebuild Kit :
Catalog # SK890, Service Kit, with Cover, Waste Pump Joker Valves, Washer
Price: $ 35.18
Typical applications include Waste Pump for sink, shower and black waste. Maintenance Check all electrical connections periodically, particularly in salt water areas. Corrosion can cause loss of performance or nonoperation in extreme cases. The motor should be protected with a corrosion inhibiting spray and any rust should be removed and the motor repainted.
