Jabsco # 50860-2012 Cyclone Centrifugal Pump

Jabsco Pump 50860-2012

Jabsco # 50860-2012

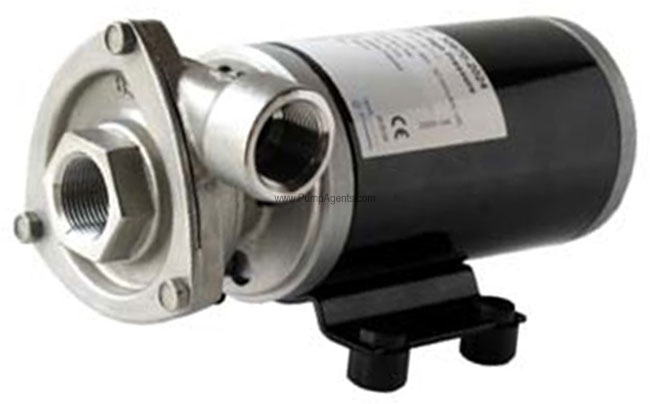

Jabsco catalog # 50860-2012, Cyclone High Pressure Centrifugal Pump and Motor unit. Stainless Steel Construction. Pump is Close Coupled to a 12 Volt DC Motor. Ports are 3/4 Inch BSP.

Price : $ 438.15

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

The Jabsco 50860-2012 is a stainless steel centrifugal pump with a 3/4 Inch BSP Ports, coupled to a 12 Volt DC Motor. The High Pressure Cyclone is a long-life pump that delivers flows of up to 21 GPM (80 LPM) and pressures up to 17 psi (1.2 bar), making it ideal for general transfer and circulation duties for water and mild chemicals where more restrictions are present. It can be used in conjunction with trigger nozzles. Jabsco circulation pumps are designed for reliability and ease of use. Centrifugal pumps are the correct product for closed-circuit circulation systems, such as livewell circulation, washdown, central heating and other flooded suction applications. The Cyclone can be mounted on any flat surface. The pump must be installed below the lowest fluid level to maintain flooded suction. This pump can be run dry for short periods of time, and it can be run against a closed discharge.

Features :

Pump Body:
Stainless Steel
Port Size:
Ports are 3/4 Inch BSP

Product Specs :

21 GPM maximum flow.

Recommended Duty - Max. 30 minutes on, Min. 30 minutes off.

Motor life 2500 hours

2m suction lift when wet

Fluid Temperature +4 degrees C min +95 degrees C max

Heavy duty robust design

Long life DC motor

Silent running

Robust stainless steel body and anti-clogging design impeller.

Long life mechanical seal

Only one tool needed for all servicing.

Complies with USCG 183.410 and ISO 8846 MARINE .

ISO 8849 MARINE .


Parts and Accessories for Jabsco model 50860-2012


Impeller :


Shaft Seal :

Applications

This is a robust, longlife Stainless Steel General Purpose Centrifugal circulation pump, with high efficiency and flow, designed specifically for the marine and industrial markets. Typical applications would be for circulation applications such as hot and cold water systems, windscreen washing, livewell and bait tank systems and liquid transfer. These circulation pumps can be used in low pressure circulation applications such as marine central heating systems where they can be used to circulate heated coolant water heater from an engines recirculating fresh water system through radiators in the vessel living spaces. These Pump may be run dry for short periods of time. Pump may be run against a closed discharge. If mounted vertically, ensure the motor is above the pump head. Use 3/4 Inch pipe fittings with PTFE pipe joint tape or compound.
